19 inch M190CGE-L23 1440x900 LCD Screen With VGA USB HDMI LCD Controller Board
19 inch M190CGE-L23 1440x900 LCD Screen With VGA USB HDMI LCD Controller Board
19 inch M190CGE-L23 1440x900 LCD Screen With VGA USB HDMI LCD Controller Board
19 inch M190CGE-L23 1440x900 LCD Screen With VGA USB HDMI LCD Controller Board
19 inch M190CGE-L23 1440x900 LCD Screen With VGA USB HDMI LCD Controller Board
19 inch M190CGE-L23 1440x900 LCD Screen With VGA USB HDMI LCD Controller Board
19 inch M190CGE-L23 1440x900 LCD Screen With VGA USB HDMI LCD Controller Board
19 inch M190CGE-L23 1440x900 LCD Screen With VGA USB HDMI LCD Controller Board
19 inch M190CGE-L23 1440x900 LCD Screen With VGA USB HDMI LCD Controller Board
19 inch M190CGE-L23 1440x900 LCD Screen With VGA USB HDMI LCD Controller Board
19 inch M190CGE-L23 1440x900 LCD Screen With VGA USB HDMI LCD Controller Board

19 inch M190CGE-L23 1440x900 LCD Screen With VGA USB HDMI LCD Controller Board

Model NO.
K002130-VS-V59AV-V2+M190CGE-L23 1440X900
Quantity:

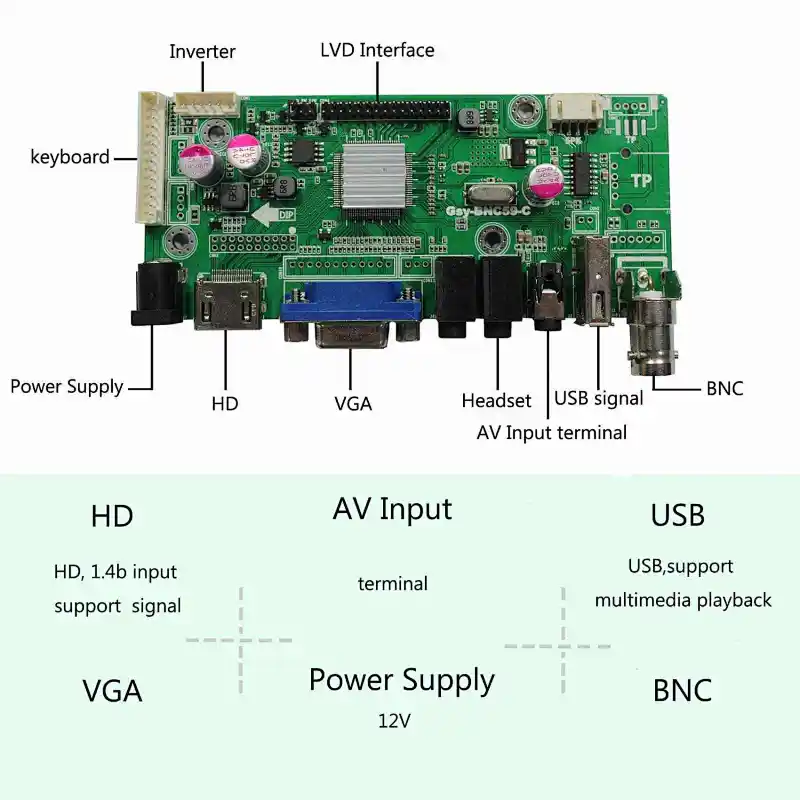

LCD Controller Board:
HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
USB Support Video
AV1 AV2 Compatible With PAL And NTSC
Video Input: HDMI VGA AV1 AV2 USB
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

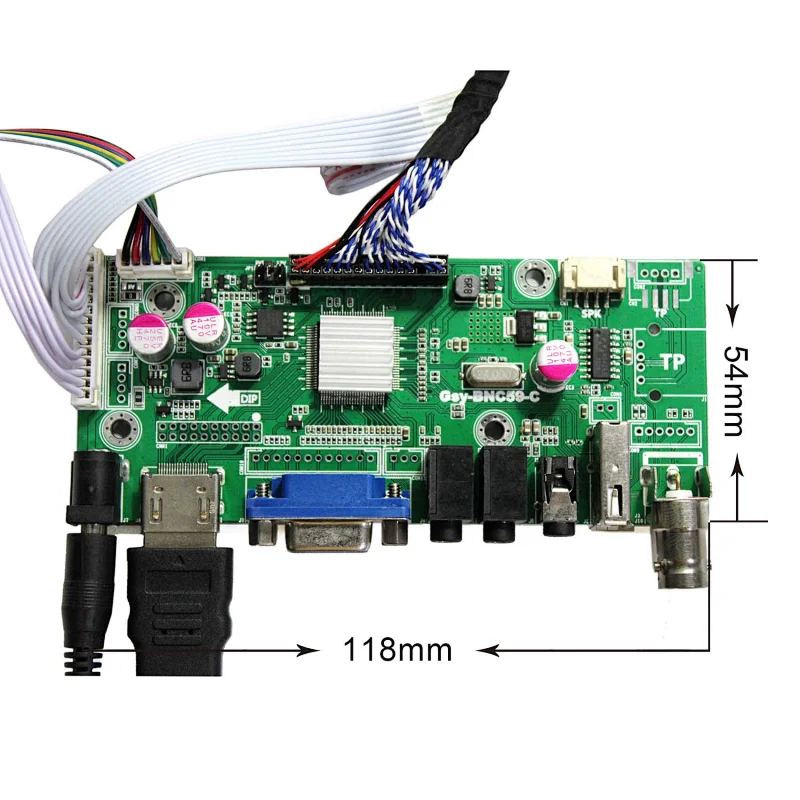

Board Size: 118mm x 54mm x 17mm
19" 1440X900 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1440RGB)×900
Outline Size 428 × 278×11 (H×V×D)
Display Area 408.2 × 255.1 (H×V)
Brightness300 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit) , 30 pins ,Connector
Backlight WLED
Input Voltage 5.0V (Typ.)

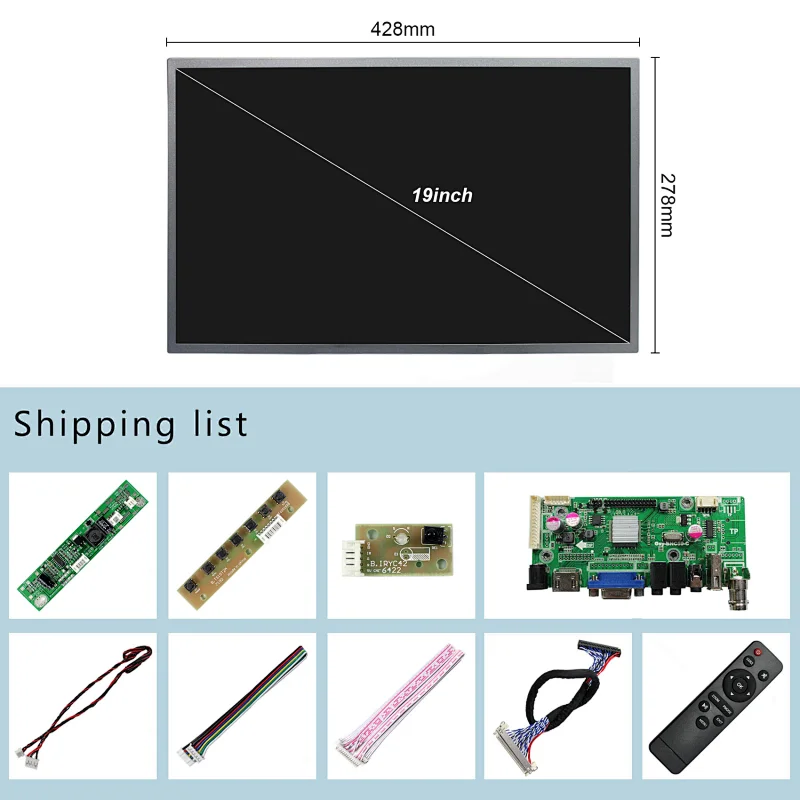

Packing list:
1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
19inch 1440X900 LCD Screen
 Converter Board
 30PinLVDS Cable
 Keyboard With Cable
1× Remote Control (Battery Not included)
