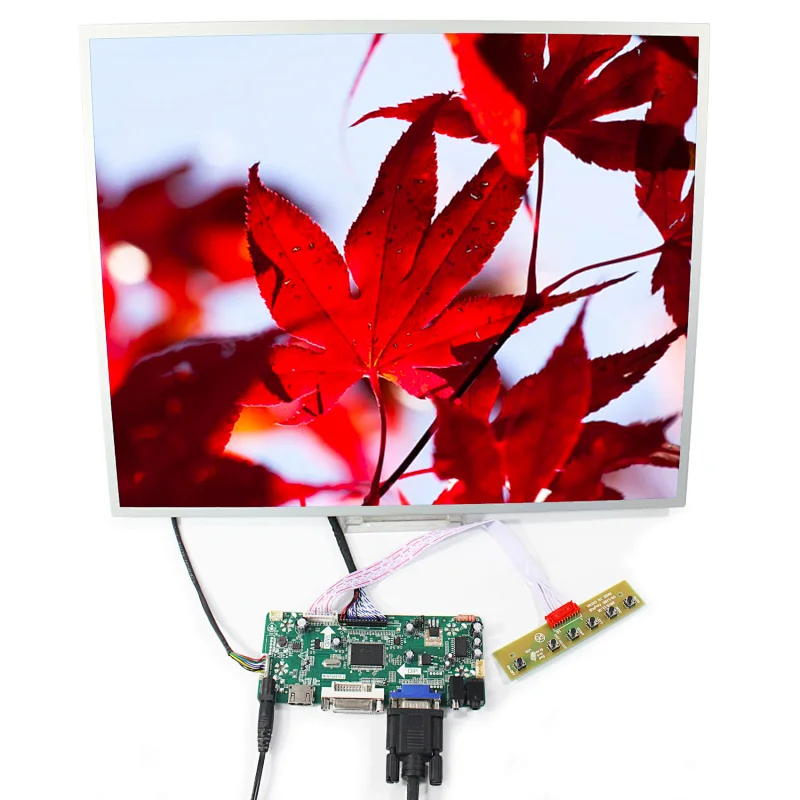

19" LQ190E1LW61 1280X1024 TFT-LCD Screen With HDMI DVI VGA LCD Controller Board 19inch LQ190E1LW61 1280X1024 19inch LQ190E1LW61 LQ190E1LW61 1280x1024 LQ190E1LW61

Model NO.
K002347-M.NT678676 + LQ190E1LW61 1280X1024
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1 piece
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

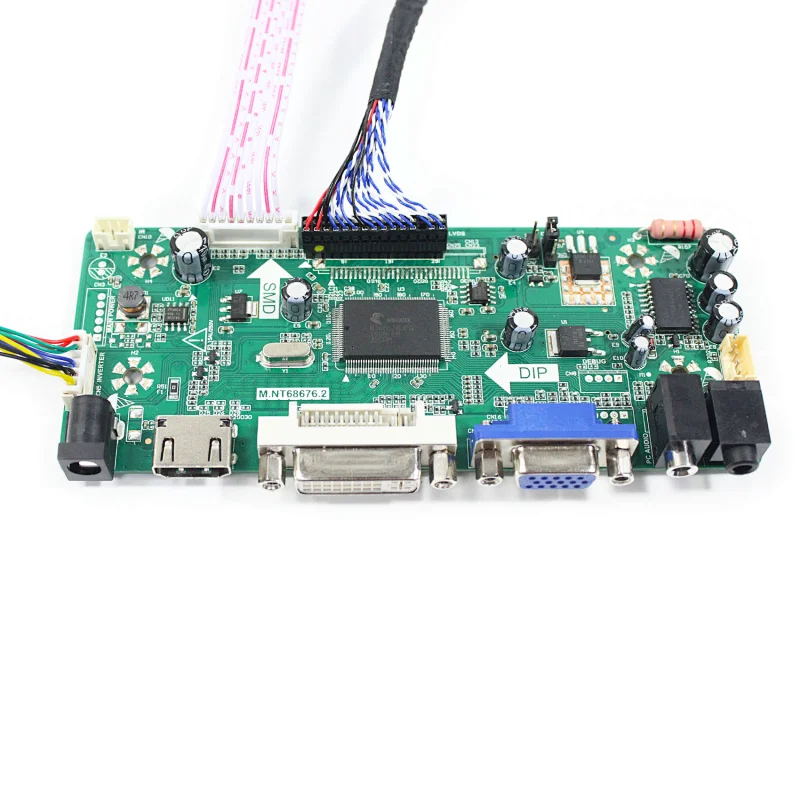

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

19"LQ190E1LW61  1280X1024 LCD Screen:
Display Mode ASV, Normally Black, Transmissive
Resolution 1280RGB)×1024
Outline Size 396 ×323.5×12(H×V×D)
Display Area 376.32×301.056 (H×V)
Brightness470 cd/m² (Typ.)
Contrast Ratio 1500:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  LVDS (2 ch, 8-bit) , Connector , 30 pins
Backlight  WLED
Input Voltage  5.0V (Typ.)

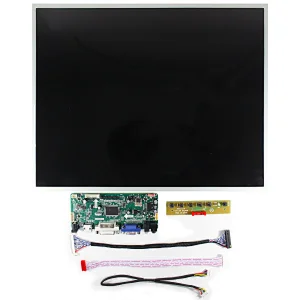

Packing list :
1× HDMI VGA DVI LCD Controller Board M.NT68676
1× 19inch LQ190E1LW61 1280X1024 LCD Screen
1× Backlight Cable
1× LVDS Cable
1× Keyboard With Cable
