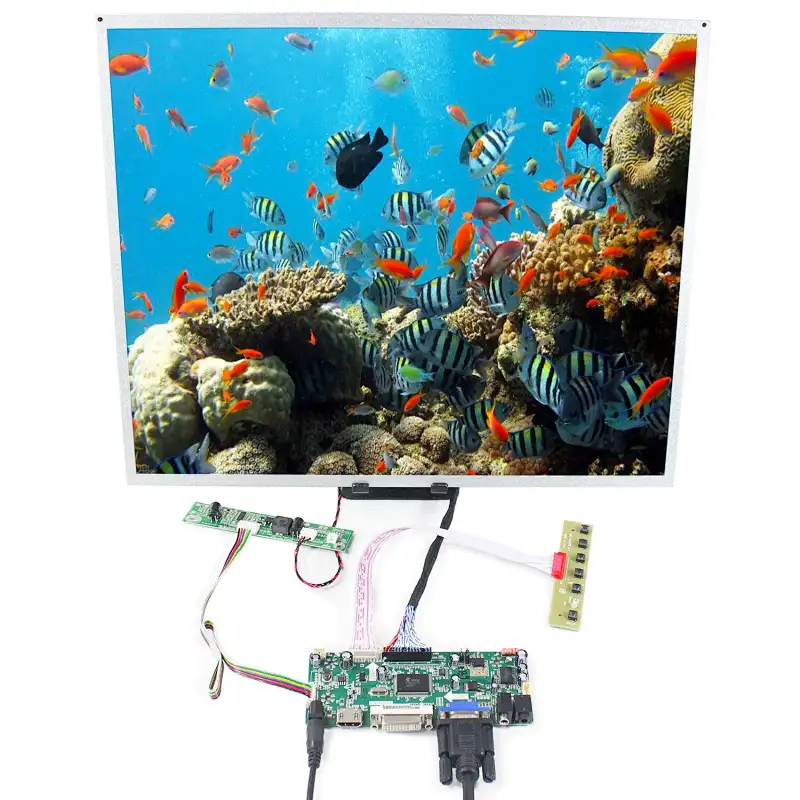

19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board
19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board
19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board
19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board
19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board
19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board
19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board
19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board
19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board
19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board
19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board
19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board
19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board

19inch G190ETN01.0 1280x1024 WLED LCD Screen with HDMI DVI VGA LCD Controller Board

Model NO.
K001128-M.NT68676+G190ETN01.0
Quantity:

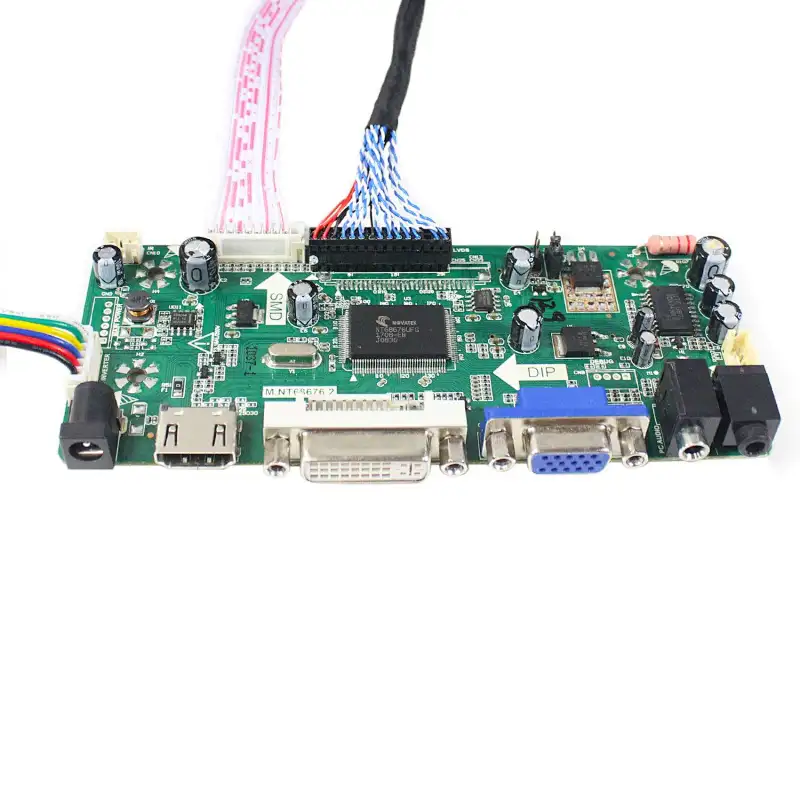

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
19"G190ETN01.0 1280X1024 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280(RGB)×1024
Outline Size 396×324 ×11.7(H×V×D)
Display Area 376.32×301.056 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector 30Pins
Backlight  WLED
Input Voltage  5.0V (Typ.)

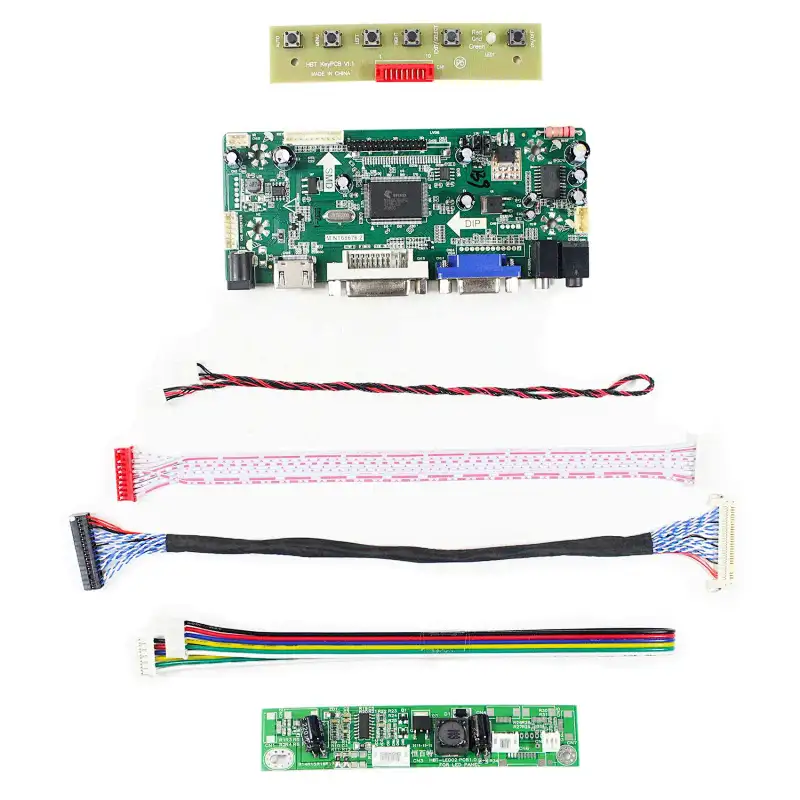

Packing list :
1× HDMI VGA DVI LCD Controller Board M.NT68676
 19inch G190ETN01.0 1280X1024 LCD Screen

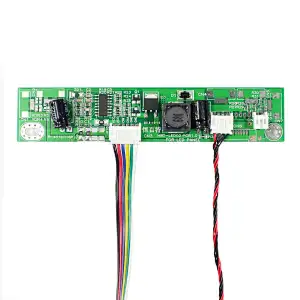

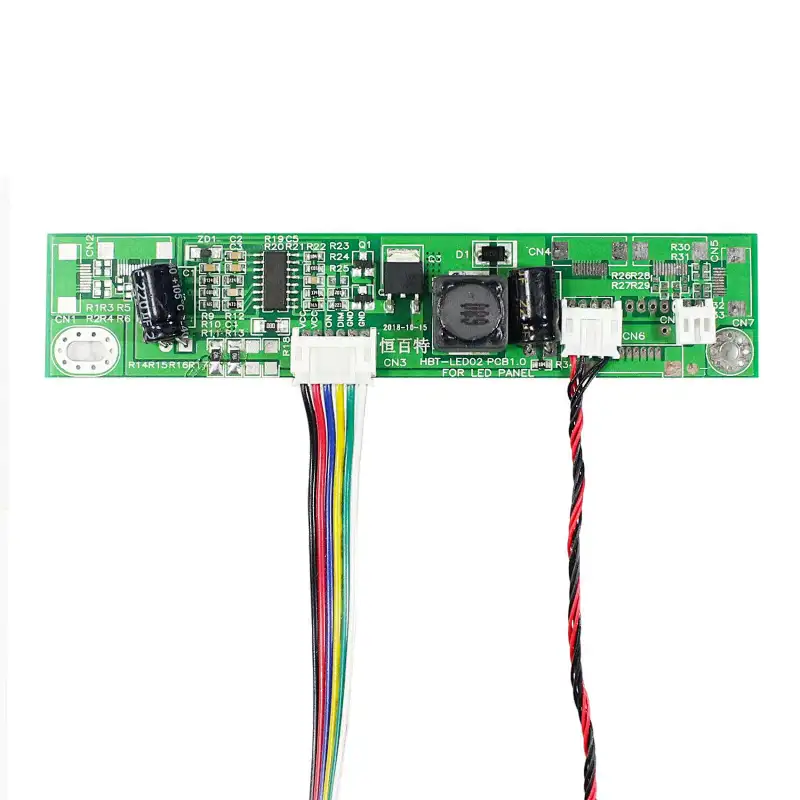

WLED Inverter Board
 LVDS Cable
 Keyboard With Cable
