19inch LQ190E1LW61 1280X1024 LCD Screen with HDMI LCD Controller Board

Model NO.
K002346-VS-TY2660H-V661 + LQ190E1LW61 1280X1024
Quantity:

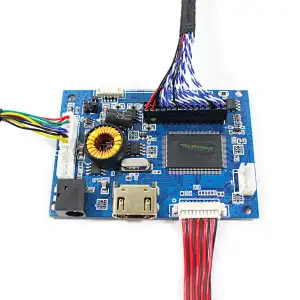

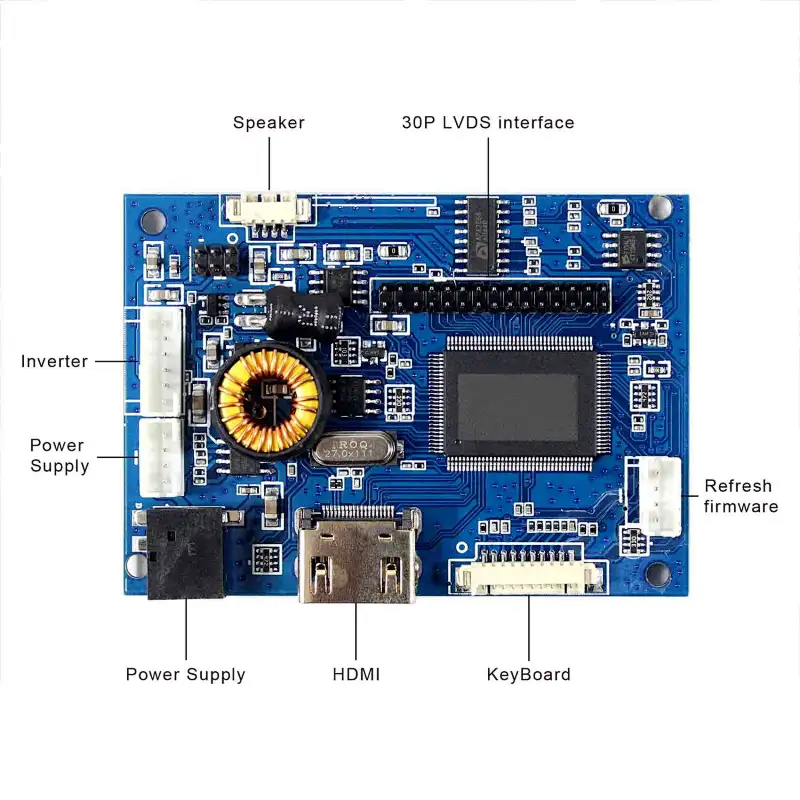

LCD Controller Board:
HDMI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm
19"LQ190E1LW61  1280X1024 LCD Screen:
Display Mode ASV, Normally Black, Transmissive
Resolution 1280RGB)×1024
Outline Size 396 ×323.5×12(H×V×D)
Display Area 376.32×301.056 (H×V)
Brightness470 cd/m² (Typ.)
Contrast Ratio 1500:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  LVDS (2 ch, 8-bit) , Connector , 30 pins
Backlight  WLED
Input Voltage  5.0V (Typ.)

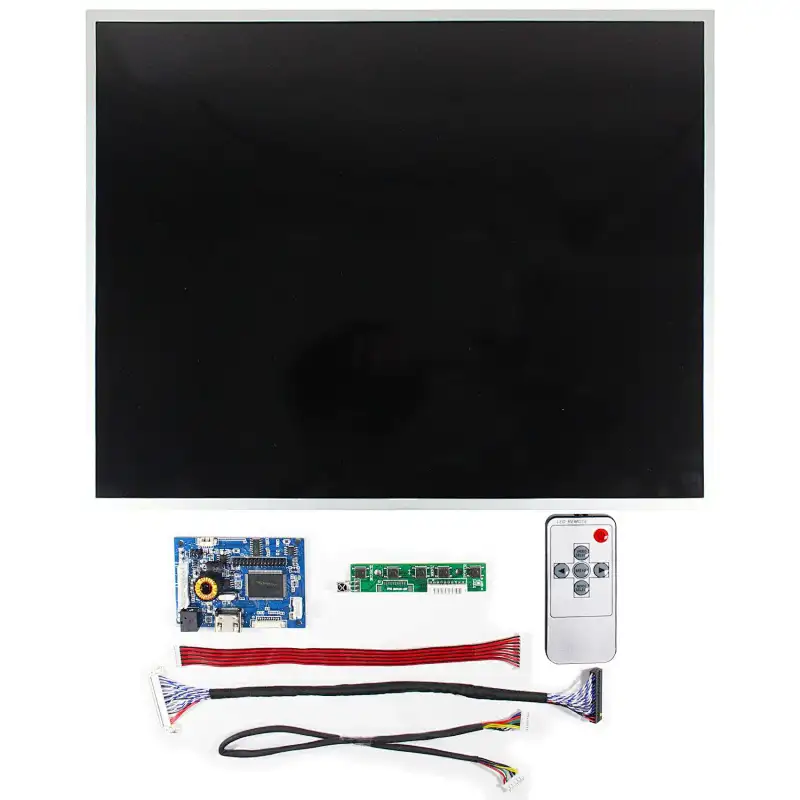

Packing list :
 HDMI LCD Controller Board VS-TY2660H-V1
 19inch LQ190E1LW61 1280X1024 LCD Screen
 Backlight Cable
 LVDS Cable
 Keyboard With Cable
