Model NO.
K002128-VS-TY2660H-V1+M190CGE-L23 1440X900
Quantity:
LCD Controller Board:
HDMI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

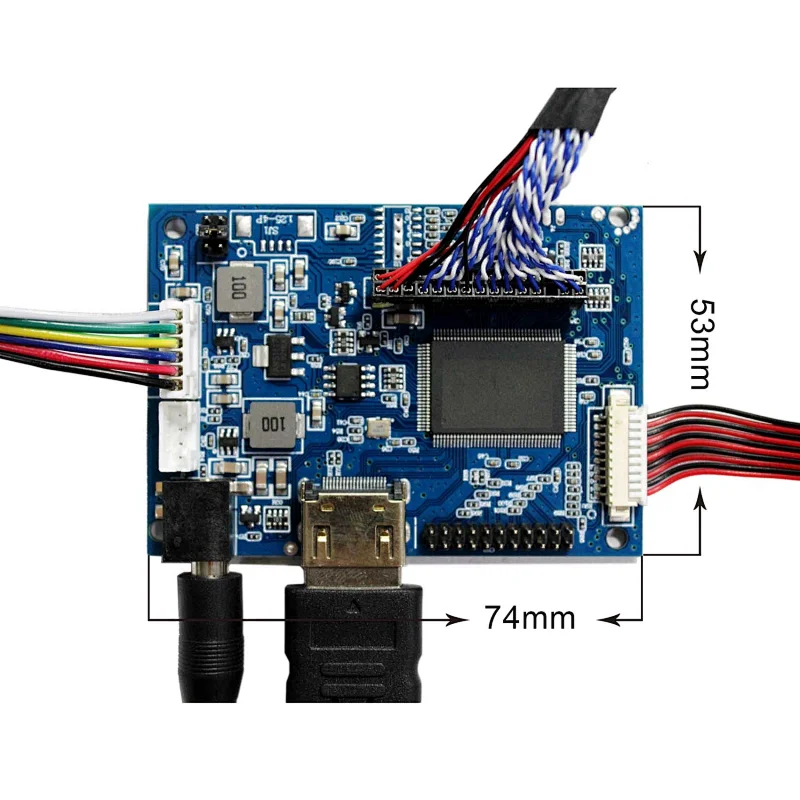

Board Size: 74mm x 53mm x 12mm
19" 1440X900 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1440RGB)×900
Outline Size 428 × 278×11 (H×V×D)
Display Area 408.2 × 255.1 (H×V)
Brightness300 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit) ,30 pins ,Connector
Backlight WLED
Input Voltage5.0V (Typ.)
Packing list :
 HDMI LCD Controller Board VS-TY2660H-V1
19inch 1440X900 LCD Screen
 Converter Board
 30PinLVDS Cable
 Keyboard With Cable
1× Remote Control (Battery Not included)
