20.7inch MT207FHM-N10 1920X1080 LCD Screen with HDMI VGA LCD Contorller Board
20.7inch MT207FHM-N10 1920X1080 LCD Screen with HDMI VGA LCD Contorller Board
20.7inch MT207FHM-N10 1920X1080 LCD Screen with HDMI VGA LCD Contorller Board
20.7inch MT207FHM-N10 1920X1080 LCD Screen with HDMI VGA LCD Contorller Board
20.7inch MT207FHM-N10 1920X1080 LCD Screen with HDMI VGA LCD Contorller Board
20.7inch MT207FHM-N10 1920X1080 LCD Screen with HDMI VGA LCD Contorller Board
20.7inch MT207FHM-N10 1920X1080 LCD Screen with HDMI VGA LCD Contorller Board
20.7inch MT207FHM-N10 1920X1080 LCD Screen with HDMI VGA LCD Contorller Board
20.7inch MT207FHM-N10 1920X1080 LCD Screen with HDMI VGA LCD Contorller Board
20.7inch MT207FHM-N10 1920X1080 LCD Screen with HDMI VGA LCD Contorller Board
20.7inch MT207FHM-N10 1920X1080 LCD Screen with HDMI VGA LCD Contorller Board

20.7inch MT207FHM-N10 1920X1080 LCD Screen with HDMI VGA LCD Contorller Board

Model NO.
K002363-VS-W58CDT9-AV7 +MT207FHM-N20
Quantity:

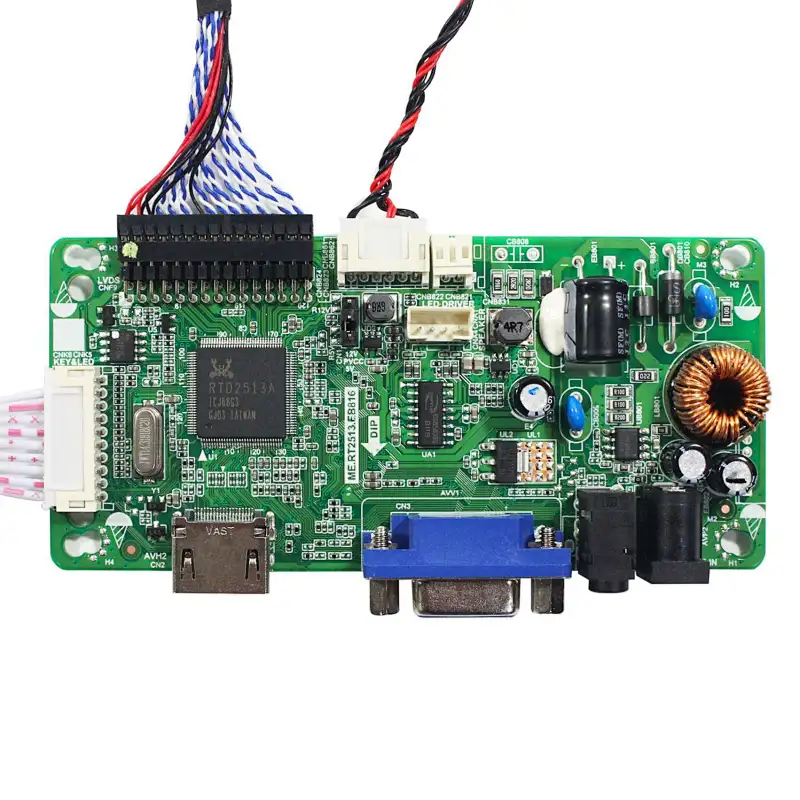

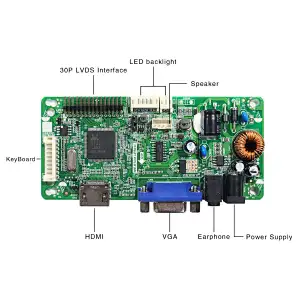

LCD Controller Board:
HDMI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 123mm x 63mm x 15mm

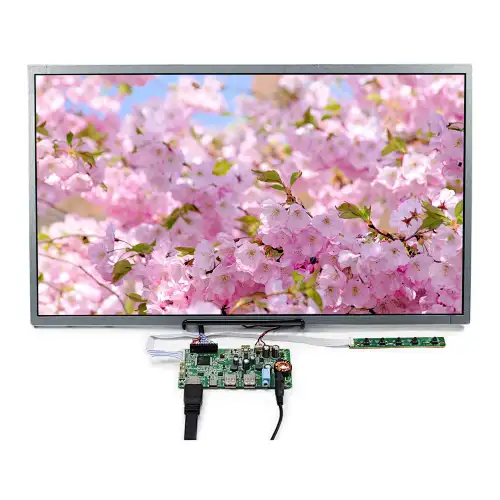

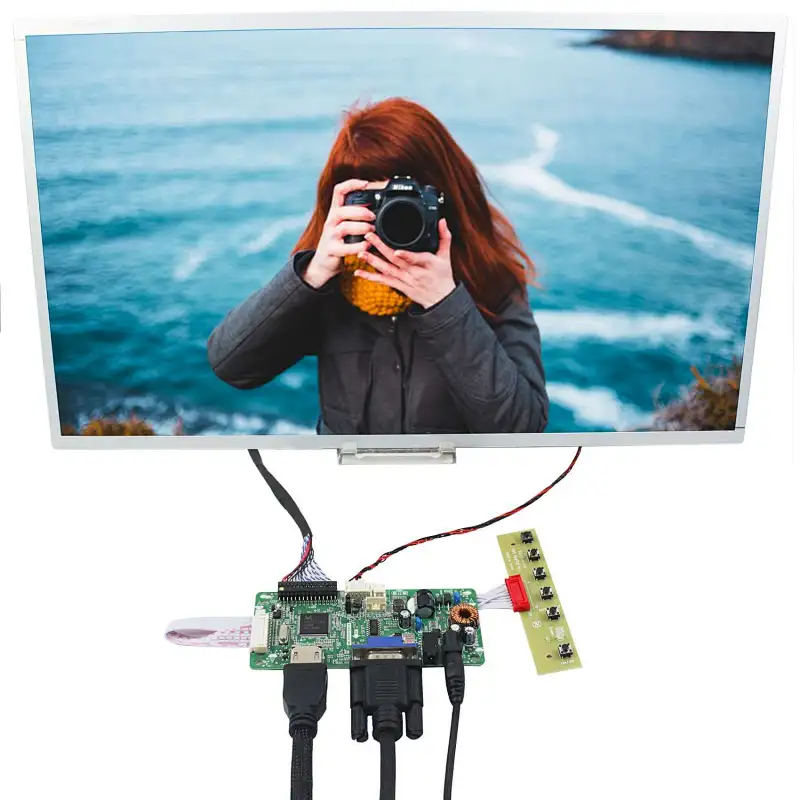

20.7" MT207FHM-N20 1920X1080 LCD Screen:
Display Mode  ADS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 477.7 ×277.8×10.6(H×V×D)
Display Area 457.92×257.58(H×V)
Brightness200 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 60/60/45/70(Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

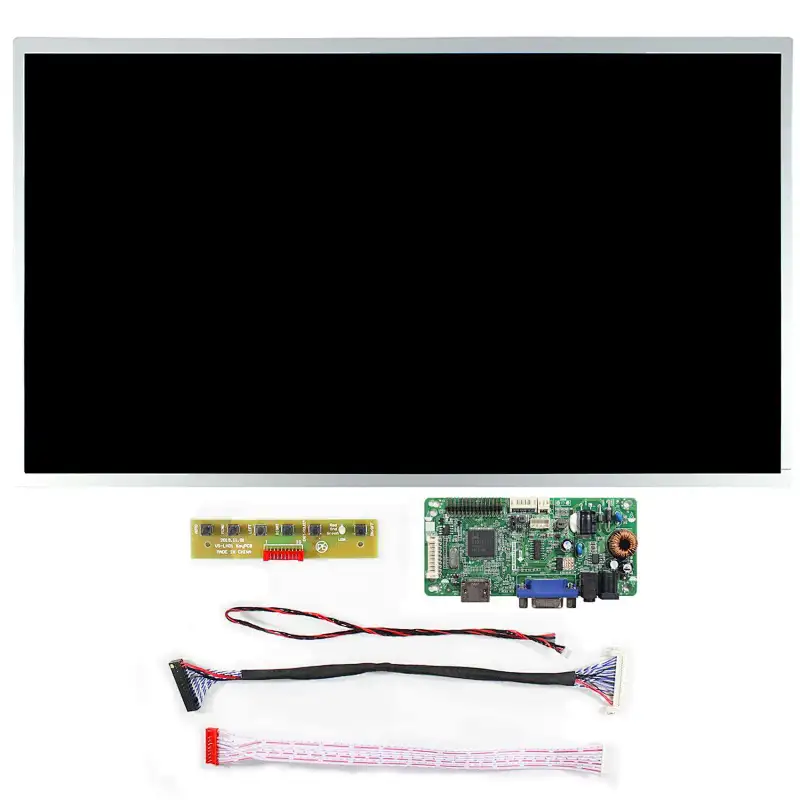

Packing list :
1× HDMI VGA LCD Controller Board VS-W58CDT9-AV7
 20.7inchMT207FHM-N10 1920X1080 LCD Screen

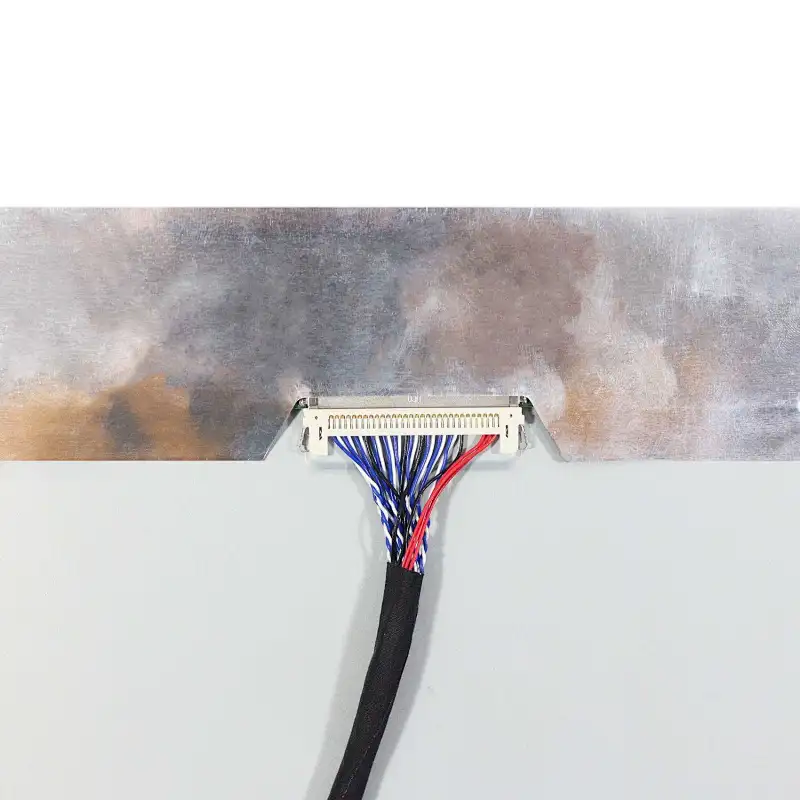

 LVDS Cable
 Backlight Cable
 Keyboard With Cable
