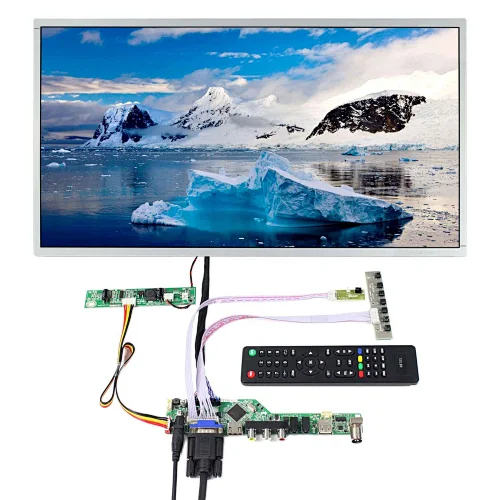

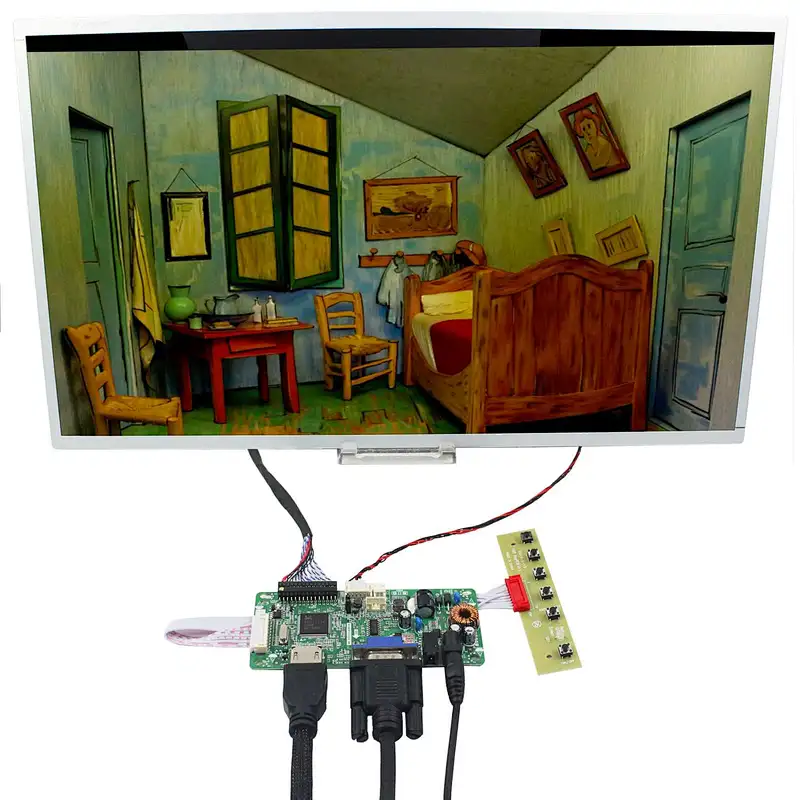

21.5inch HR215WU1 1920X1080 IPS LCD Screen With VGA HDM I LCD Controller Board
21.5inch HR215WU1 1920X1080 IPS LCD Screen With VGA HDM I LCD Controller Board
21.5inch HR215WU1 1920X1080 IPS LCD Screen With VGA HDM I LCD Controller Board
21.5inch HR215WU1 1920X1080 IPS LCD Screen With VGA HDM I LCD Controller Board
21.5inch HR215WU1 1920X1080 IPS LCD Screen With VGA HDM I LCD Controller Board
21.5inch HR215WU1 1920X1080 IPS LCD Screen With VGA HDM I LCD Controller Board
21.5inch HR215WU1 1920X1080 IPS LCD Screen With VGA HDM I LCD Controller Board
21.5inch HR215WU1 1920X1080 IPS LCD Screen With VGA HDM I LCD Controller Board
21.5inch HR215WU1 1920X1080 IPS LCD Screen With VGA HDM I LCD Controller Board
21.5inch HR215WU1 1920X1080 IPS LCD Screen With VGA HDM I LCD Controller Board
21.5inch HR215WU1 1920X1080 IPS LCD Screen With VGA HDM I LCD Controller Board

21.5inch HR215WU1 1920X1080 IPS LCD Screen With VGA HDM I LCD Controller Board

Model NO.
K002361-VS-W58CDT9-AV7 +HR215WU1-120
Quantity:

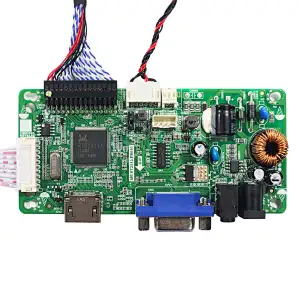

LCD Controller Board:
HDMI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 123mm x 63mm x 15mm
21.5" HR215WU1 1920X1080 LCD Screen:
Display Mode  FFS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 495.6 ×292.2×11.3 (H×V×D)
Display Area 467.64 ×268.11 (H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

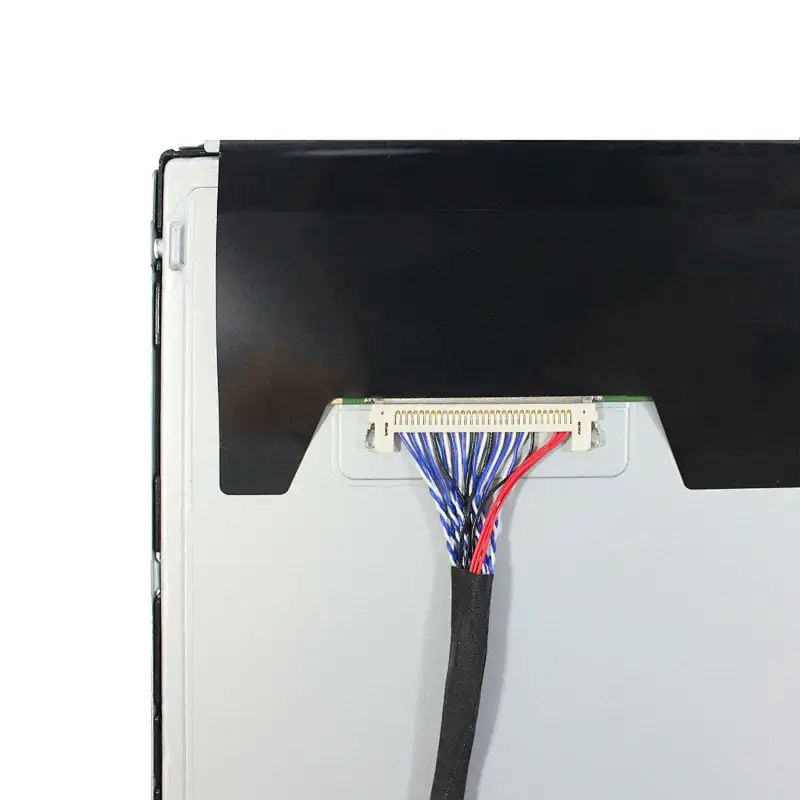

Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

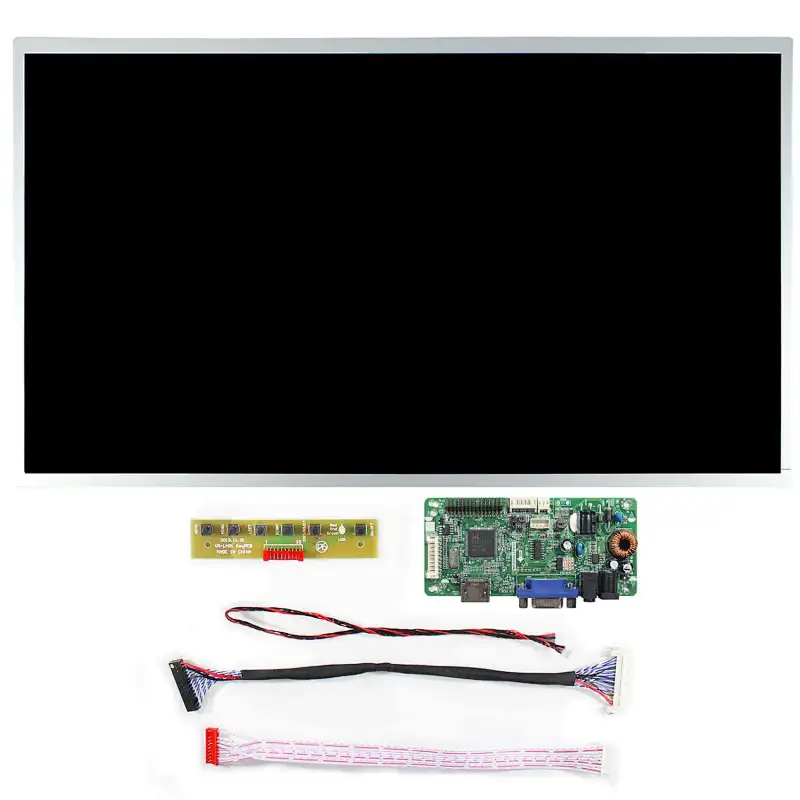

Packing list :
1× HDMI VGA LCD Controller Board VS-W58CDT9-AV7
 21.5inchHR215WU1-120 1920X1080IPSLCD Screen
 LVDS Cable
 Backlight Cable
 Keyboard With Cable
