23.8" 1500nit 1920X1080 Out Door LCD Screen VS238GF with HDMI LCD Controller Board

Model NO.
K003045-VS-TY2660H-V661+23.8寸 VS238GF 1920X1080 1500nit
Quantity:

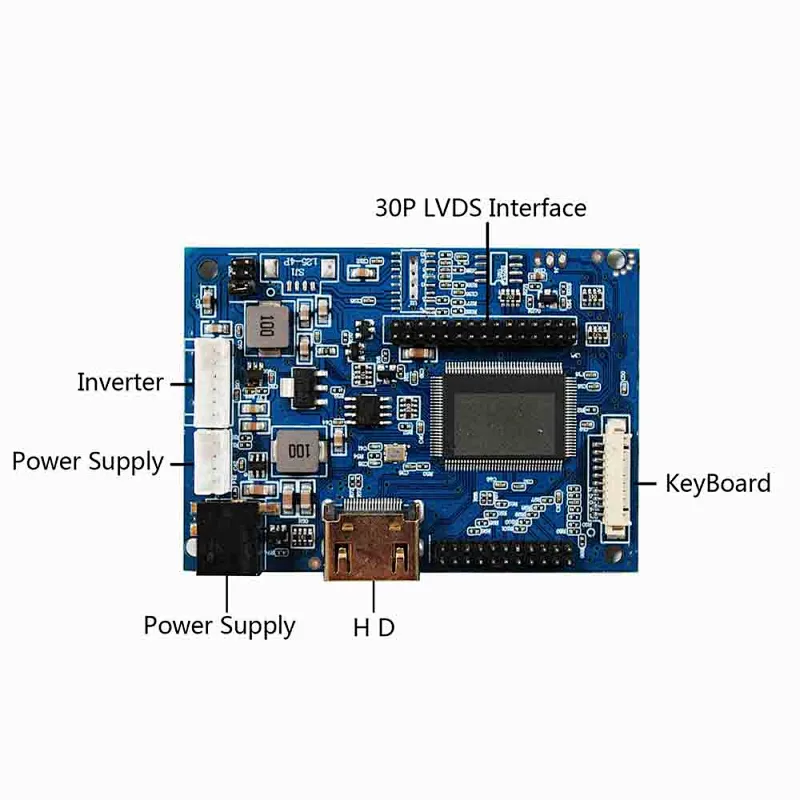

LCD Controller Board:
HD LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI
Audio Input: HDMI
Audio Output: Speaker (4Pin PH1.25 connector)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm

23.8" VS238GF-1500 1920X1080 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1920X(RGB)×1080
Outline Size 543×317.4×11.7MM (H×V×D)
Display Area 527.04 × 296.46 mm (H×V)
Brightness1500 cd/m² (Typ.)
Contrast Ratio 3000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10
Signal Interface Parallel LVDS (2 ch, 8-bit) , 30 pins ,
Backlight WLED
Input Voltage 5V (Typ.)

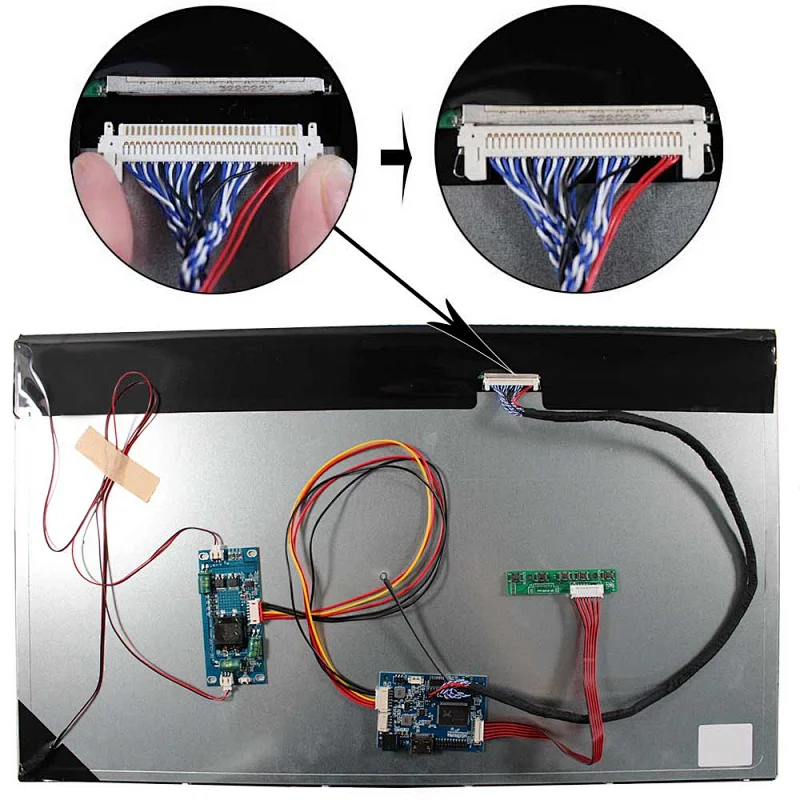

Packing list :
 HDMI LCD Controller Board VS-TY2660H-661
1× 23.8inch VS238GF-1500 1920X1080 LCD Screen

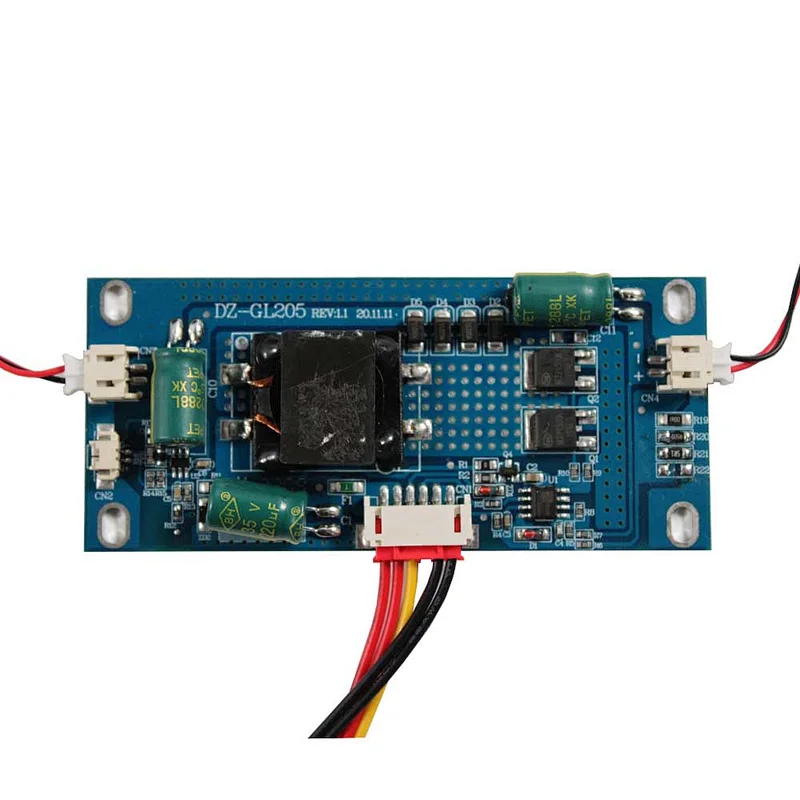

 LED Driver Board
 LVDS Cable
 Keyboard With Cable
