23.8inch 1920x1080 MV238FHM-N10 TFT-LCD For PC Monitor with USB-C HD-MI Board
23.8inch 1920x1080 MV238FHM-N10 TFT-LCD For PC Monitor with USB-C HD-MI Board
23.8inch 1920x1080 MV238FHM-N10 TFT-LCD For PC Monitor with USB-C HD-MI Board
23.8inch 1920x1080 MV238FHM-N10 TFT-LCD For PC Monitor with USB-C HD-MI Board
23.8inch 1920x1080 MV238FHM-N10 TFT-LCD For PC Monitor with USB-C HD-MI Board
23.8inch 1920x1080 MV238FHM-N10 TFT-LCD For PC Monitor with USB-C HD-MI Board
23.8inch 1920x1080 MV238FHM-N10 TFT-LCD For PC Monitor with USB-C HD-MI Board
23.8inch 1920x1080 MV238FHM-N10 TFT-LCD For PC Monitor with USB-C HD-MI Board
23.8inch 1920x1080 MV238FHM-N10 TFT-LCD For PC Monitor with USB-C HD-MI Board
23.8inch 1920x1080 MV238FHM-N10 TFT-LCD For PC Monitor with USB-C HD-MI Board
23.8inch 1920x1080 MV238FHM-N10 TFT-LCD For PC Monitor with USB-C HD-MI Board

23.8inch 1920x1080 MV238FHM-N10 TFT-LCD For PC Monitor with USB-C HD-MI Board

Model NO.
K002695-VS-JRY-W3AFHD-DV1 Type-c +MV238FHM-N10
Quantity:

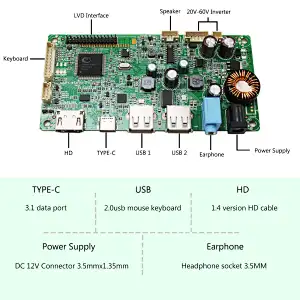

LCD Controller Board:
HD-MI Type-C  USBx2  AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc+/-0.5vMore than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI Type-C  USBx2
Audio Input: HD-MI Type-C
Audio Output: Speaker Connector  headset
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

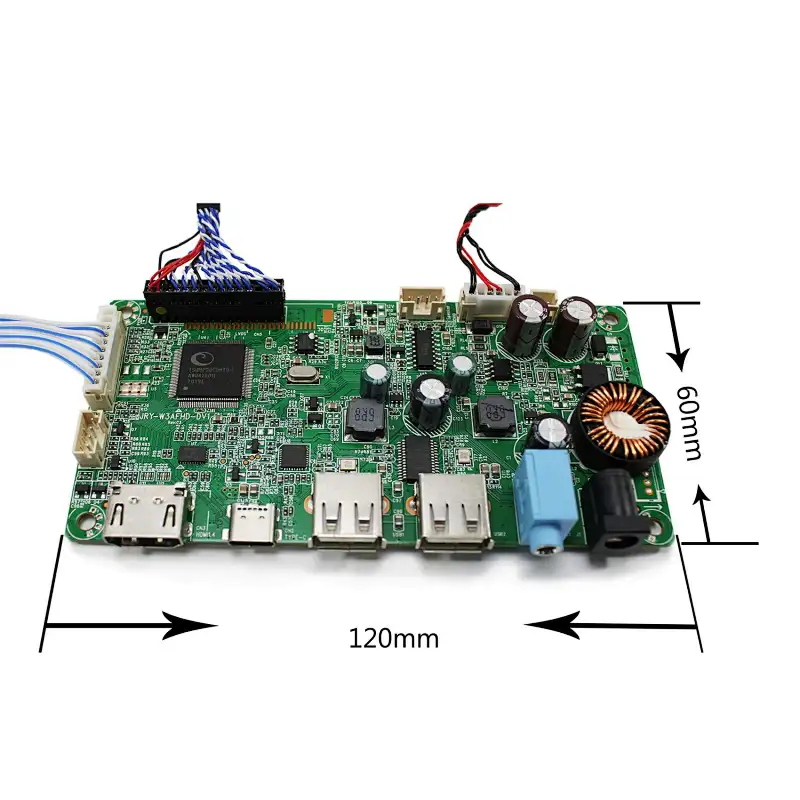

Board Size: 120mm x 60mm x 17mm
23.8"MV238FHM 1920X1080 LCD Screen:
Display Mode  ADS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 543 ×317.4×11.4 (H×V×D)
Display Area 527.04 × 296.46(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

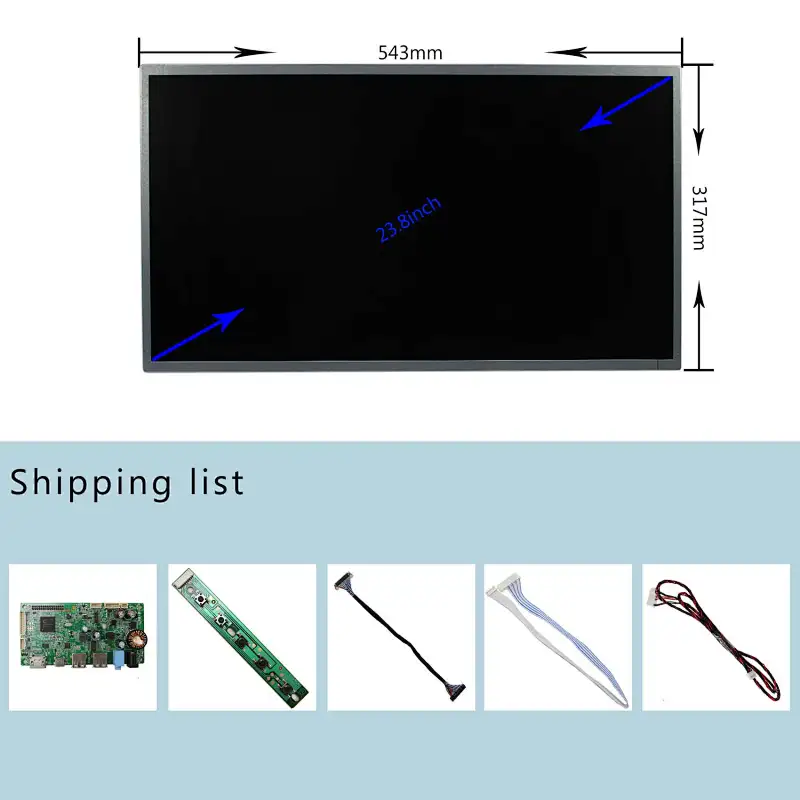

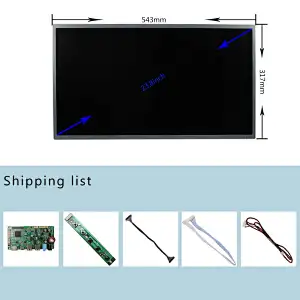

Packing list :
1× HD-MI Type-C  USBx2  AUDIO LCD Board Work for LVDS Interface LCD Screen
23.8"MV238FHM 1920X1080 LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
