23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote
23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote

23.8inch MV238FHM 30pin LVDS LCD Monitor+Controller Board HDM I Audio Input Remote

Model NO.
K002546-VS-TY2660H-V818+MV238FHM-N10
Quantity:

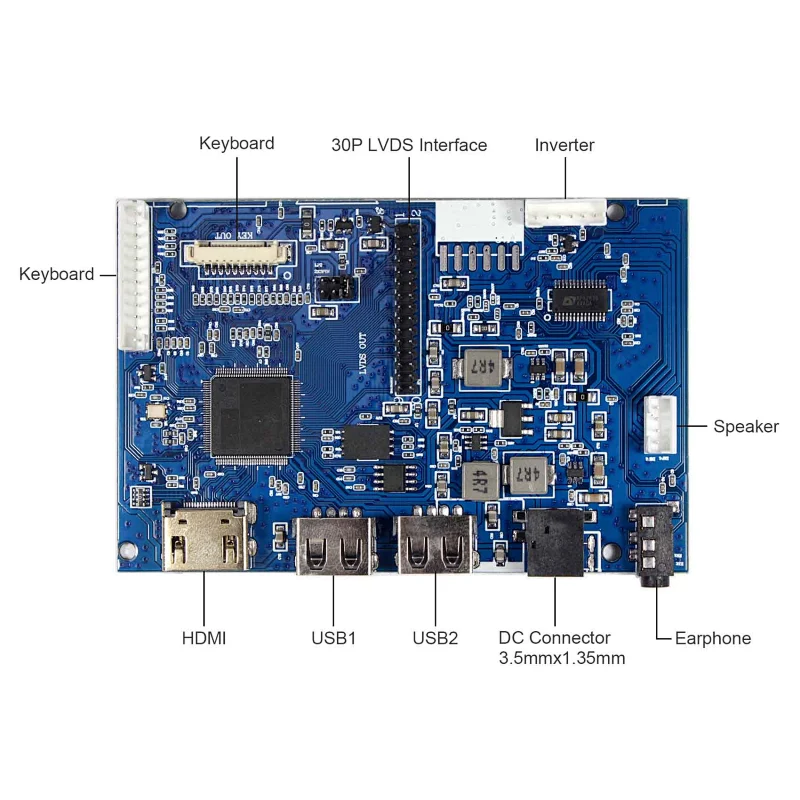

LCD Controller Board:
HDMI USB Android LCD Controller Board Work for LVDS 40Pin TTL LCD Screen
Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI1.4 USB

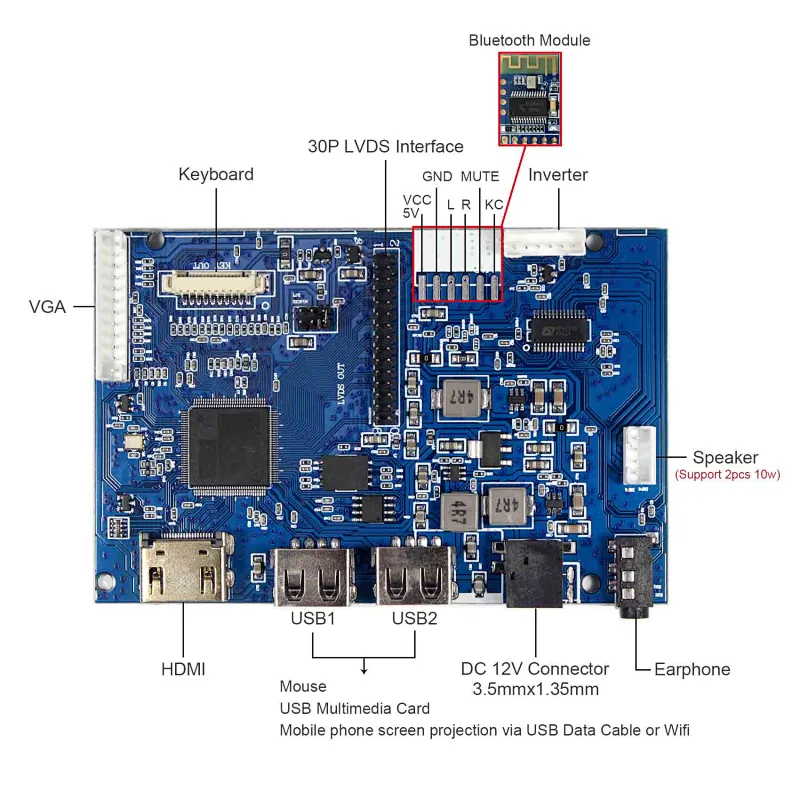

USB Port:
Support Video Play

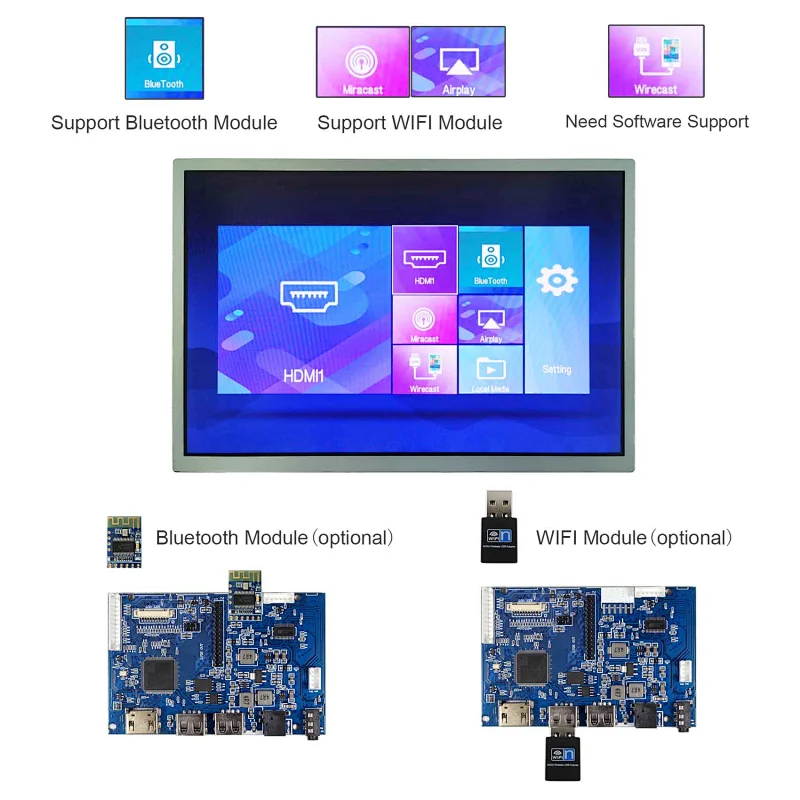

Support WIFI Module
Support Connect Keyboard and mouse
Support 5Vdc 500mA output
Support OS Android Screen projection via USB Cable or wifi Module
Audio Input: HDMI
Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm
23.8"MV238FHM 1920X1080 LCD Screen:
Display Mode  ADS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 543 ×317.4×11.4 (H×V×D)
Display Area 527.04 × 296.46(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

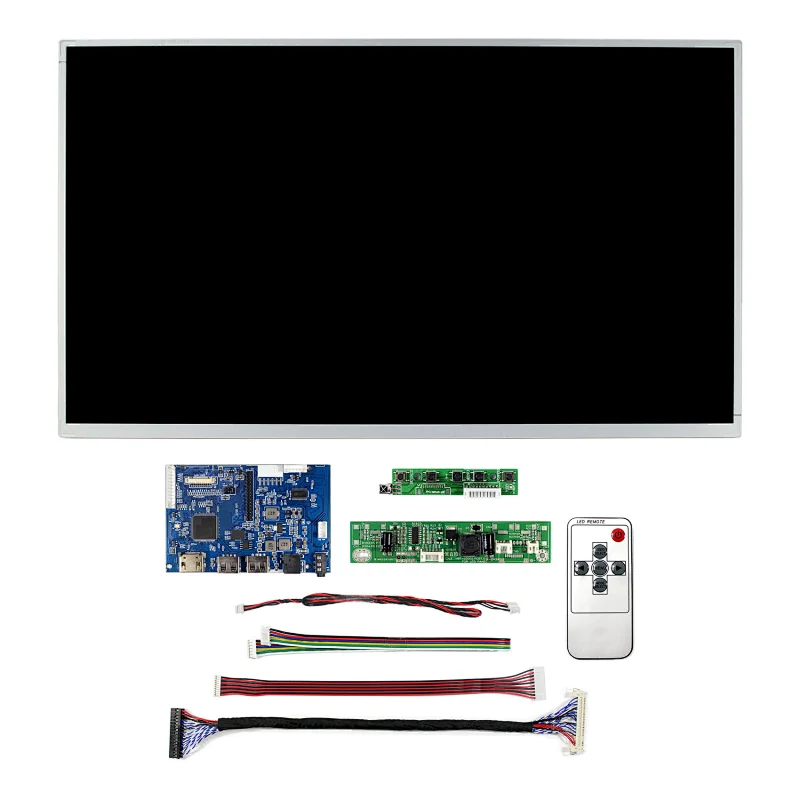

Packing list:
1× HDMI Audio LCD Controller Board VS-TY2660H-V818
1× 23.8inch MV238FHM 1920X1080 LCD Screen
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
