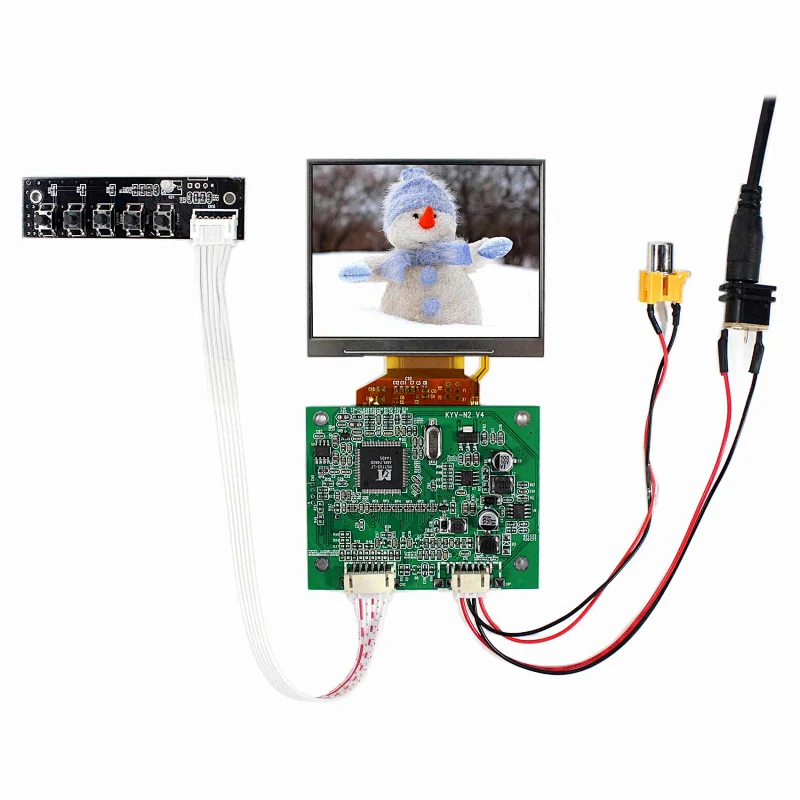

3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board

3.5inch LQ035NC111 320X240 TFT-LCD Screen With AV LCD Controller Board

Model NO.
K001762-KYV-N2 V4+LQ035NC111
Quantity:

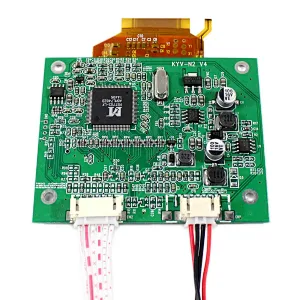

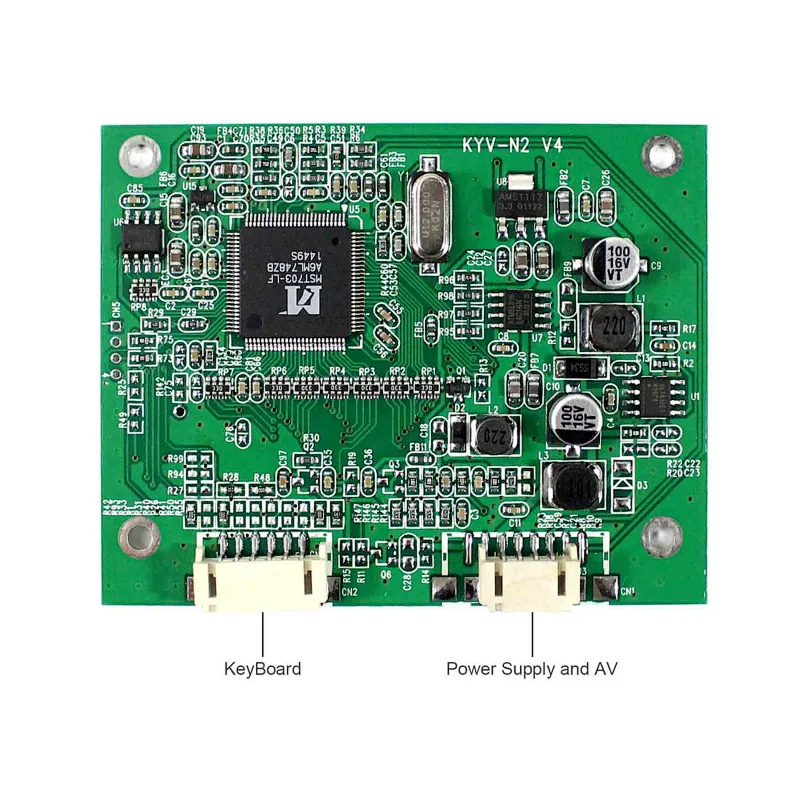

LCD Controller Board:
AV LCD Board Work for 54Pin TTL LQ035NC111 LCD Screen
Input Power Adapter:12Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Video Input: AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:77mm x 60mm x 8mm

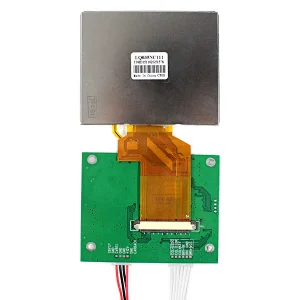

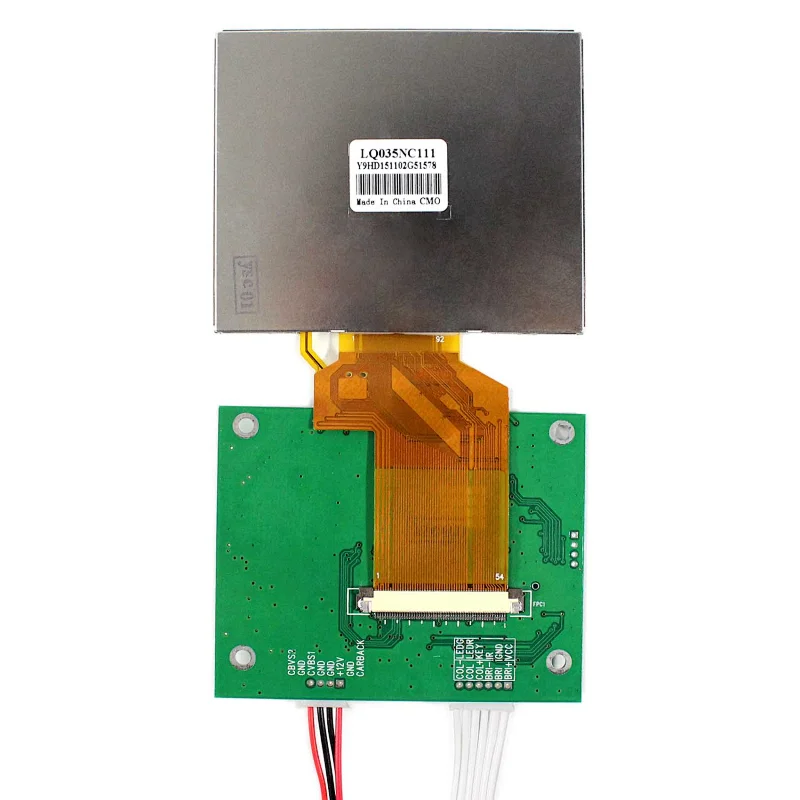

3.5"LQ035NC111 320X240 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 320RGB)×240
Outline Size 76.9 × 63.9×3.46 (H×V×D)
Display Area 70.08 × 52.56 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 60/60/50/55 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins , FPC
Backlight WLED
Input Voltage  3.3V (Typ.)

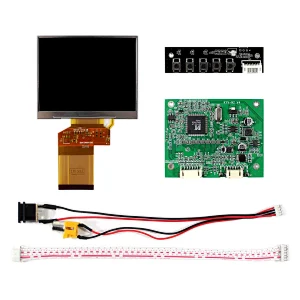

Packing list :
1× AV LCD Controller Board KYV-N2 V4
1× 3.5inch LQ035NC111 320X240 LCD Screen
1× 2AV Signal Cable
1× Power Cable
1× Keyboard With Cable
