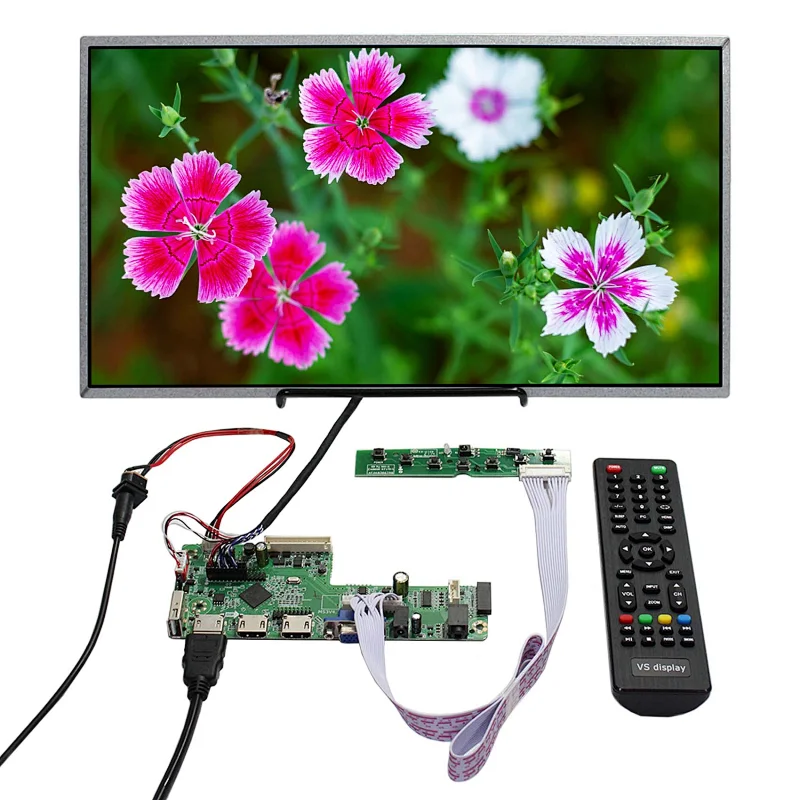

3HDMI VGA USB LCD Controller Board With 15.6inch 1366x768 LCD Screen
3HDMI VGA USB LCD Controller Board With 15.6inch 1366x768 LCD Screen
3HDMI VGA USB LCD Controller Board With 15.6inch 1366x768 LCD Screen
3HDMI VGA USB LCD Controller Board With 15.6inch 1366x768 LCD Screen
3HDMI VGA USB LCD Controller Board With 15.6inch 1366x768 LCD Screen
3HDMI VGA USB LCD Controller Board With 15.6inch 1366x768 LCD Screen
3HDMI VGA USB LCD Controller Board With 15.6inch 1366x768 LCD Screen
3HDMI VGA USB LCD Controller Board With 15.6inch 1366x768 LCD Screen
3HDMI VGA USB LCD Controller Board With 15.6inch 1366x768 LCD Screen
3HDMI VGA USB LCD Controller Board With 15.6inch 1366x768 LCD Screen
3HDMI VGA USB LCD Controller Board With 15.6inch 1366x768 LCD Screen

3HDMI VGA USB LCD Controller Board With 15.6inch 1366x768 LCD Screen

Model NO.
K002897-VS-M5V4.1+15.6inch 1366x768 B156XW02
Quantity:

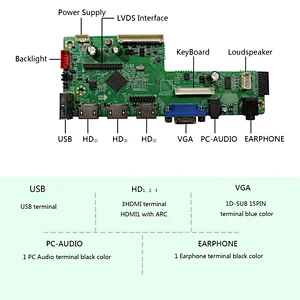

LCD Controller Board:
3X HD-MI VGA USB Audio LCD Controller Board for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI USB VGA
Audio Input: HD-MI
Audio Output: Speaker Earphone
OSD: Brightness Contrast Auto Language And So On
Language: English Chinese French German Spanish Italian Russian Portuguese

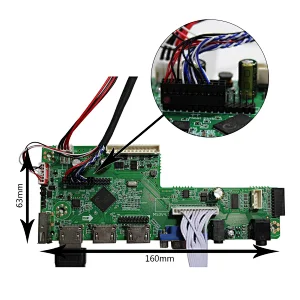

Board Size: 160mm x 63mm x 17mm
15.6"1366X768 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1920RGB)×1080
Outline Size 359.3 ×209.5×5.7(H×V×D)
Display Area 344.16 × 193.59 (H×V)
Brightness 220 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 45/45/15/35 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  LVDS(2 ch, 6-bit) , Connector ,40pins
Backlight  WLED
Input Voltage  3.3V (Typ.)
Packing list :
1× HD-MI USB VAG AUDIO LCD Board VS-M53V4.1
1× 15.6inch (One of them LP156WH2 LP156WH4 B156XW02 B156XW04 H156WXB LTN156AT03 LTN156AT05 N156B6 N156BGE NT156WHM B156XTN02 )1920X1080 LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
