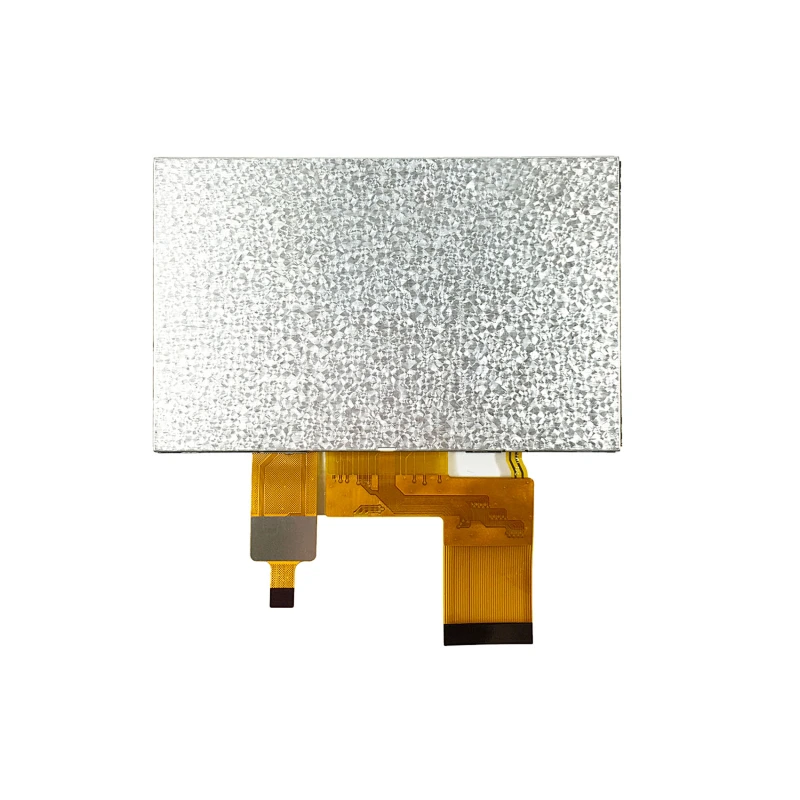

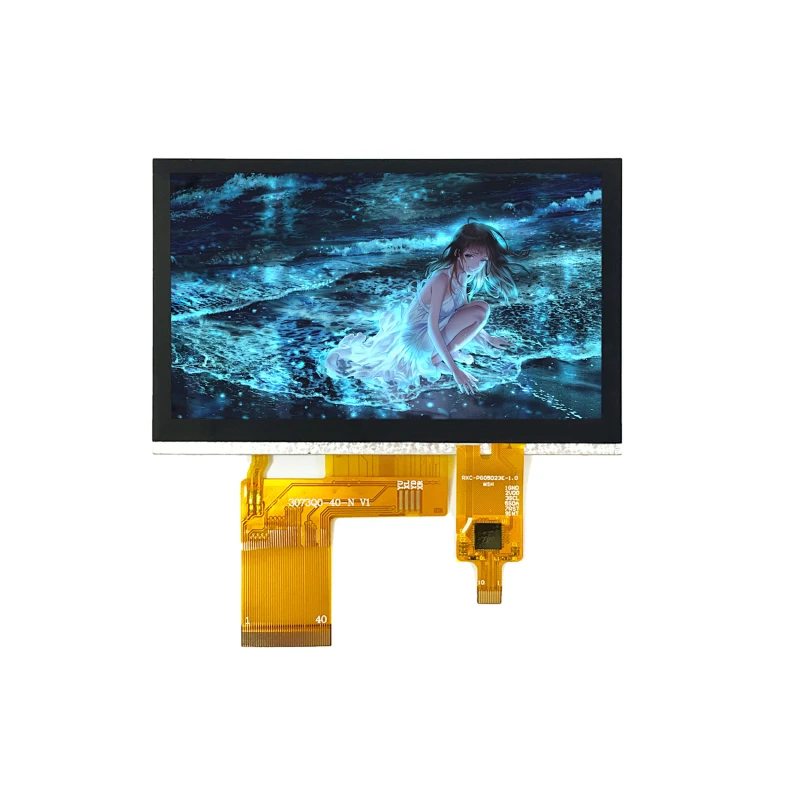

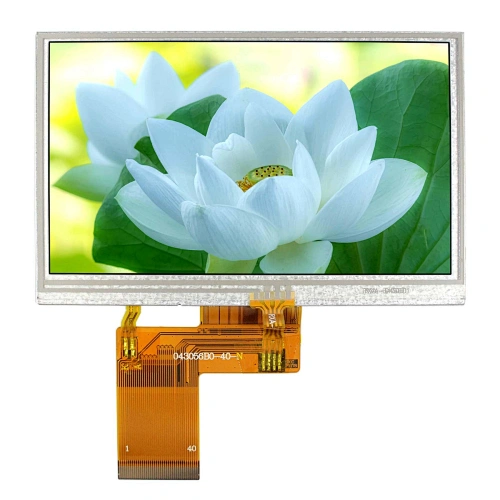

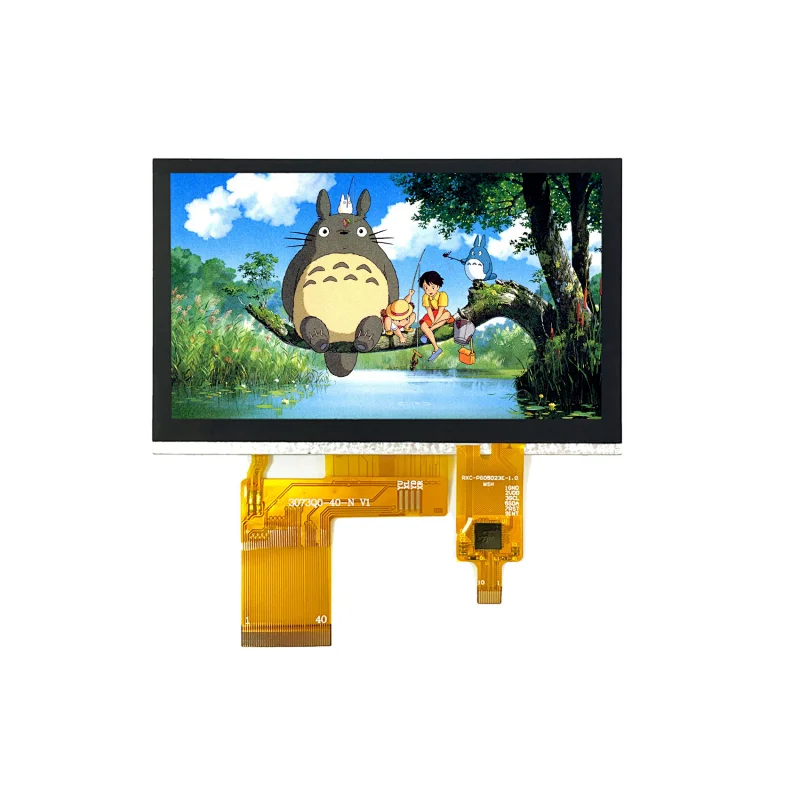

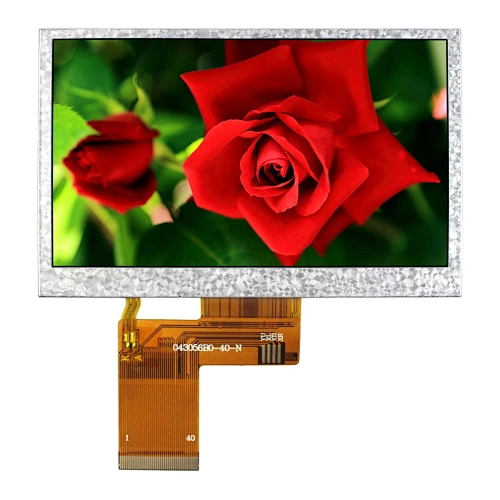

4.3inch 480X272 Capacitive Sensor Touch LCD Screen Module Brightness 500nit touch screen

4.3"VS043T-004A 480X234 LCD Screen:

Display Mode  TN, Normally White, Transmissive

Resolution 480RGB)×272

Outline Size 105.5 × 67.2×3.1 (H×V×D)

Display Area 95.04 × 53.86 (H×V)

Brightness 500 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.) (TM)

Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC

Backlight  WLED

Input Voltage  3.3V (Typ.)

4.3inch Capacitive Touch Sensor

Interface I2C.

IC: FT5216

Pin1: VSS

Pin2: VDD

Pin3: SCL

Pin4: VSS

Pin5: SDA

Pin6: VSS

Pin7: /RST

Pin8: NC

Pin9: INT

Pin10: VSS

Dimension Size: 105.8mm x 67.5mm

Display Area：95.44mm x 54.5 mm

Packing list :

1× 4.3inch VS043T-005A 480X272 LCD Screen With Capacitive Touch Sensor
