Hantouch launched touch control board to meet latest Restriction of Hazardous Substances (RoHS) Directive.
This touch panel controller provides the optimistic performance of your analog resistive touch panels for 4-wire models.
It communicates with PC system directly through RS232 connector.
You can see how superior the design is in sensitivity accuracy and friendly operation.
The touch panel driver emulates mouse left and right button function and supports operation systems as following.

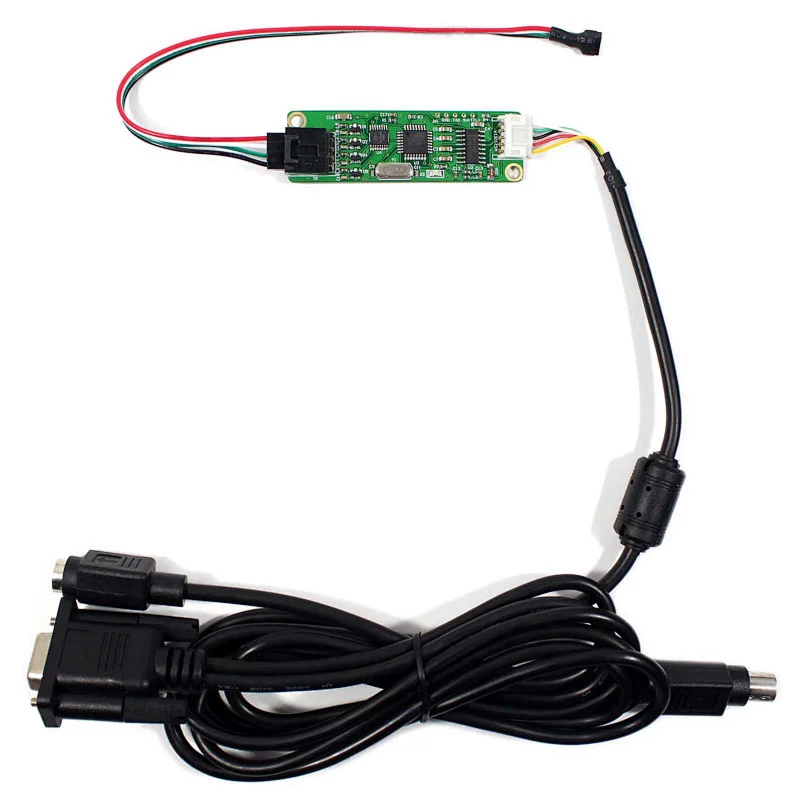

RS232 Type Controller
Dimension Size: 71mm x 20mm x 10mm
Power Requirements D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)
Operating Temperature 0 to 50°C
Storage Temperature -40 to 80°C
Relative Humidity 95% at 60°C
Interface USB 1.1 & 2.0
Resolution 2048×2048 resolution
Report rate RS232 Model: Max. 160 points/sec
Response time Max. 20 ms

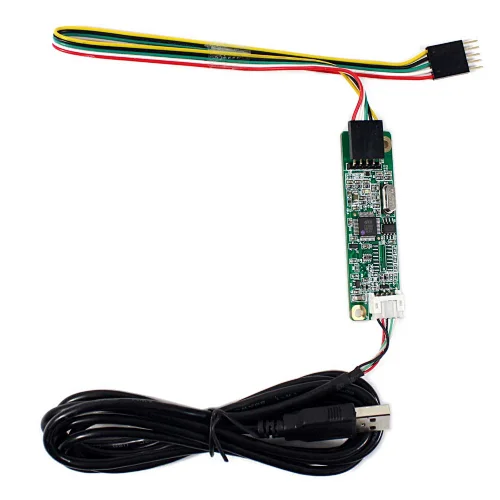

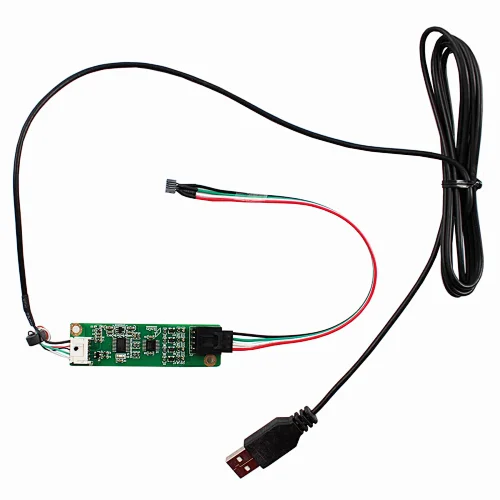

Attached Cable 6' shielded cable with USB-A connector for USB port
Regulatory Approvals FCC-B , CE, Unaffected by EMI from other nearly and other display devices
EMI Unaffected by environmental EMI
Panel resistance 4 wire resistive model: 200 ~ 900 ohm
MTBF 200,000 hrs
PIN1: Y- PIN2: X- PIN4: COM PIN4: Y+ PIN5: X+
1× RS232 Cable
1× Converter Cable

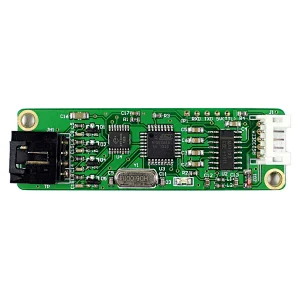

D00002-Touch Contoller Card
