Model NO.
K002698-VS-WH HDMImipi 4K-V2+H546UAN01.0 5.5inch4K 2160x3840
Quantity:

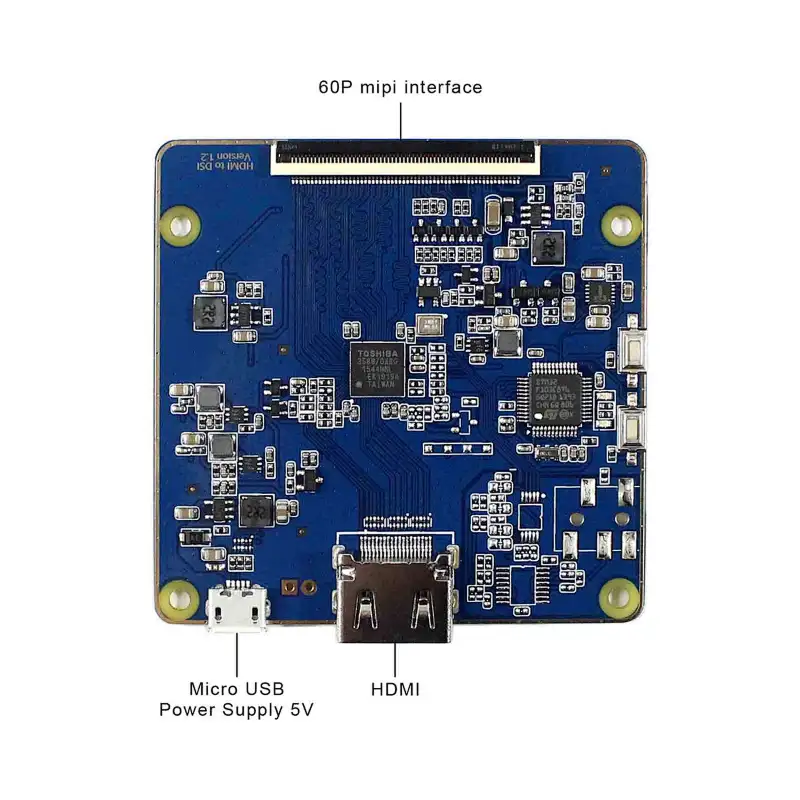

LCD Controller Board:
HD-MI Board Work for 60Pin Mipi LCD Screen
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.5W
Audio Input: HD-MI

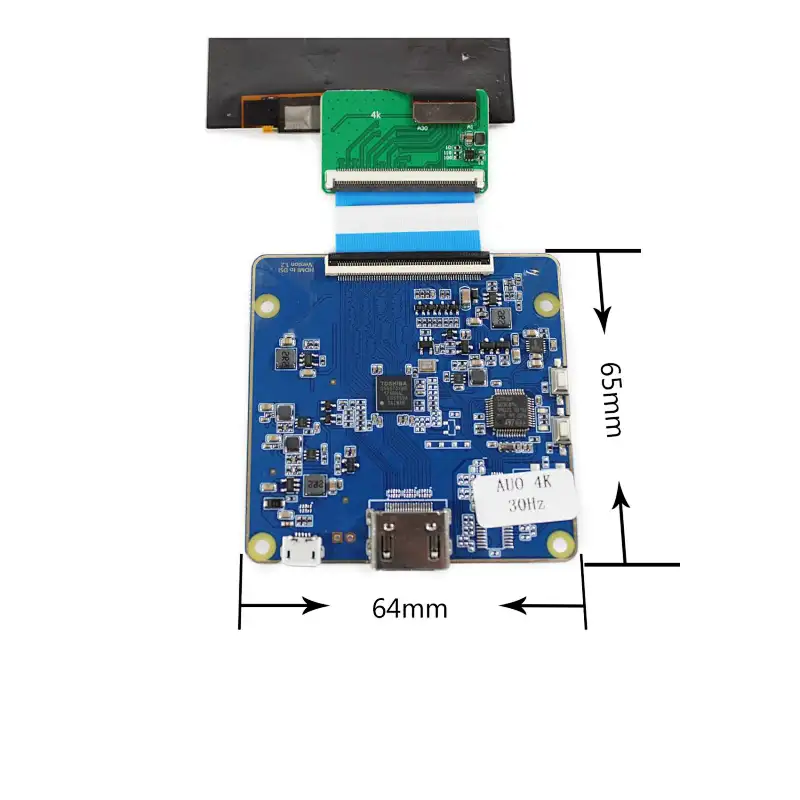

Board Size: 65mm x 64mm x 3mm

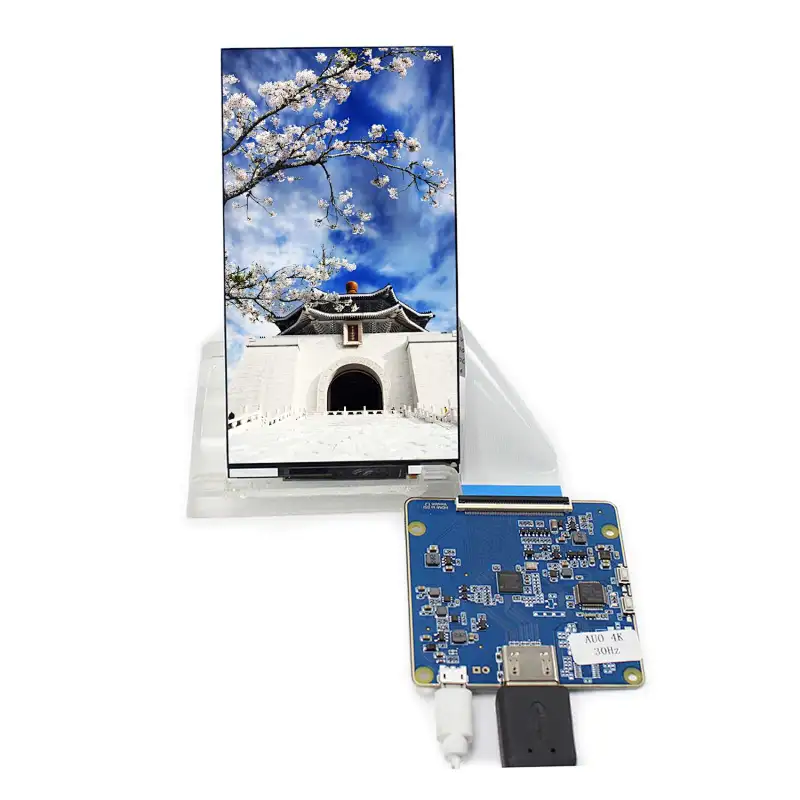

5.5"H546UAN01.0 2160X3840 LCD Screen:
DisplayNew Mode2, Normally Black, Transmissive
Resolution 2160RGB)×3840
Outline Size 69.84 ×128.86×1.38(H×V×D)
Display Area 68.04× 120.96 (H×V)
Brightness 500 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 70/70/70/70 (Typ.)(CR≥100) [Left / Right / Up / Down]
Signal Interface MIPI (2 ch, 4 data lanes) , 60 pins , Connector
Backlight  WLED
Input Voltage 1.85/1.35V (Typ.)

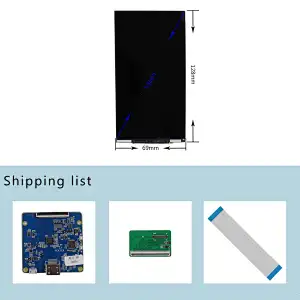

Packing list :
1× HD-MI To Mipi LCD Controller Board VS-HDMITMIPI-4K V2
1× 5.5inch H546UAN01.0 2160X3840 LCD Screen
1× Signal Cable
1× Converter Board

Instuction:
1. When HDMI signal is not accept. It shows black Image and LED flashing on main board. Please change HDMI source for test.
2. When HDMI accept. It shows correct image and LED is blue.
This Board work with PC and Raspberry Pi. The image not support Scaling. It shows image depend on HDMI input source.
Turn On
aConnect Converter Board With LCD Screen Interface
bConnect Converter Board With 60Pin Cable
cConnect Main Board With 60Pin Cable
dInsert HDMI Type Cable
eTurn On 5Vdc or USB as Power Supply
Turn Off
aTurn Off 5Vdc or Remove USB Power Adapter
bRemove HDMI Cable
cDisconnect Main Board With 60Pin Cable
dDisconnect Converter Board With 60Pin Cable
eDisconnect 60Pin Cable With LCD Screen
For PC:
1. Most of MIPI screen for vertical display. Need to adjust computer graphics mode.
2. Replication Mode - Extended mode - Vertical and Horizontal adjustment.
For Raspberry Pi
1. The Main Board Four Locating Holes Compatible With Raspberry Pi.
2. Different Raspberry Pi are set differently. Please connect with Raspberry Pi Technical support.
