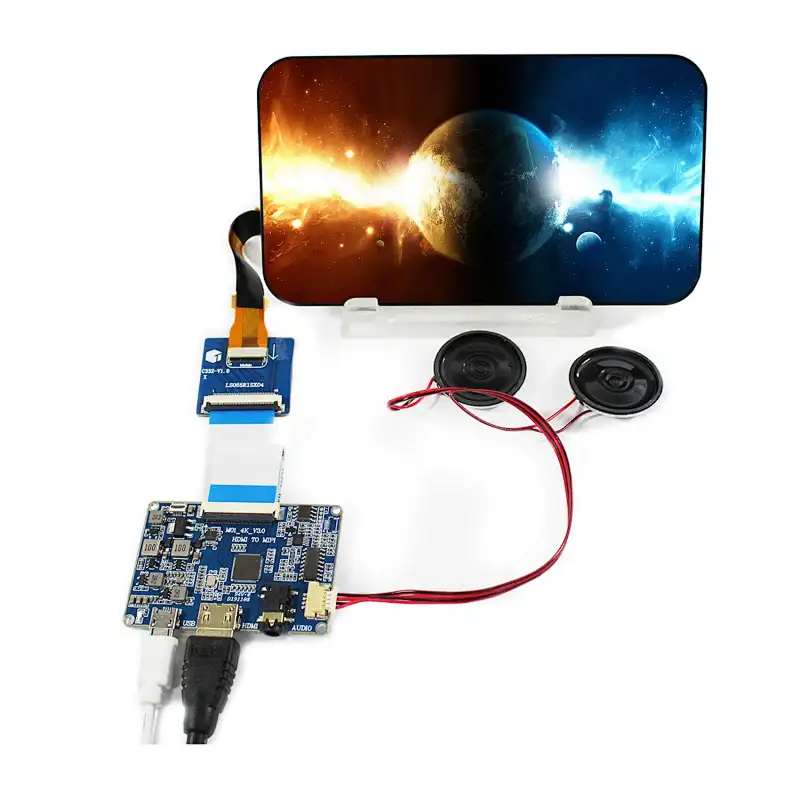

5.5inch LS055R1SX04 1440X2560 TFT-LCD Screen With HD-MI To Mipi LCD Controller Board
5.5inch LS055R1SX04 1440X2560 TFT-LCD Screen With HD-MI To Mipi LCD Controller Board
5.5inch LS055R1SX04 1440X2560 TFT-LCD Screen With HD-MI To Mipi LCD Controller Board
5.5inch LS055R1SX04 1440X2560 TFT-LCD Screen With HD-MI To Mipi LCD Controller Board
5.5inch LS055R1SX04 1440X2560 TFT-LCD Screen With HD-MI To Mipi LCD Controller Board
5.5inch LS055R1SX04 1440X2560 TFT-LCD Screen With HD-MI To Mipi LCD Controller Board
5.5inch LS055R1SX04 1440X2560 TFT-LCD Screen With HD-MI To Mipi LCD Controller Board
5.5inch LS055R1SX04 1440X2560 TFT-LCD Screen With HD-MI To Mipi LCD Controller Board
5.5inch LS055R1SX04 1440X2560 TFT-LCD Screen With HD-MI To Mipi LCD Controller Board

5.5inch LS055R1SX04 1440X2560 TFT-LCD Screen With HD-MI To Mipi LCD Controller Board

Model NO.
K0027001-VS-CXMIPI-V1+LS055R1SX04 1440x2560
Quantity:

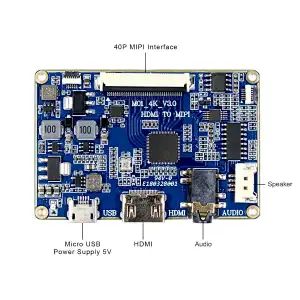

LCD Controller Board:
HD-MI Board Work for 40Pin Mipi LCD Screen
Input Power Adapter: 5Vdc More than 1A. Mirco USB
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HD-MI
Audio Output: Speaker Earphone
Board Size: 60mm x 40mm x 3mm

5.5"LS055R1SX04  1440X2560 LCD Screen:
DisplayNew Mode2, Normally Black, Transmissive
Resolution 1440RGB)×2560
Outline Size 70.94 ×128.49×1.45(H×V×D)
Display Area 68.04× 120.96 (H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface MIPI (2 ch, 4 data lanes) , 50 pins , Connector
Backlight  WLED
Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)

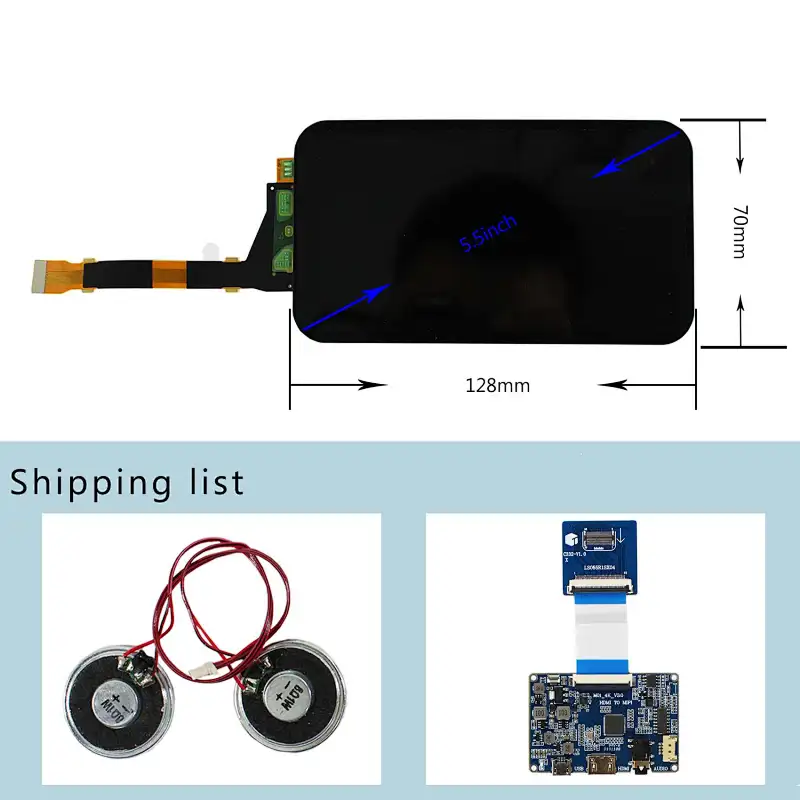

Packing list:
1× HD-MI To Mipi LCD Controller Board VS-CXMIPI-V1
1× 5.5inch LS055R1SX04 1440X2560 LCD Screen
1× Signal Cable
1× Converter Board
