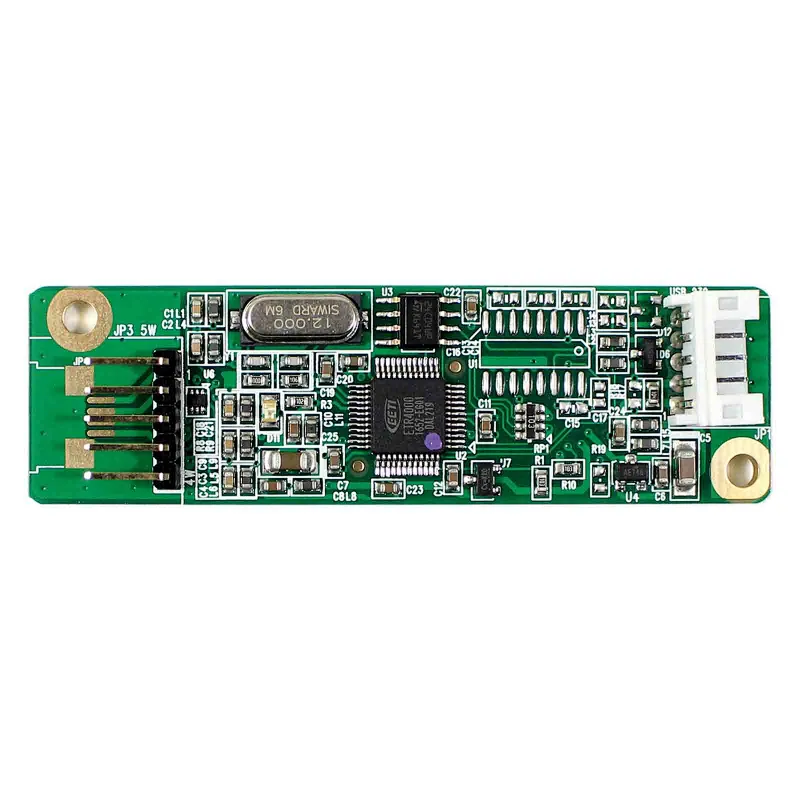

Model NO.
T000005-Controller Card
Quantity:

Description:

Hantouch launched touch control board to meet latest Restriction of Hazardous Substances (RoHS) Directive.

This touch panel controller provides the optimistic performance of your analog resistive touch panels for 4-wire models.

 It communicates with PC system directly through RS232 connector.

You can see how superior the design is in sensitivity accuracy and friendly operation.

 The touch panel driver emulates mouse left and right button function and supports operation systems as following.

RS232 Type Controller

Dimension Size: 71mm x 20mm x 10mm

Power Requirements D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)

Operating Temperature 0 to 50°C

Storage Temperature -40 to 80°C

Relative Humidity 95% at 60°C

Interface USB 1.1 & 2.0

Resolution 2048×2048 resolution

Report rate RS232 Model: Max. 160 points/sec

Response time Max. 20 ms

Attached Cable 6' shielded cable with USB-A connector for USB port

Regulatory Approvals FCC-B , CE, Unaffected by EMI from other nearly and other display devices

EMI Unaffected by environmental EMI

Panel resistance 5 wire resistive model: 200 ~ 900 ohm

MTBF 200,000 hrs

PIN1: Y- PIN2: X- PIN4: COM PIN4: Y+ PIN5: X+


Packing list :
1× 5-Wire RS232 Controller Card
1× RS232 Cable
1× Converter Cable
