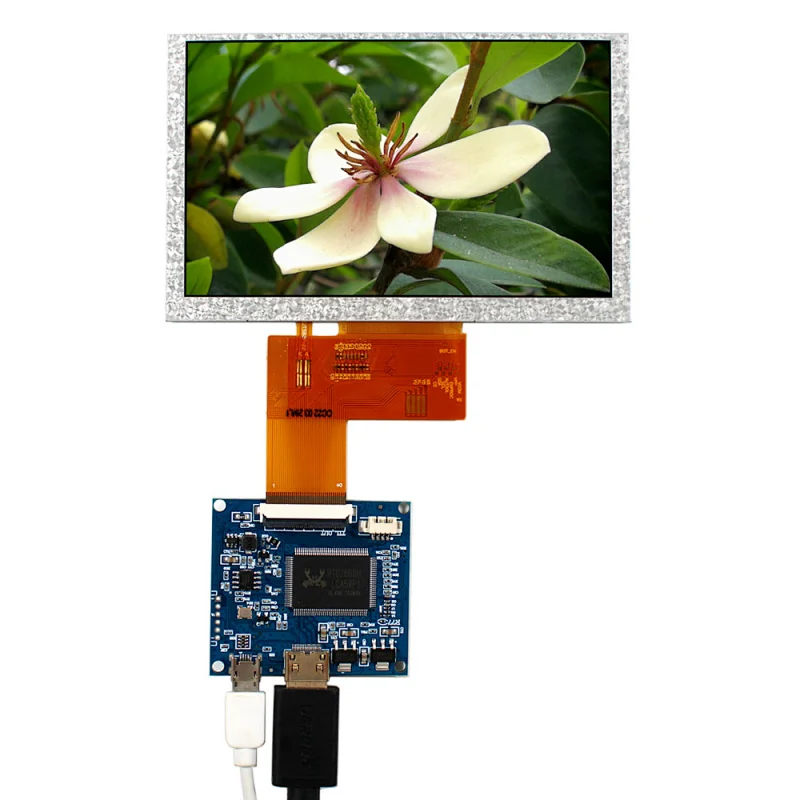

5inch VS050T-002A 800X480 TFT-LCD Screen With HDMI-mini Connector LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen With HDMI-mini Connector LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen With HDMI-mini Connector LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen With HDMI-mini Connector LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen With HDMI-mini Connector LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen With HDMI-mini Connector LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen With HDMI-mini Connector LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen With HDMI-mini Connector LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen With HDMI-mini Connector LCD Controller Board

5inch VS050T-002A 800X480 TFT-LCD Screen With HDMI-mini Connector LCD Controller Board

Model NO.
K002987-VS-TY2660V1-851 HDMI 5V+VS050TP-00A
Quantity:

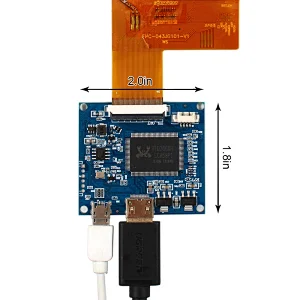

LCD Controller Board:
HDMI-mini LCD Board Work for 40Pin TTL LCD Screen
Input Power Adapter: DP 5V-9V dc More than 20W.
Come In Standby Model When Not Input Signal
Video Input: HDMI-mini
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:52mm x 46mm x 6mm

5"VS050T-002A 800X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 120.7 × 76.3×3.3 (H×V×D)
Display Area 108 × 64.8 (H×V)
Brightness350 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface Parallel
(1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage  3.3V (Typ.)

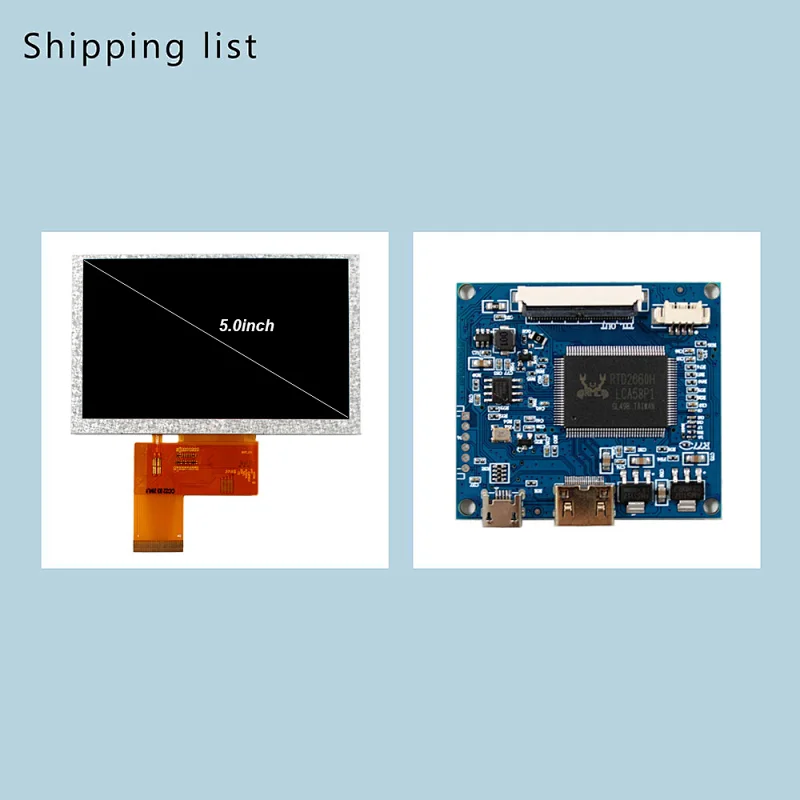

Packing list:
1×HDMI-mini LCD Controller Board VS-TY2660V1-851
1× 5inch VS050T-002A 800X480 LCD Screen
