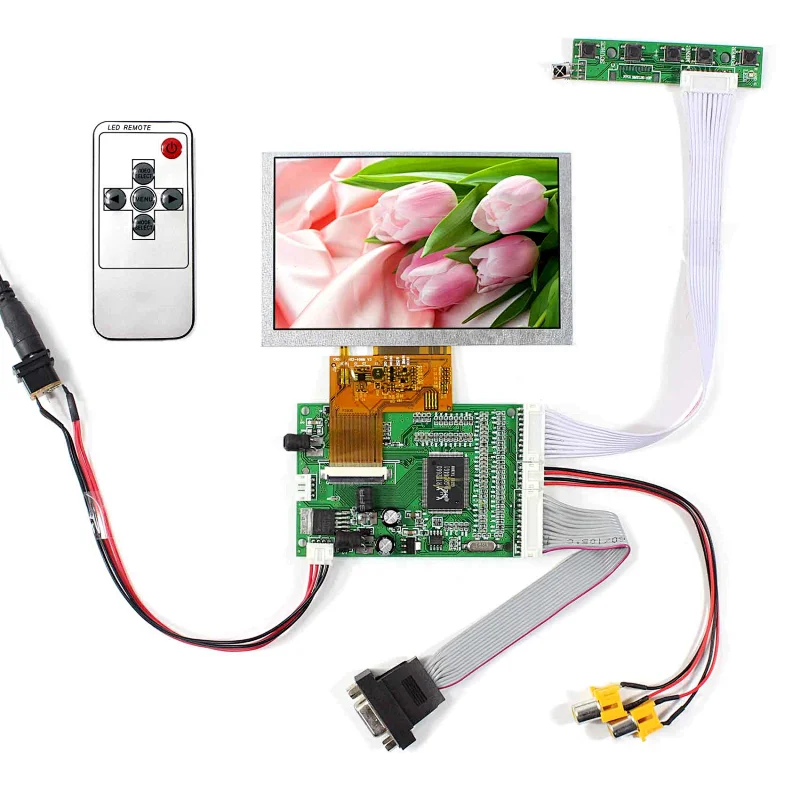

5inch VS050T-002A 800X480 TFT-LCD Screen with VGA+2AV LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen with VGA+2AV LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen with VGA+2AV LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen with VGA+2AV LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen with VGA+2AV LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen with VGA+2AV LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen with VGA+2AV LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen with VGA+2AV LCD Controller Board
5inch VS050T-002A 800X480 TFT-LCD Screen with VGA+2AV LCD Controller Board

5inch VS050T-002A 800X480 TFT-LCD Screen with VGA+2AV LCD Controller Board

Model NO.
K000110-VS-TY40-V1+AT050TN43 VS050T-002A+Remote control
Quantity:

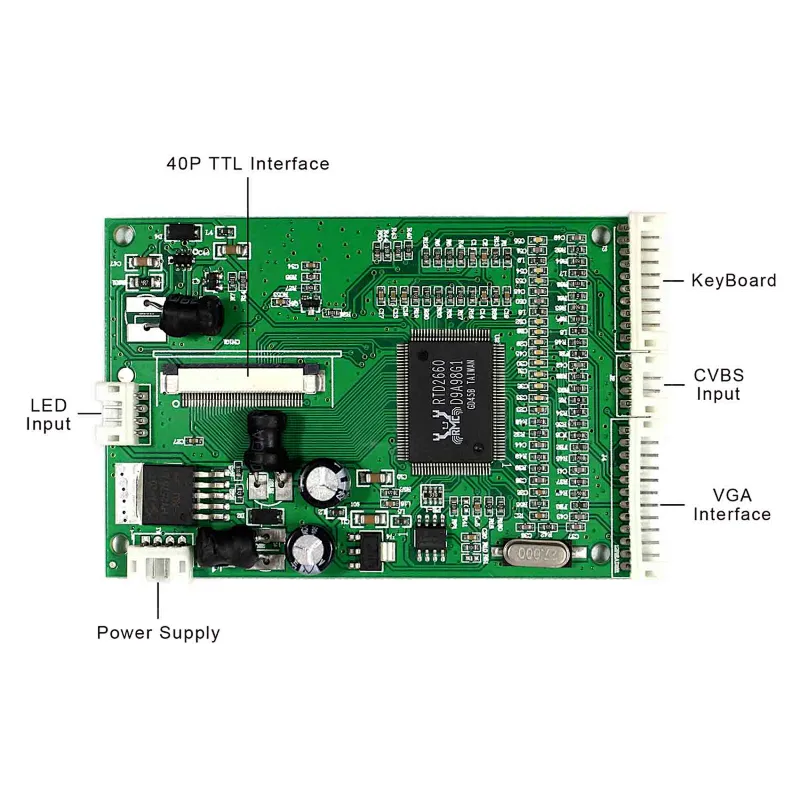

LCD Controller Board:
VGA 2AV LCD Board Work for 40Pin TTL LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 83mm x 58mm x 10mm

5"VS050T-002A 800X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution800RGB)×480
Outline Size 120.7 × 76.3×3.3 (H×V×D)
Display Area 108 × 64.8 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface Parallel
(1 ch, 8-bit) , 40 pins , FPC
Backlight  WLED
Input Voltage  3.3V (Typ.)

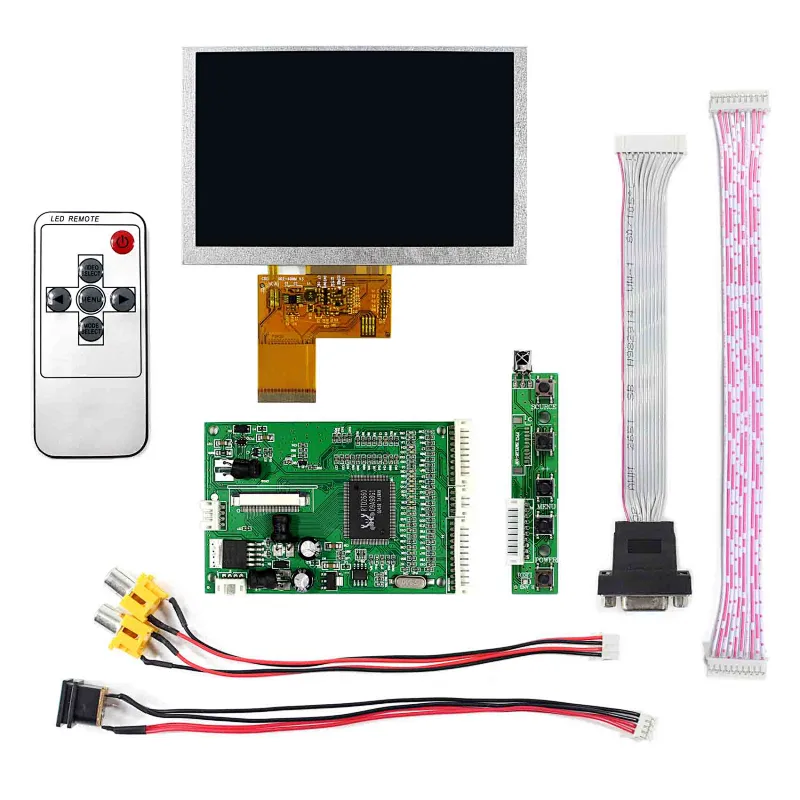

Packing list :
1×VGA+2AV LCD Controller Board VS-TY40-V1
 5inch VS050T-002A 800X480 LCD Screen
1× VGA Cable
1× AV Signal Cable
1× Power Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
