7inch 4-Wire Resistive Touch Panel Screen VS070TP-A6 tft resistive touch screen
7inch 4-Wire Resistive Touch Panel Screen VS070TP-A6 tft resistive touch screen
7inch 4-Wire Resistive Touch Panel Screen VS070TP-A6 tft resistive touch screen
7inch 4-Wire Resistive Touch Panel Screen VS070TP-A6 tft resistive touch screen
7inch 4-Wire Resistive Touch Panel Screen VS070TP-A6 tft resistive touch screen
7inch 4-Wire Resistive Touch Panel Screen VS070TP-A6 tft resistive touch screen
7inch 4-Wire Resistive Touch Panel Screen VS070TP-A6 tft resistive touch screen
7inch 4-Wire Resistive Touch Panel Screen VS070TP-A6 tft resistive touch screen
7inch 4-Wire Resistive Touch Panel Screen VS070TP-A6 tft resistive touch screen

7inch 4-Wire Resistive Touch Panel Screen VS070TP-A6 tft resistive touch screen

Model NO.
K000001 VS070TP-A6
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1 piece
Supply Ability
100000.0 piece / Day
Country of Origin
CHINA
Stock Time
3-7days Days
Quantity:
  • Description:

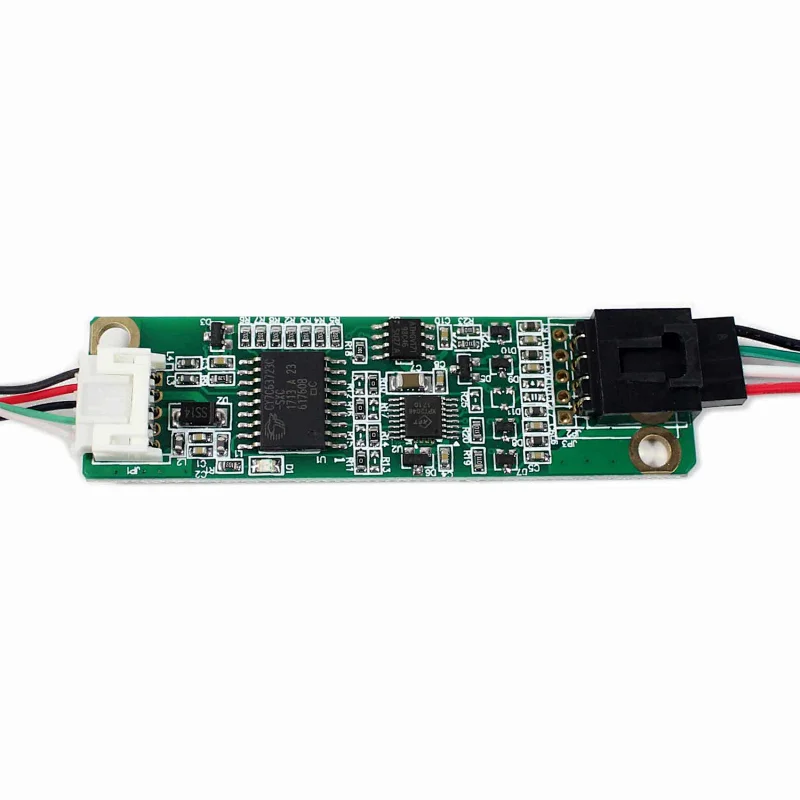

    USB Type Controller

    Dimension Size: 71mm x 20mm x 10mm

    Power Requirements D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)

    Operating Temperature 0 to 50°C

    Storage Temperature -40 to 80°C

    Relative Humidity 95% at 60°C

    Interface USB 1.1 & 2.0

    Resolution 2048×2048 resolution

    Report rate USB Model: Max. 160 points/sec

    Response time Max. 20 ms

    Attached Cable 6' shielded cable with USB-A connector for USB port

    Regulatory Approvals FCC-B , CE, Unaffected by EMI from other nearly and other display devices

    EMI Unaffected by environmental EMI

    Panel resistance 4 wire resistive model: 200 ~ 900 ohm

    MTBF 200,000 hrs

    PIN1: Y- PIN2: X- PIN3: Y+ PIN4: X+

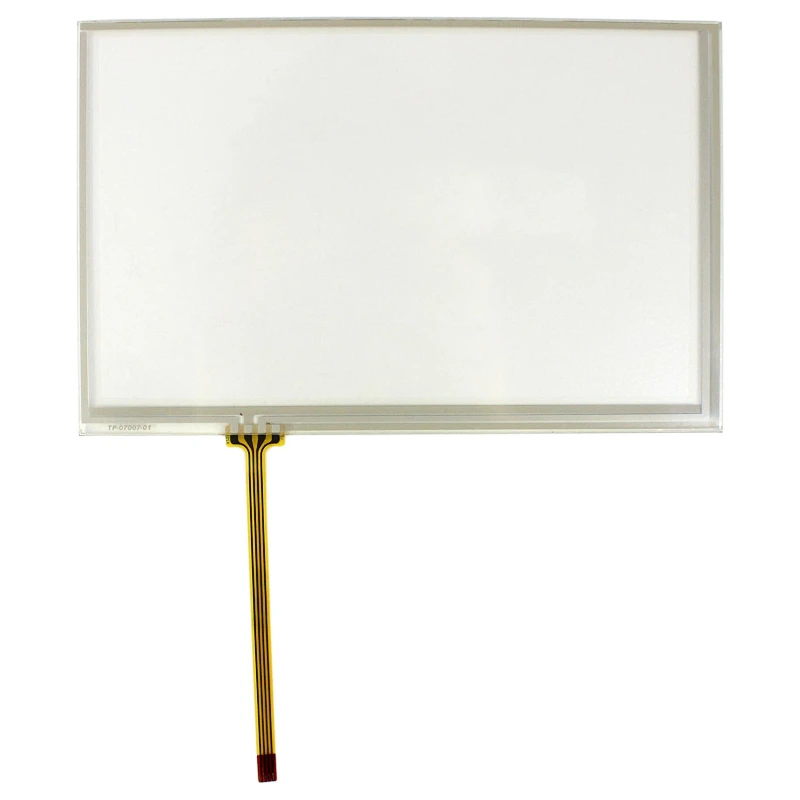

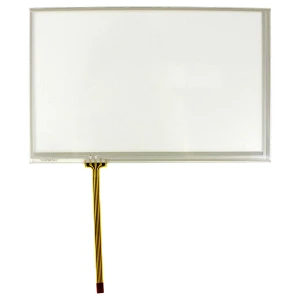

    Touch Panel

    Dimension Size: 165mm x 104mm

    Display Area: 155mm x 94 mm

    FPC connector: 4pin 0.5mm pitch bottom contact.

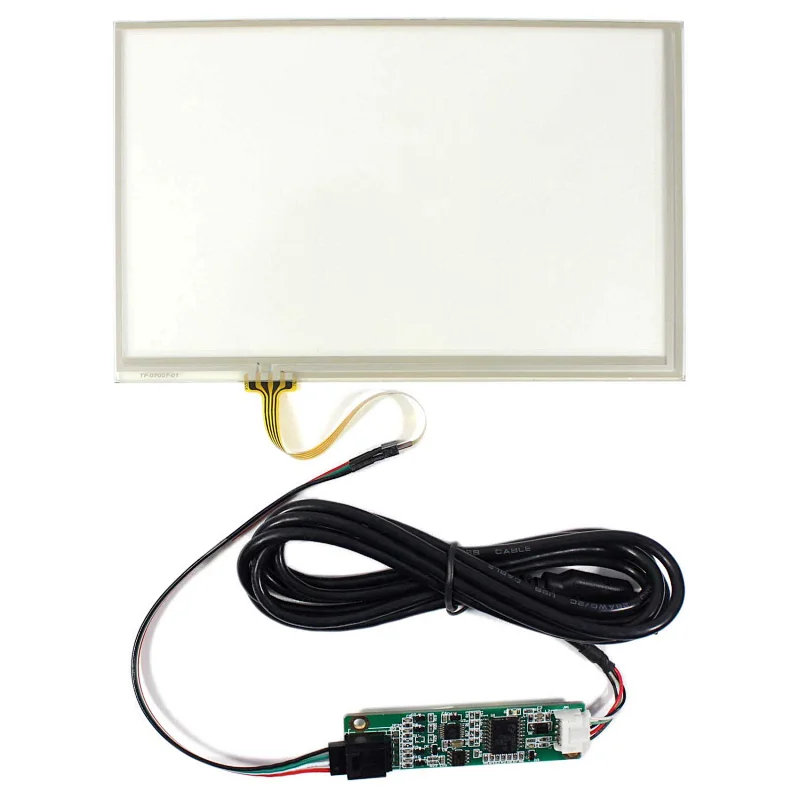

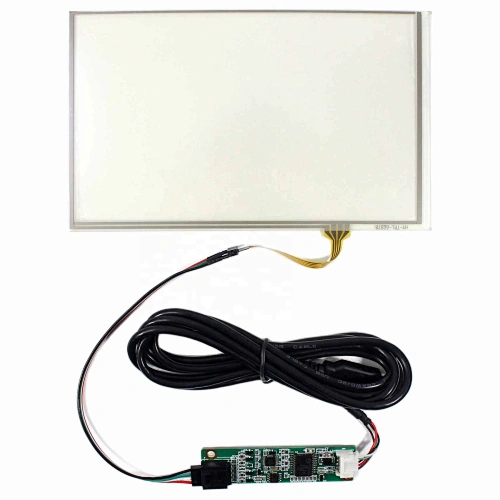

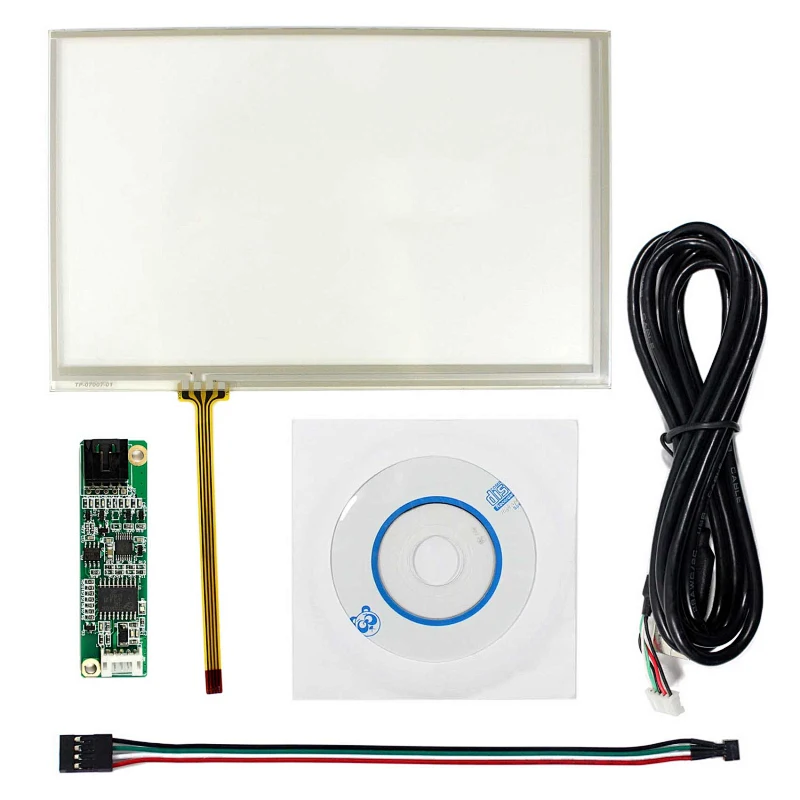

  • Packing list :

    1× 7inch 4-Wire Resistive Touch Panel Screen VS070TP-A6

    1× 4-Wire USB Controller Card

    1× USB Cable

    1× Converter Cable

    1× CD (Driver for touch control card Support LINUX Windows CE XP and Win7)
