8inch AT080TN64 800X480 LCD Screen with HDMI LCD Controller Board
8inch AT080TN64 800X480 LCD Screen with HDMI LCD Controller Board
8inch AT080TN64 800X480 LCD Screen with HDMI LCD Controller Board
8inch AT080TN64 800X480 LCD Screen with HDMI LCD Controller Board
8inch AT080TN64 800X480 LCD Screen with HDMI LCD Controller Board
8inch AT080TN64 800X480 LCD Screen with HDMI LCD Controller Board
8inch AT080TN64 800X480 LCD Screen with HDMI LCD Controller Board
8inch AT080TN64 800X480 LCD Screen with HDMI LCD Controller Board
8inch AT080TN64 800X480 LCD Screen with HDMI LCD Controller Board

8inch AT080TN64 800X480 LCD Screen with HDMI LCD Controller Board

Model NO.
K001988- VS-TY2660H-V812+AT080TN64
Quantity:

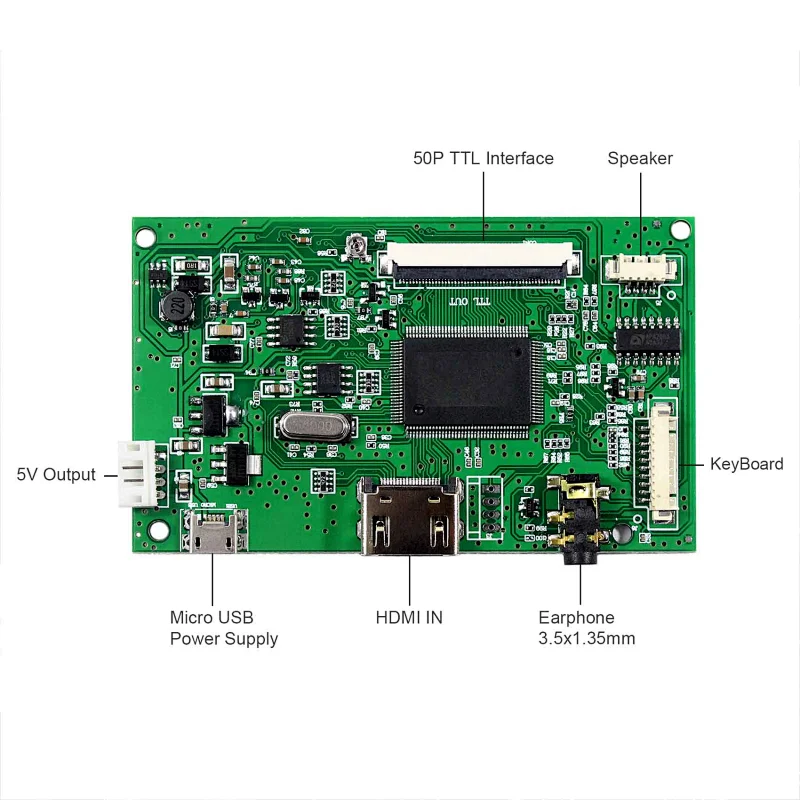

LCD Controller Board:
HDMI LCD Board Work for 50P TTL Interface LCD Screen
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI
Audio: Earphone
Power Connector: PH2.0 Micro USB
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 88mm x 53mm x 7mm
8"AT080TN64 800X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 192.6 × 116.9×6.7 (H×V×D)
Display Area 176.64 × 99.36 (H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight  WLED
Input Voltage  3.3V (Typ.)
Packing list :
1× HDMI LCD Controller Board VS-TY2660H-V812
1× 8inch AT080TN64 800X480 LCD Screen
1× USB Power Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
