8inch HJ080IA-01E 1024X768 IPS TFT-LCD Screen With HDMI+VGA+2AV LCD Controller Board
8inch HJ080IA-01E 1024X768 IPS TFT-LCD Screen With HDMI+VGA+2AV LCD Controller Board
8inch HJ080IA-01E 1024X768 IPS TFT-LCD Screen With HDMI+VGA+2AV LCD Controller Board
8inch HJ080IA-01E 1024X768 IPS TFT-LCD Screen With HDMI+VGA+2AV LCD Controller Board
8inch HJ080IA-01E 1024X768 IPS TFT-LCD Screen With HDMI+VGA+2AV LCD Controller Board
8inch HJ080IA-01E 1024X768 IPS TFT-LCD Screen With HDMI+VGA+2AV LCD Controller Board
8inch HJ080IA-01E 1024X768 IPS TFT-LCD Screen With HDMI+VGA+2AV LCD Controller Board
8inch HJ080IA-01E 1024X768 IPS TFT-LCD Screen With HDMI+VGA+2AV LCD Controller Board
8inch HJ080IA-01E 1024X768 IPS TFT-LCD Screen With HDMI+VGA+2AV LCD Controller Board

8inch HJ080IA-01E 1024X768 IPS TFT-LCD Screen With HDMI+VGA+2AV LCD Controller Board

Model NO.
K001395-VS-TY2662-V666+EJ080IA-01E
Quantity:

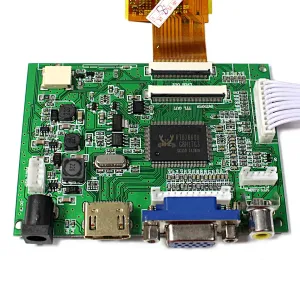

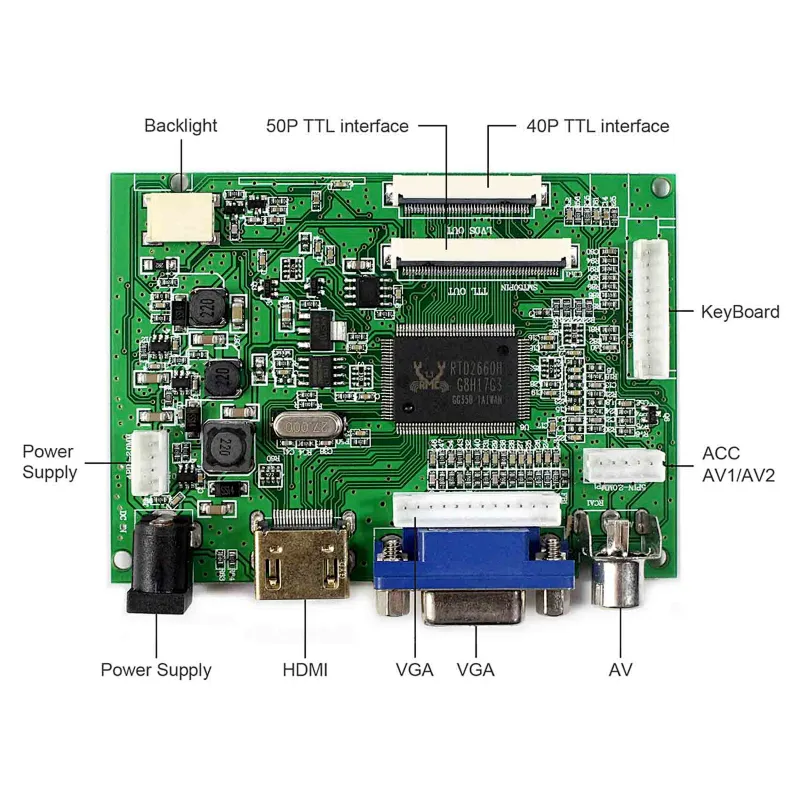

LCD Controller Board:
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm

8"HJ080IA-01E 1024X768 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1024RGB)×768
Outline Size 174 × 136×2.75 (H×V×D)
Display Area 162.08 × 121.54(H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

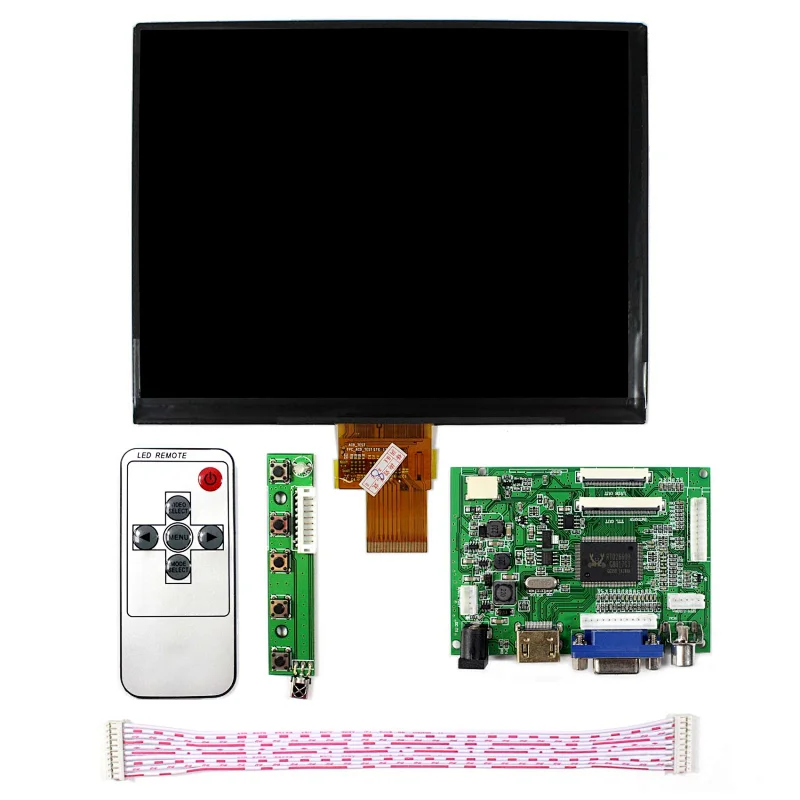

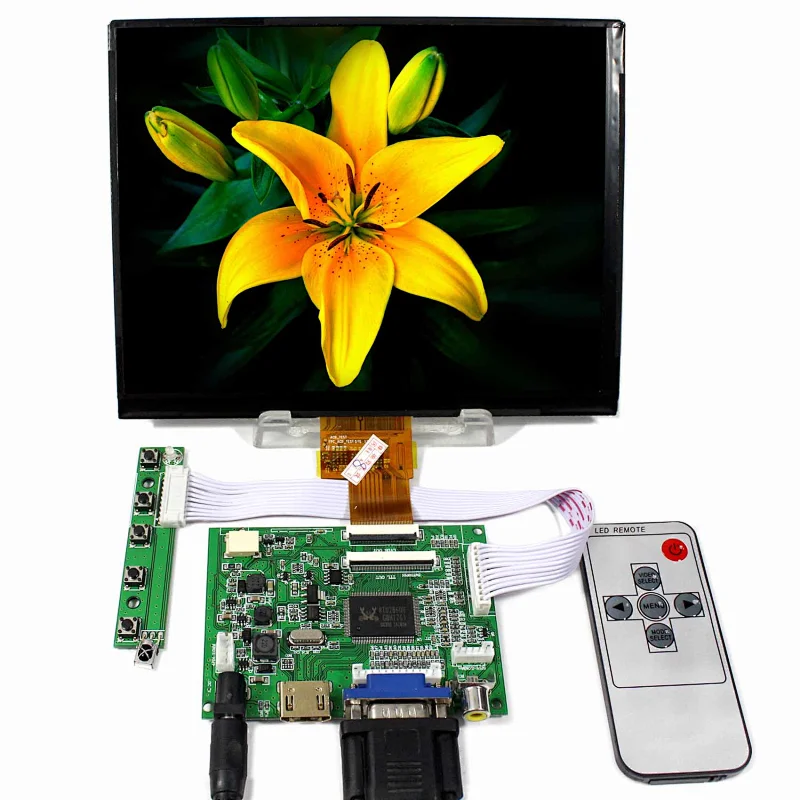

Packing list :

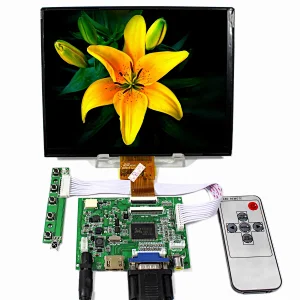

1× HDMI+VGA+2AV LCD Controller Board VS-TY2662-V5
1× 8inch HJ080IA-01E 1024X768 IPS LCD Screen
1× Keyboard With Cable
1× Remote Control (Battery Not included)
