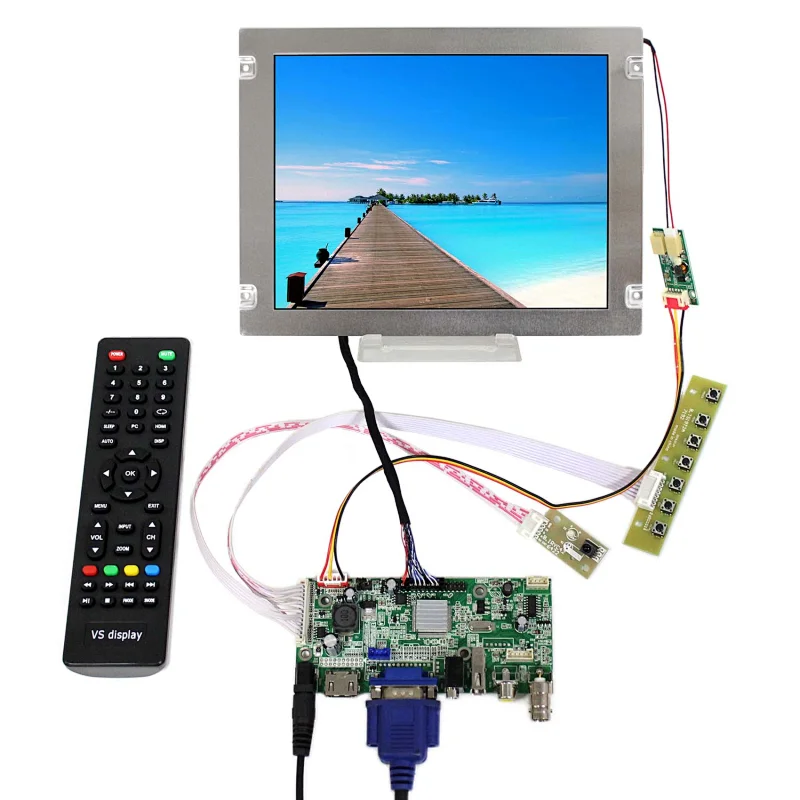

8inch PD080SL3 800X600 LCD Screen with HDMI+VGA+AV+USB LCD Controller Board
8inch PD080SL3 800X600 LCD Screen with HDMI+VGA+AV+USB LCD Controller Board
8inch PD080SL3 800X600 LCD Screen with HDMI+VGA+AV+USB LCD Controller Board
8inch PD080SL3 800X600 LCD Screen with HDMI+VGA+AV+USB LCD Controller Board
8inch PD080SL3 800X600 LCD Screen with HDMI+VGA+AV+USB LCD Controller Board
8inch PD080SL3 800X600 LCD Screen with HDMI+VGA+AV+USB LCD Controller Board
8inch PD080SL3 800X600 LCD Screen with HDMI+VGA+AV+USB LCD Controller Board
8inch PD080SL3 800X600 LCD Screen with HDMI+VGA+AV+USB LCD Controller Board
8inch PD080SL3 800X600 LCD Screen with HDMI+VGA+AV+USB LCD Controller Board
8inch PD080SL3 800X600 LCD Screen with HDMI+VGA+AV+USB LCD Controller Board
8inch PD080SL3 800X600 LCD Screen with HDMI+VGA+AV+USB LCD Controller Board

8inch PD080SL3 800X600 LCD Screen with HDMI+VGA+AV+USB LCD Controller Board

Model NO.
K002619-VS-V59AV-V1+PD080SL3-22 800x600
Quantity:

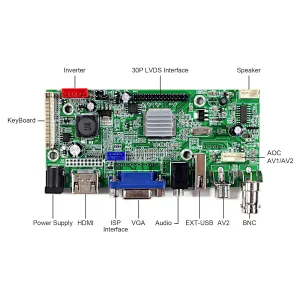

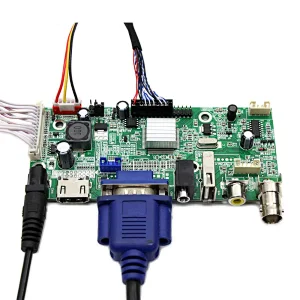

LCD Controller Board:
HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
USB Support Video
AV1 AV2 Compatible With PAL And NTSC
Video Input: HDMI VGA AV1 AV2 USB
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 118mm x 54mm x 17mm

8.0"PD080SL3 800X600 LCD Screen:
DisplayNew Mode TN, Normally White, Transmissive
Resolution 800(RGB)x600
Outline Size 200x152x10.8 (HxVxD)mm
Display Area 162x121.5 (HxV)mm
Brightness420 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 60/60/45/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit), 20Pins Connector
Backlight  WLED
Input Voltage 3.3V (Typ.)

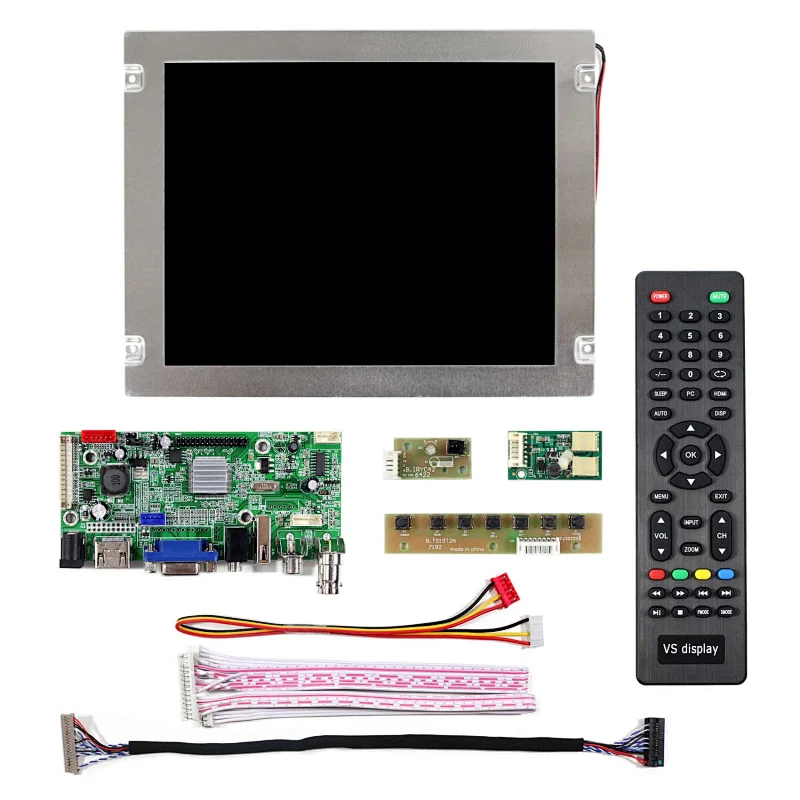

Packing list:
1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
8inch PD080SL3 800X600 LCD Screen
1× 20Pins LVDS Cable
1× Inverter Board
Backlight Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
