8inch ZJ080NA-08A 1024X600 LCD Screen with HDMI VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 LCD Screen with HDMI VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 LCD Screen with HDMI VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 LCD Screen with HDMI VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 LCD Screen with HDMI VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 LCD Screen with HDMI VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 LCD Screen with HDMI VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 LCD Screen with HDMI VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 LCD Screen with HDMI VGA+2AV LCD Controller Board

8inch ZJ080NA-08A 1024X600 LCD Screen with HDMI VGA+2AV LCD Controller Board

Model NO.
K002489-VS-TY2660-899+ZJ080NA-08A
Quantity:

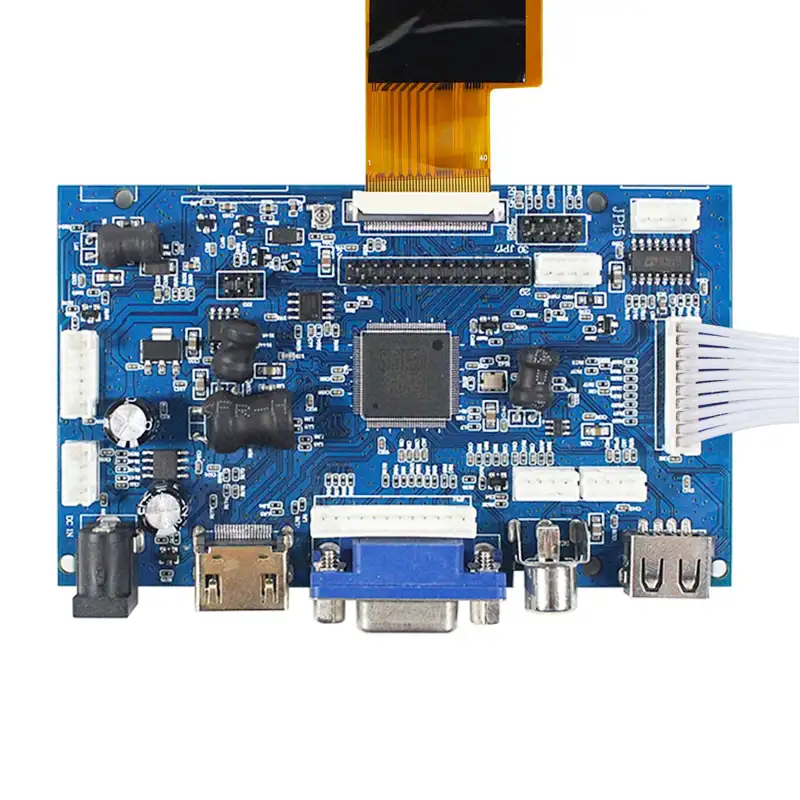

LCD Controller Board:
HDMI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HDMI VGA AV1 AV2 USB
HDMI: Support HDMI 1.4
VGA: Support Audio Input
CVBS2 Channel AV-CVBS
ReversingFunction: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2
USB: Support VideoPlayback,PicturePlayback,TextPlayback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of thedriver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 110mm x 66mm x 12mm

8"ZJ080NA-08A 1024X600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 192.8 × 116.9×6.7 (H×V×D)
Display Area 176.64 × 99.36(H×V)
Brightness 500 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight  WLED
Input Voltage  3.3V (Typ.)

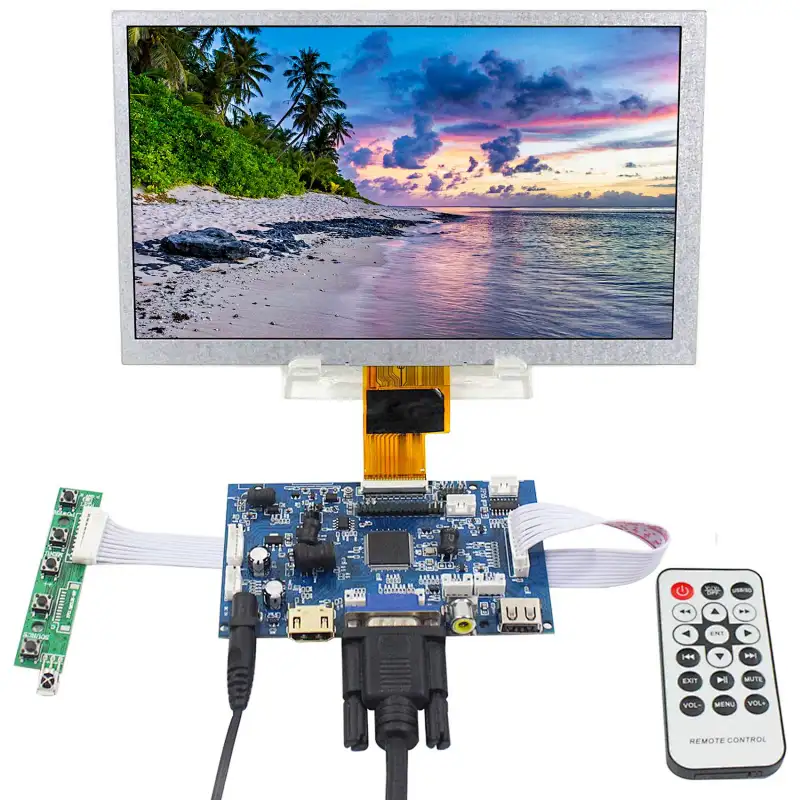

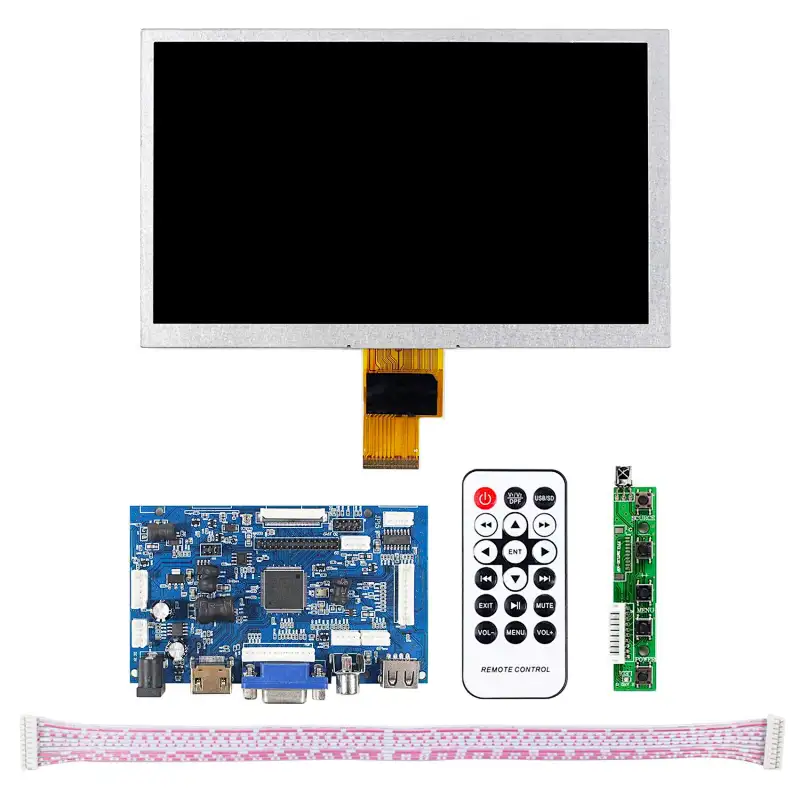

Packing list :
1× HDMI VGA+2AV LCD Controller Board VS-TY2660H-V899
1× 8inch ZJ080NA-08A 1024X600 LCD Screen
1×Keyboard With Cable
1× Remote Control(Battery Not included)
