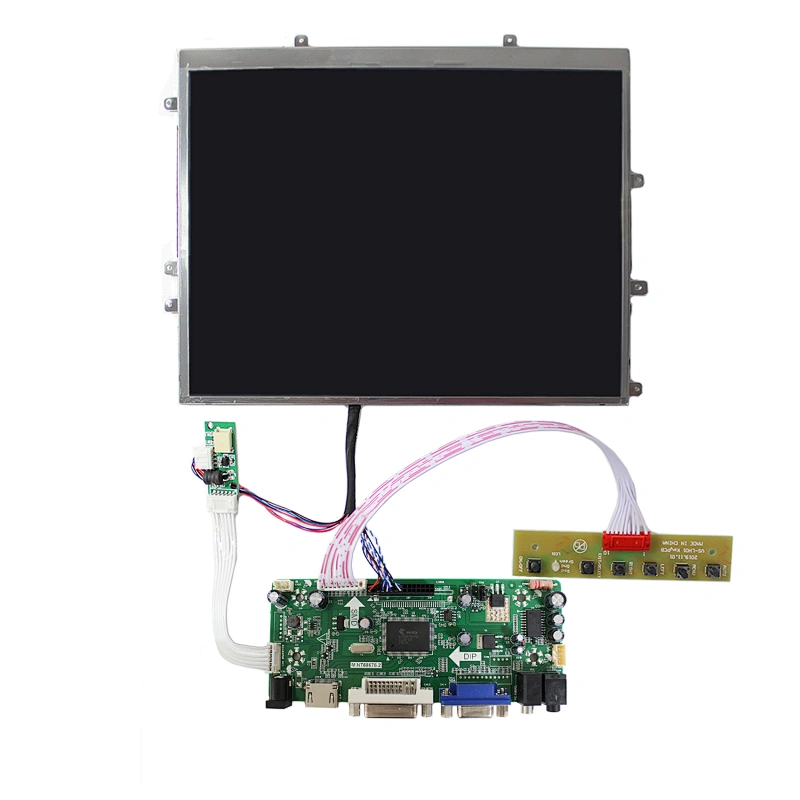

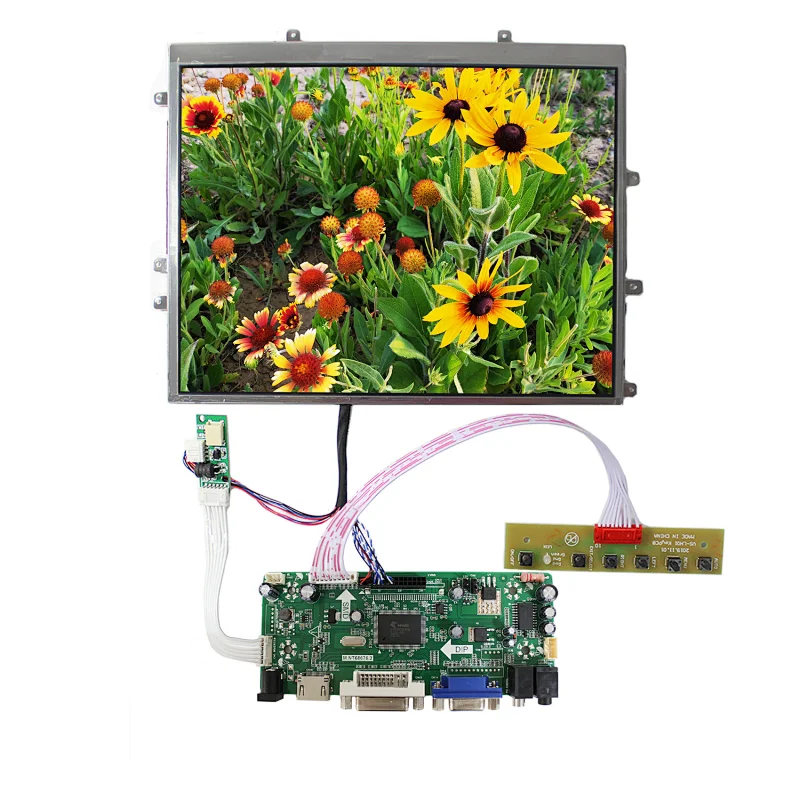

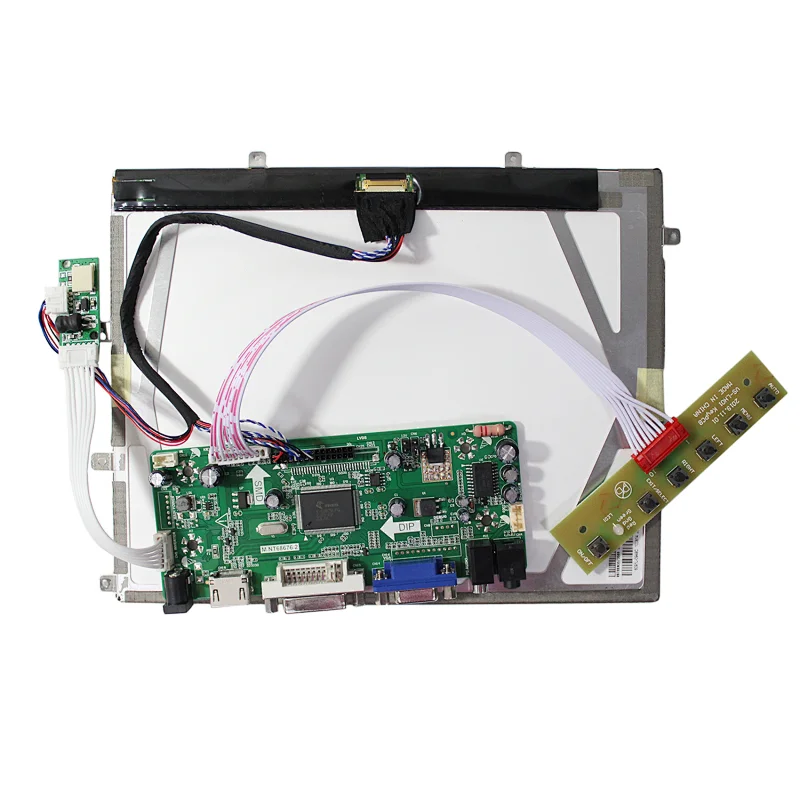

9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board

9.7inch 1024x768 IPS TFT-LCD Screen With HDMI VGA DVI LCD Controller Board

Model NO.
K000974- M.NT68676+9.7inch IPAD1
Quantity:

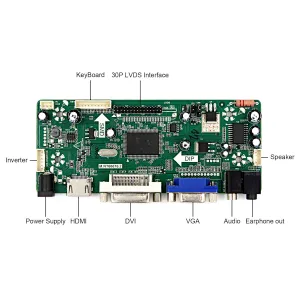

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
9.7"1024x768 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1024(RGB)×768[XGA]
Outline Size 210.53× 166.53×5.45 (H×V×D)
Display Area 196.6 ×147.5 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS(1ch 6bit) Connector 30Pin
Backlight  WLED
Input Voltage  3.3V (Typ.)

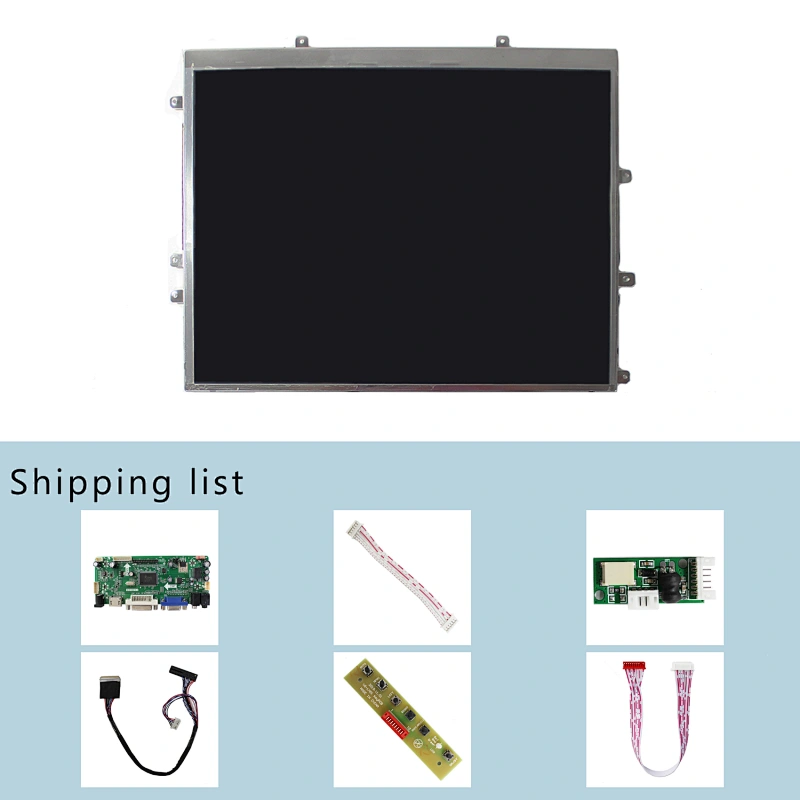

Packing list:

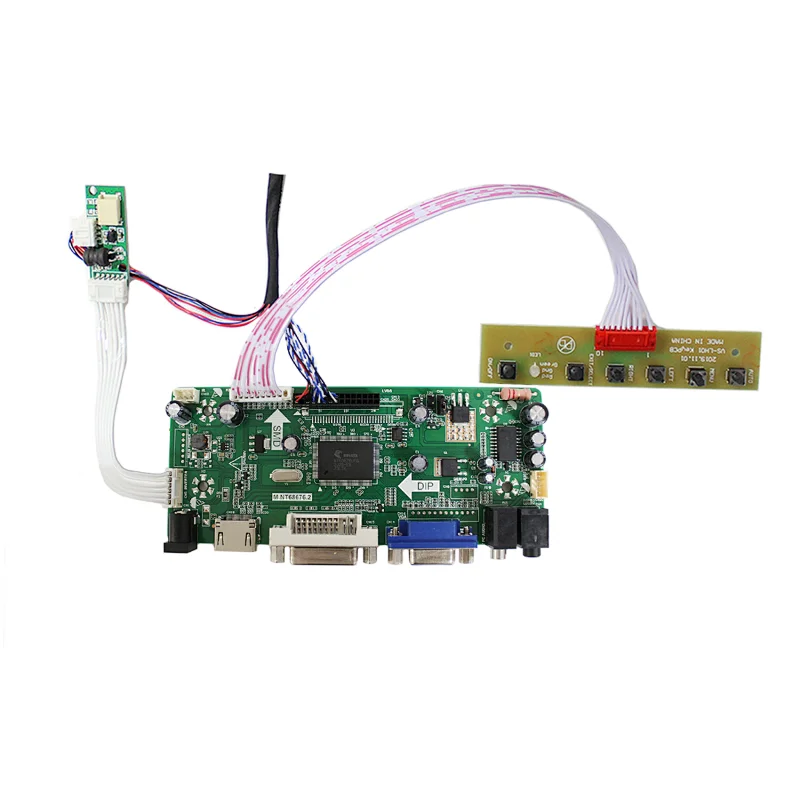

1× HDMI VGA DVI LCD Controller Board M.NT68676
1× 9.7"1024x768 IPS LCD Screen
1× Converter Board
1× 30Pin Signal Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
