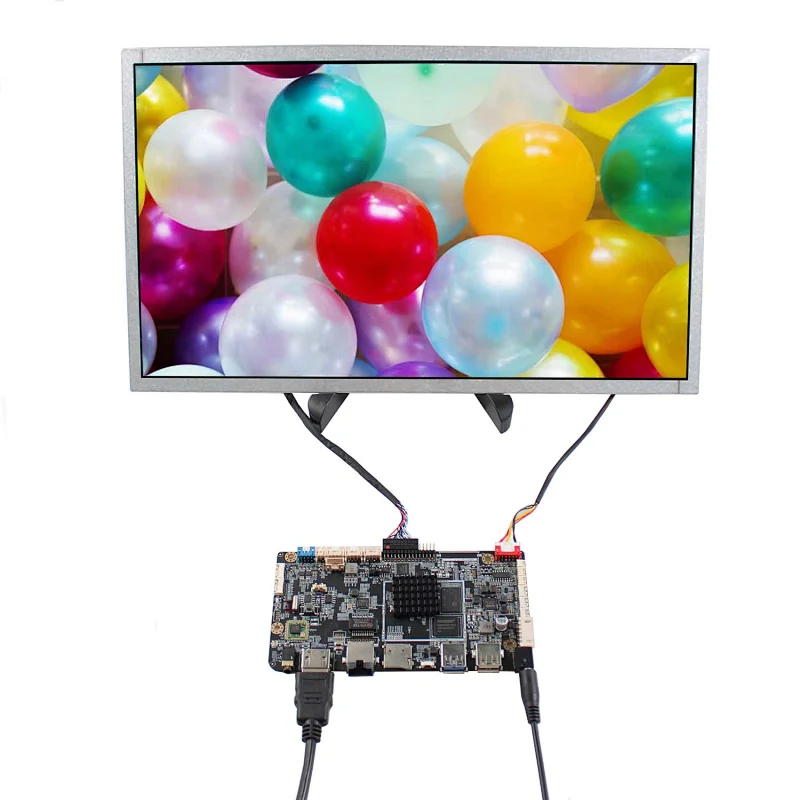

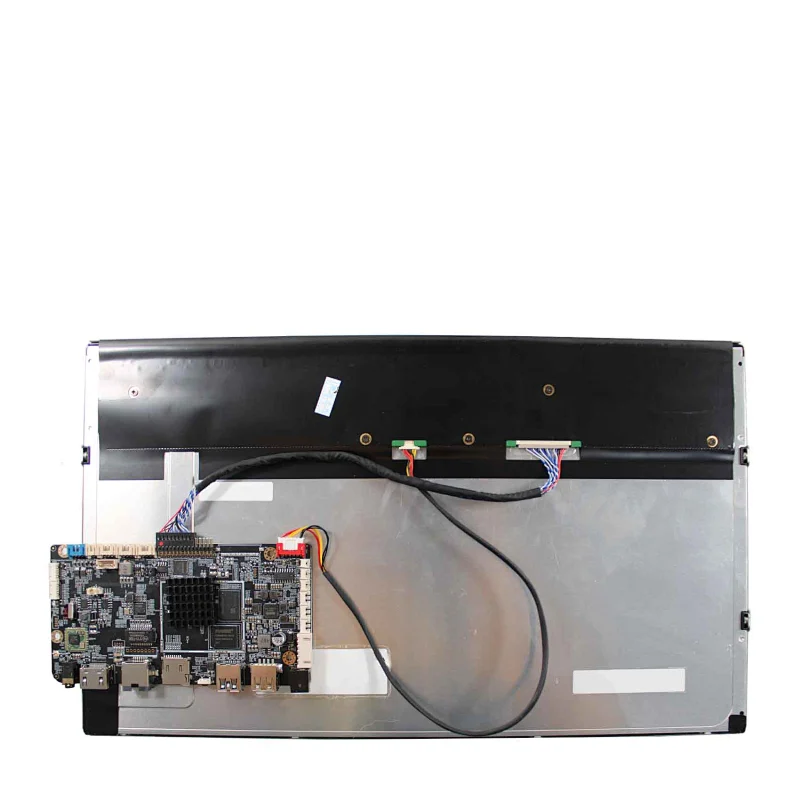

Android lcd control board with 15.6" AC156GA01 1366x768 tft lcd 15.6inch tft lcd panel

Model NO.
K003122 VS-YF-023D android 11+15.6" AC156GA01 1366x768
Delivery
EXW or FOB
Minimum order quantity
1 piece
Supply Ability
1000 piece / Day
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

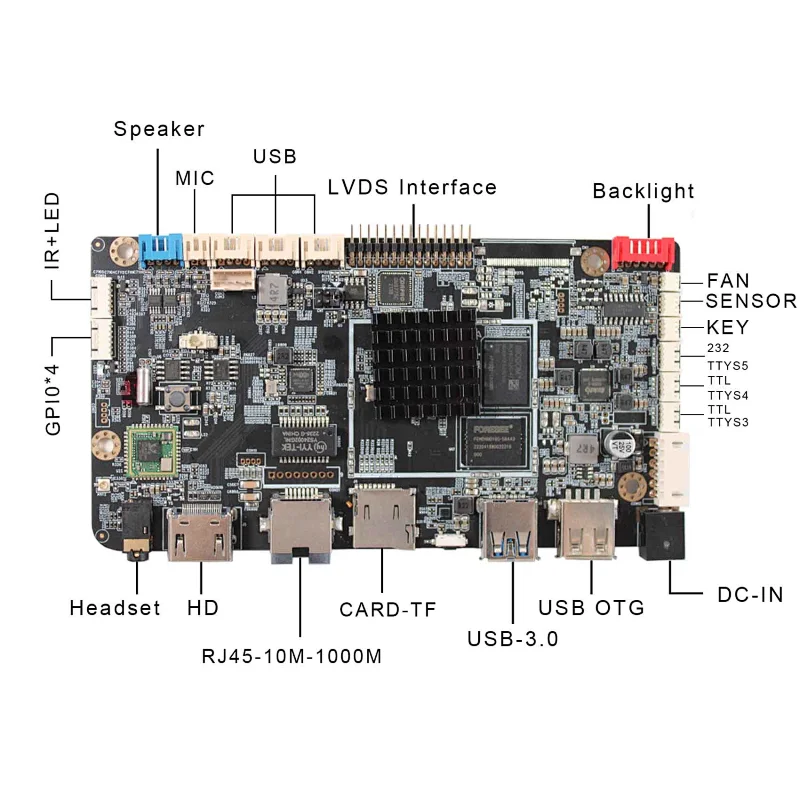

AndroidLCD Controller Board:

Android 11 Board Compatible With OpenGL ES 1.1/2.0/3.2OpenCL 2.0 Vulkan 1.1

CPU: RK3566 UP to1.8GHz

GPU: Mali-G52-2EE

NPU: 0.8T

Memory: 2G LPDDR4X/LPDDR4

Built-in Memory: EMMC16G/32G

Decoding Resolution: 1080P/H.265(4K2K)

Operating System: Android 11

USB: 5 x USB2.0 1 x USB3.0

HDMIUp to 3840x2160 eDPUp to 1920x180

LVDSUp to 1920x180 MIPIUp to 2560x1440

Audio Output: Speaker 8R/2W

Serial Port3 x TTL 1 x Debug 1x RS232

Input Power Adapter: 12Vdc more than 2A

Come In Standby Model When Not Input Signal

Standby Model <0.5W

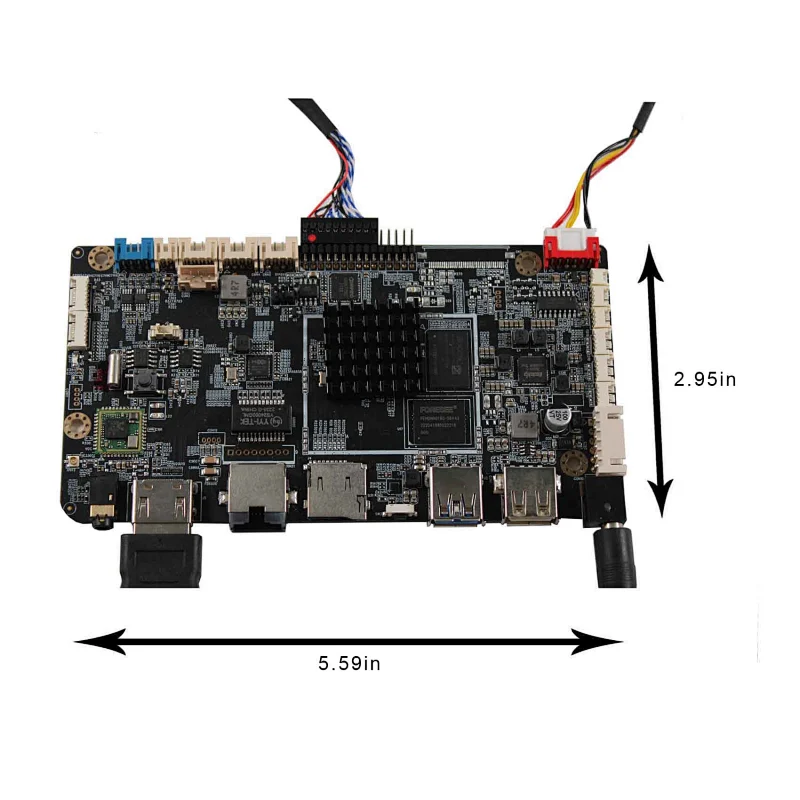

Board Size: 142mm x 75mm x 16mm

15.6"AC156GA01 1366X768 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1366(RGB)×768

Outline Size 363.8× 215.9×11.6 (H×V×D)

Active Area 344.232× 193.536(H×V)

Brightness 450 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.) (TM)

Viewing Angle 80/80/80/70 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel LVDS (1 ch, 8-bit) , 20 pins

Backlight WLED

Input Voltage 3.3V (Typ.)

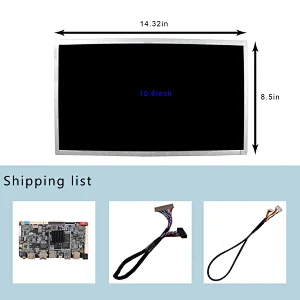

Packing list:

Android LCD Controller Board YF-023D Android 11

1x 15.6inch AC156GA01 1366X768 LCD Screen

1× LVDS Cable

1× Backlight Cable

1× Keyboard With Cable
