Model NO.
K002550-VS-TY2660H-V818+FIX30P双8+ for M215HW01 V0 1920x1080
Quantity:

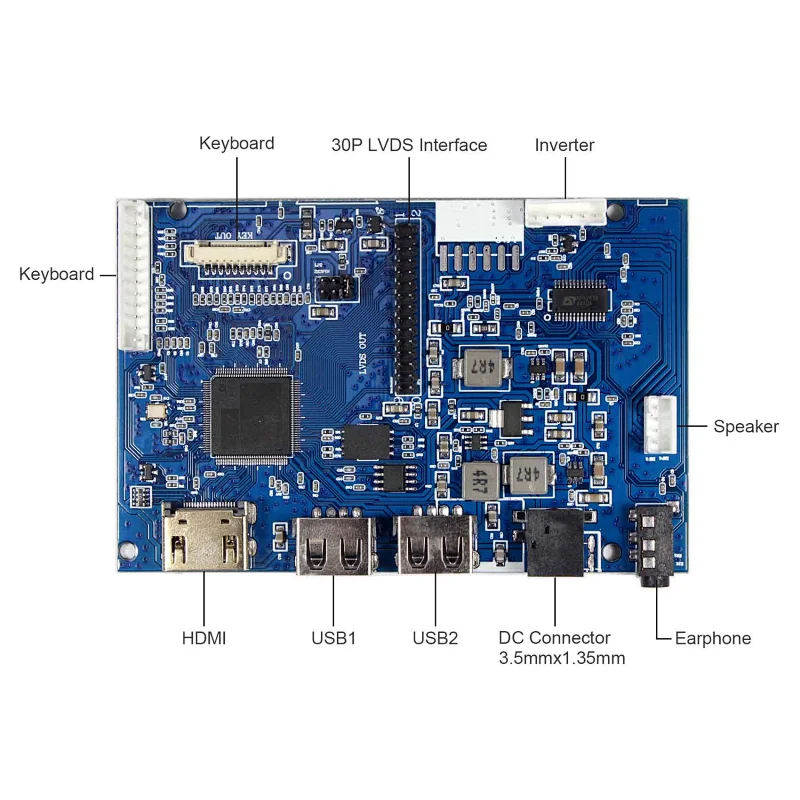

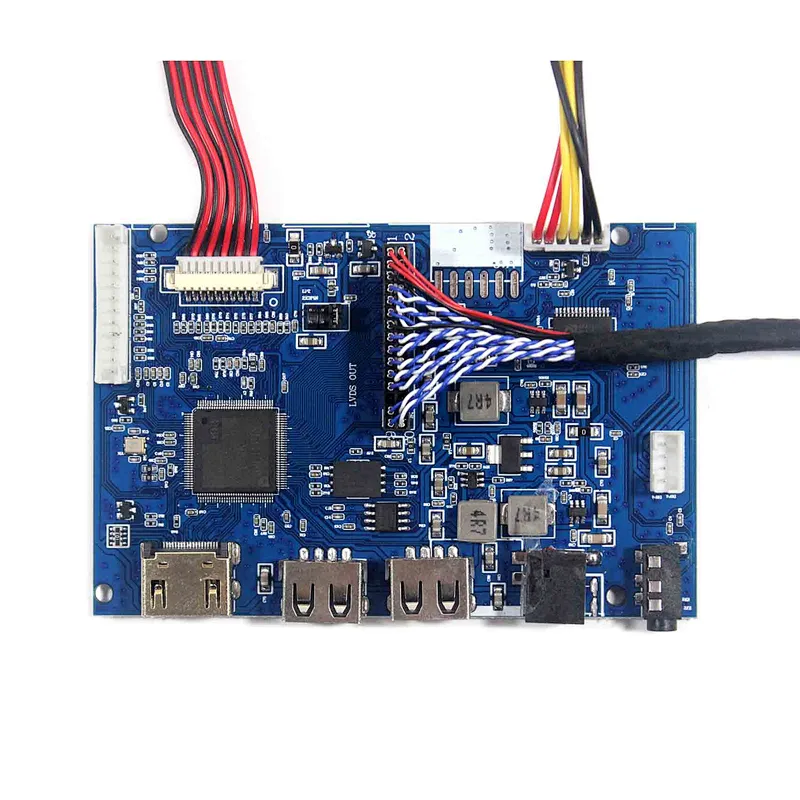

LCD Controller Board:
HDMI USB Android LCD Controller Board Work for LVDS 40Pin TTL LCD Screen
Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI1.4 USB
USB Port:
Support Video Play
Support WIFI Module
Support Connect Keyboard and mouse
Support 5Vdc 500mA output
Support OS Android Screen projection via USB Cable or wifi Module
Audio Input: HDMI
Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm
Compatible Work With:
21.5inch 1920x1080
M215HW01-V0

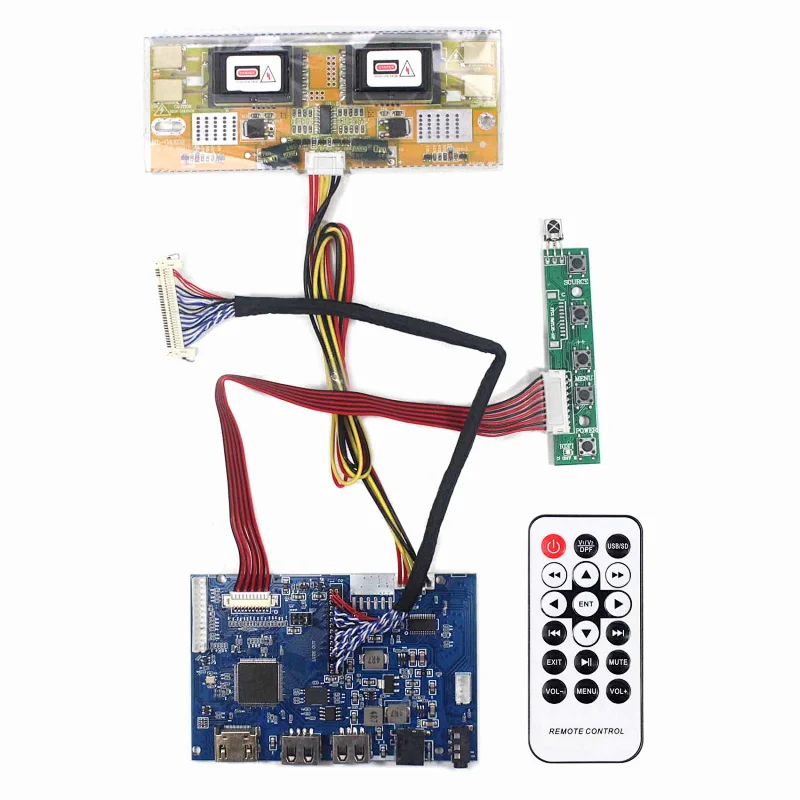

Packing list:
1× HDMI Audio LCD Controller Board VS-TY2660H-V818
1× 4CCFL Inverter Board
1× 30Pin Signal Cable
