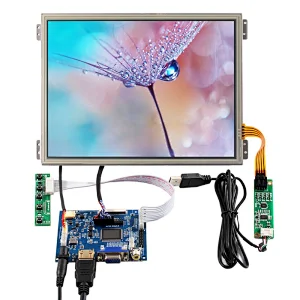

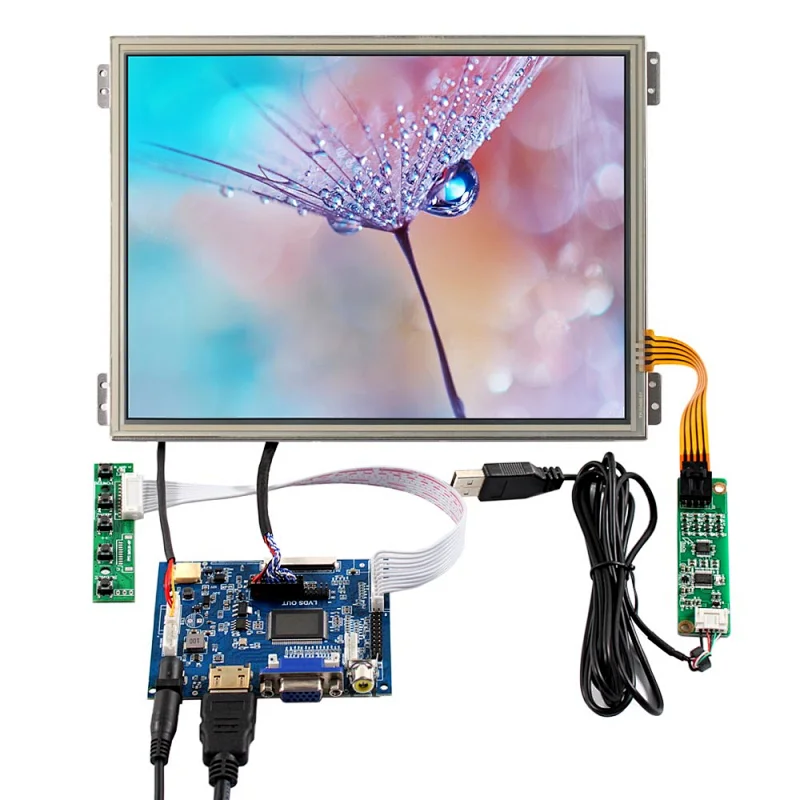

HD-MI VGA AV LCD Board 10.4" 1024X768 IPS LCD With Resistive Touch Panel Screen

Model NO.
K002909-VS-TY2662-V1+VS104T-004A+VS104TP-A1
Quantity:

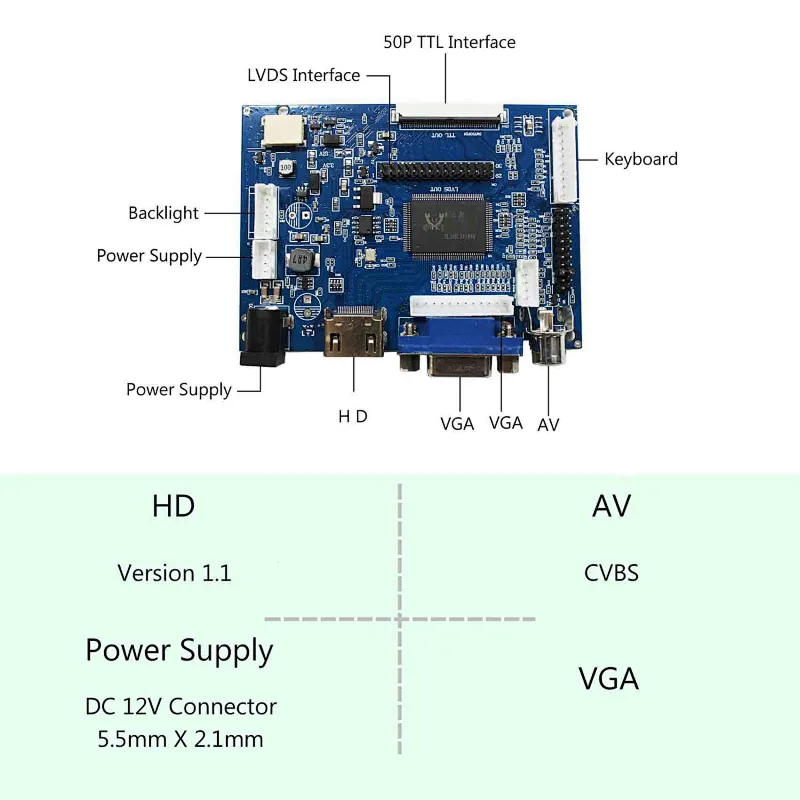

LCD Controller Board:
HD-MI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

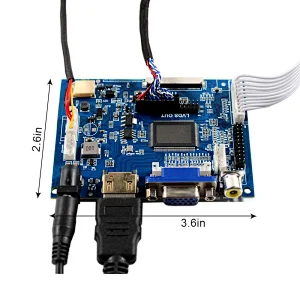

Board Size:91mm x 66mm x 12mm
10.4"VS104T-004A 1024X768 LCD Screen:
Replacement screen for G104XVN01.0 G104X1
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 1024×768
Outline Size 227.00×175.80×7 (H×V×D)
Display Area 210.43 × 157.824 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

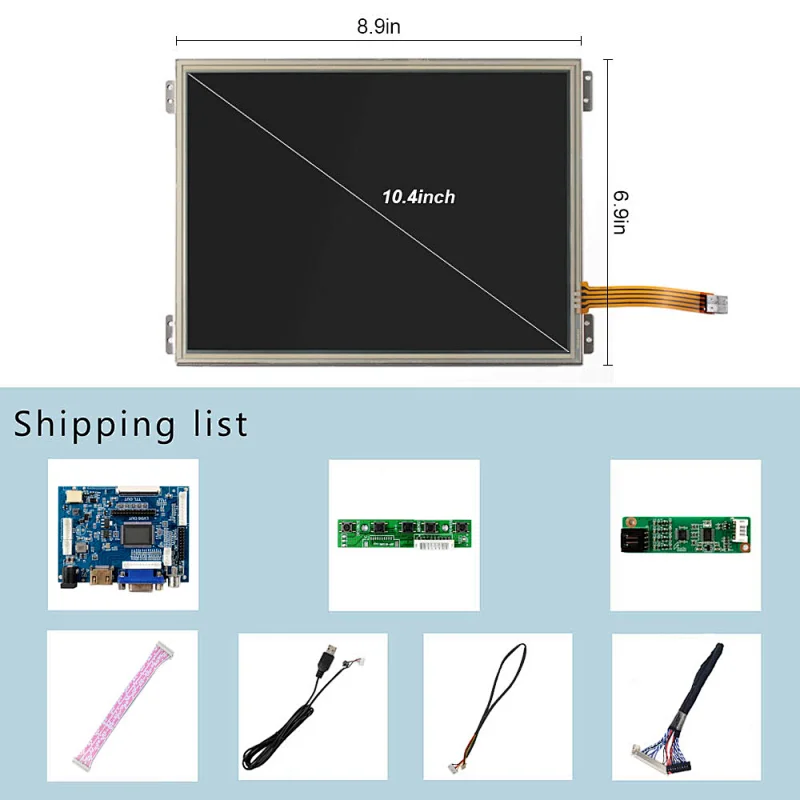

Packing list :
 HD-MIVGA+2AV LCD Controller Board VS-TY2662-V1
10.4inch VS104T-004 1024X768 LCD With Resistive Touch VS104TP-A1
1× USB Controller Board
1× Converter Board
1× Signal Cable
1× Keyboard With Cable
