HDMI Audio driver board work for 13.3" LQ133M1LW02-1000 1920X1080 LCD Screen

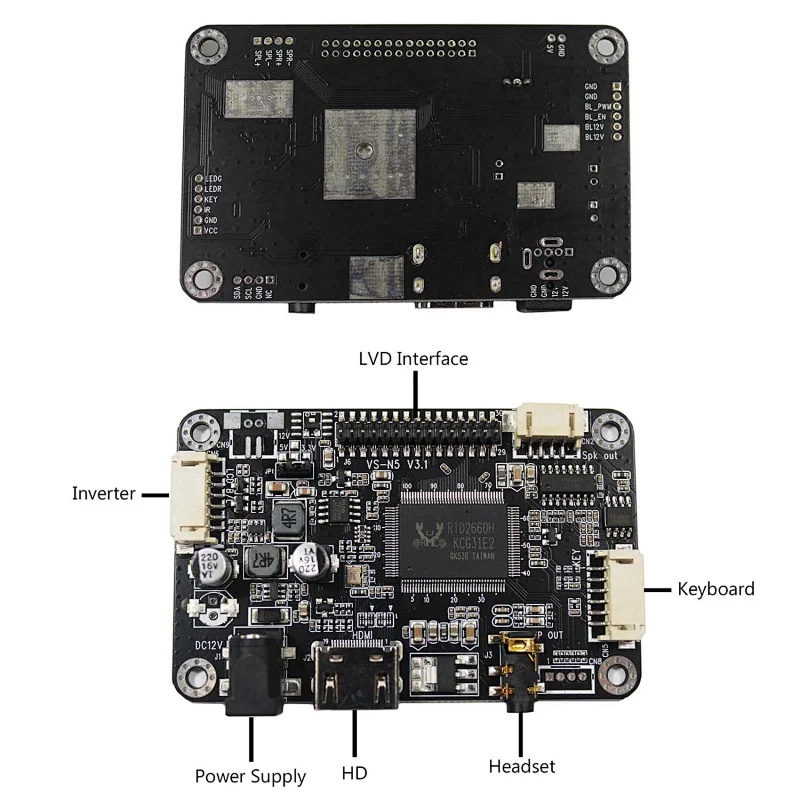

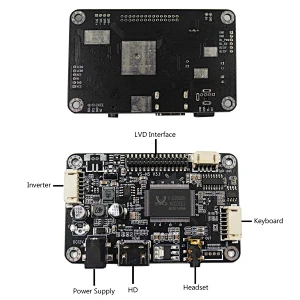

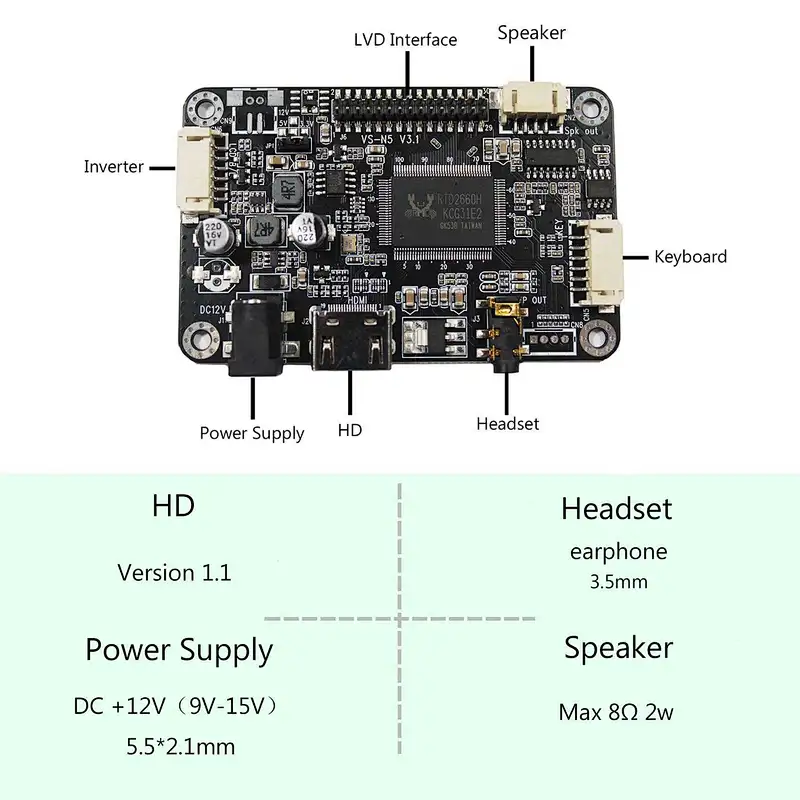

 LCD Controller Board:

HD-MI LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD-MI

Audio Input: HD-MI

Audio Output: Speaker earphone

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 85mm x 54mm x 14mm

13.3"LQ133M1LW02-1000 1920X1080 LCD Screen:

Display Mode  TN, Normally White, Transmissive

Resolution 1920RGB)×1080

Outline Size 310.6(H)×182.2(V)×13.1(D) mm

Display Area 293.76(H)×165.24(V) mm

Brightness 1000 cd/m²(Typ.)

Contrast Ratio 900:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10)

Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector

Backlight  WLED

Input Voltage  5.0V (Typ.)

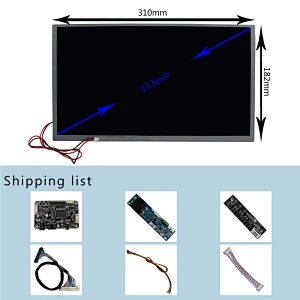

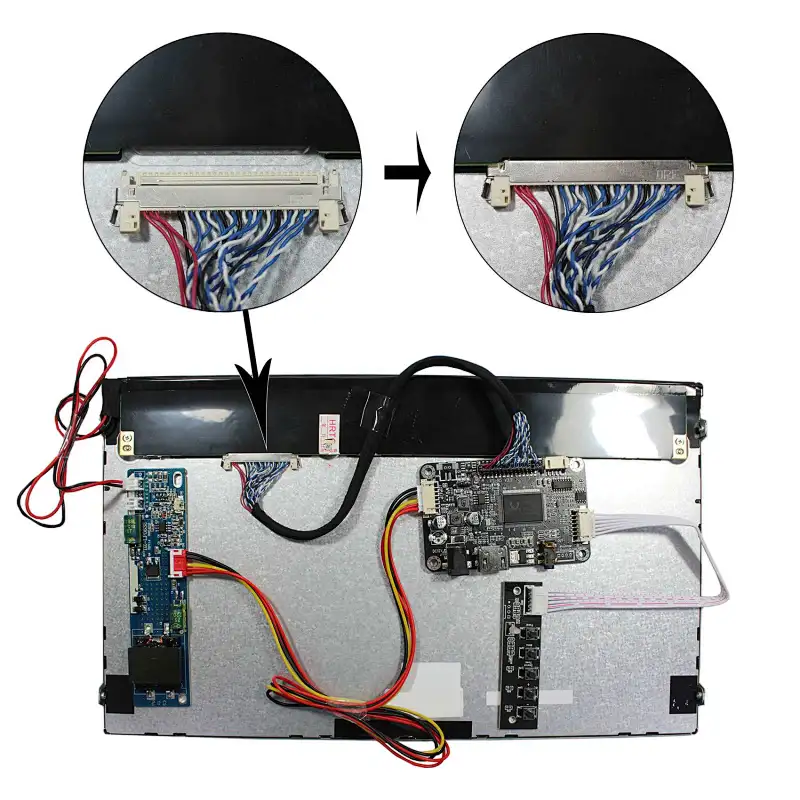

Packing list:

1× HD-MI Audio LCD Controller Board

1× 13.3" LQ133M1LW02-1000 1920X1080 LCD Scree

1× Converter Board

1× LVDS Cable

1× Keyboard With Cable
