Model NO.
K003103 ME.RT2525.EB818+EV101WXM-N80 1280X800 nits 1000
Delivery
EXW or FOB
Minimum order quantity
1 piece
Supply Ability
1000 piece / Day
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

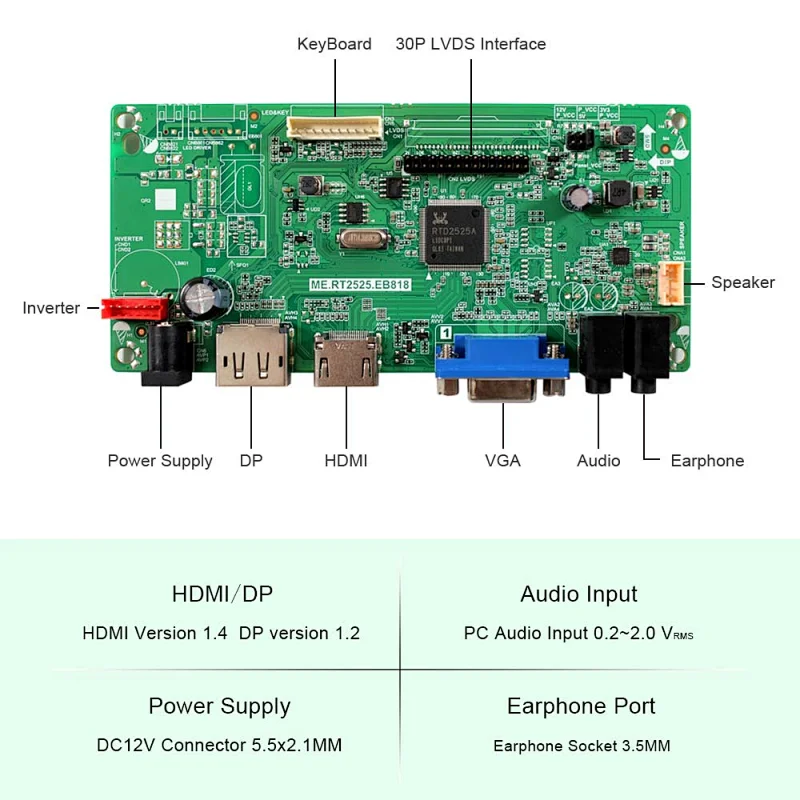

 LCD Controller Board:

HDMI DP VGA LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI DP VGA

Audio Input: HDMI

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 139mm x 64mm x 17mm

10.1"EV101WXM-1000 1280X800 LCD Screen::

Display Mode TN, Normally White, Transmissive

Resolution 1280(RGB)×800

Outline Size 233.2 × 152.9×10.4 (H×V×D)

Active Area 216.96× 135.6(H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 900:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel LVDS (1 ch, 8-bit) , 20 pins

Backlight WLED

Input Voltage 3.3V (Typ.)

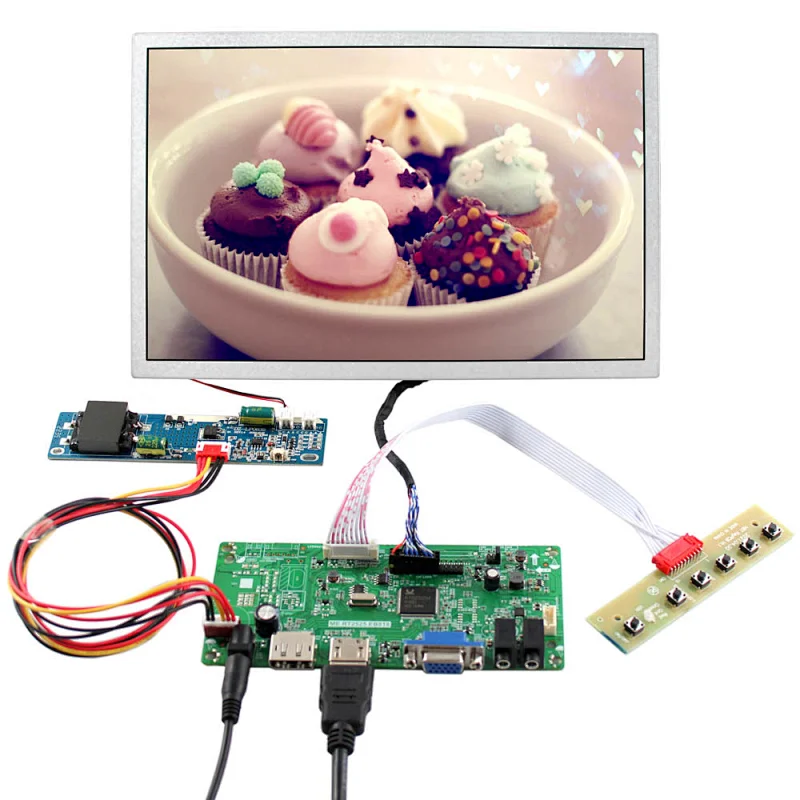

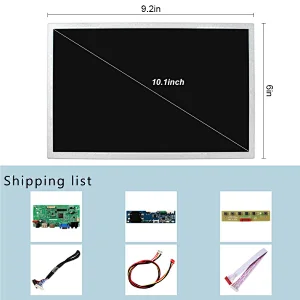

Packing list:

1× HD-MI DP VGA LCD Controller Board RT2525

1x 10.1inch 1280x800 1000dc LCD Screen

1× Inverter Board

1× Keyboard With Cable
