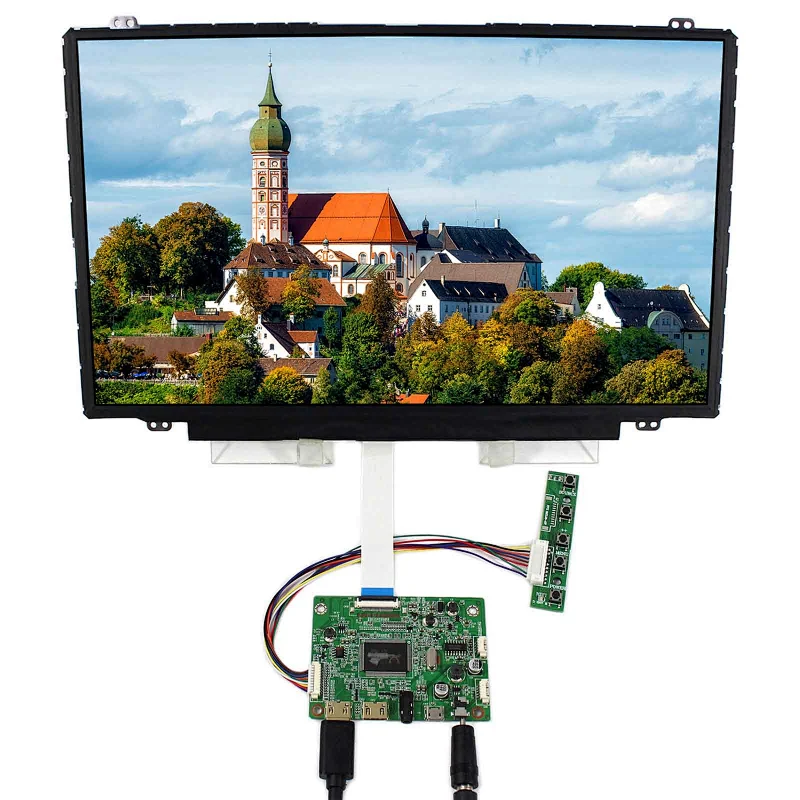

HDMI Mini LCD Controller Board with 14inch NV140FHM-N44 1920x1080 IPS 30Pin LCD Screen
HDMI Mini LCD Controller Board with 14inch NV140FHM-N44 1920x1080 IPS 30Pin LCD Screen
HDMI Mini LCD Controller Board with 14inch NV140FHM-N44 1920x1080 IPS 30Pin LCD Screen
HDMI Mini LCD Controller Board with 14inch NV140FHM-N44 1920x1080 IPS 30Pin LCD Screen
HDMI Mini LCD Controller Board with 14inch NV140FHM-N44 1920x1080 IPS 30Pin LCD Screen
HDMI Mini LCD Controller Board with 14inch NV140FHM-N44 1920x1080 IPS 30Pin LCD Screen
HDMI Mini LCD Controller Board with 14inch NV140FHM-N44 1920x1080 IPS 30Pin LCD Screen
HDMI Mini LCD Controller Board with 14inch NV140FHM-N44 1920x1080 IPS 30Pin LCD Screen
HDMI Mini LCD Controller Board with 14inch NV140FHM-N44 1920x1080 IPS 30Pin LCD Screen
HDMI Mini LCD Controller Board with 14inch NV140FHM-N44 1920x1080 IPS 30Pin LCD Screen
HDMI Mini LCD Controller Board with 14inch NV140FHM-N44 1920x1080 IPS 30Pin LCD Screen

HDMI Mini LCD Controller Board with 14inch NV140FHM-N44 1920x1080 IPS 30Pin LCD Screen

Model NO.
K001634-VS-RTD2556HM-V1+NV140FHM-N44
Quantity:

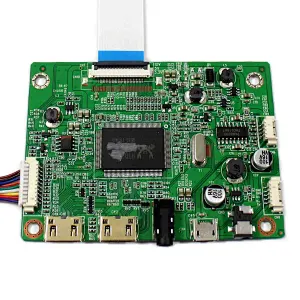

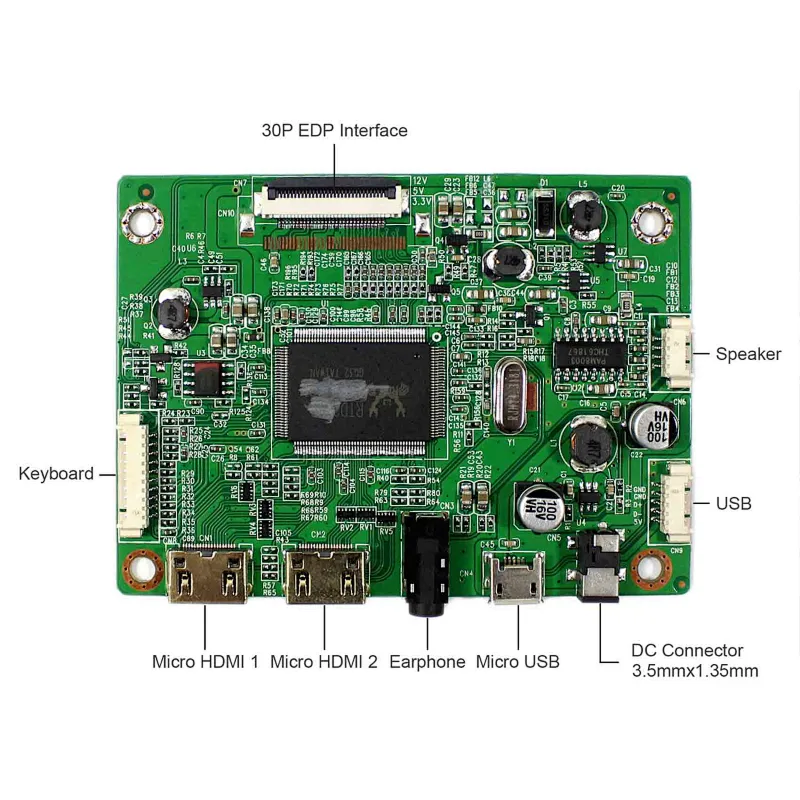

LCD Controller Board:
HDMI Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: 2HDMI Mini
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size:82mm x 60mm x 5mm
14"LCD Screen NV140FHM-N44:

Display Mode N, ADS, Normally Black, Transmissive

Resolution 1920RGB)×1080
Outline Size 320.4 × 205.1 × 3 (H×V×D)
Display Area 309.31 × 173.99 (H×V)
Brightness 300 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

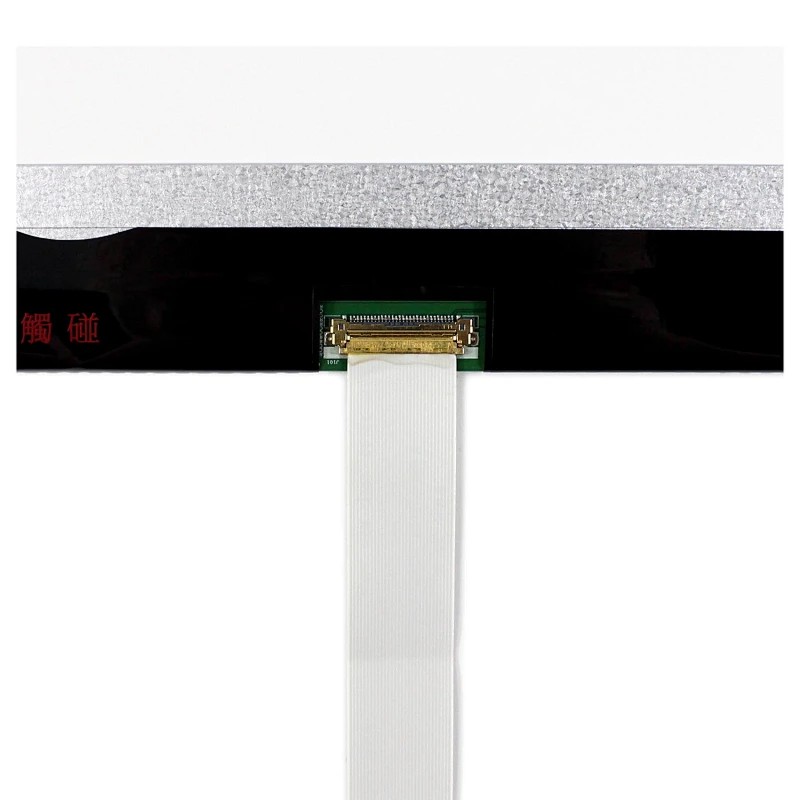

Signal Interface eDP (2 Lanes) , Connector , 30 pins

Backlight WLED
Input Voltage  3.3V (Typ.)

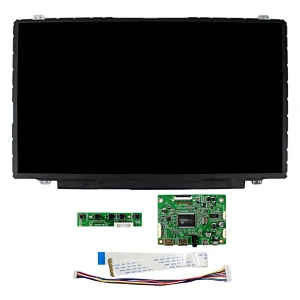

Packing list :

1× 2 HDMI Mini LCD Controller VS-RTD2556HM-V1

1×14inch NV140FHM-N44 1920X1080 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
