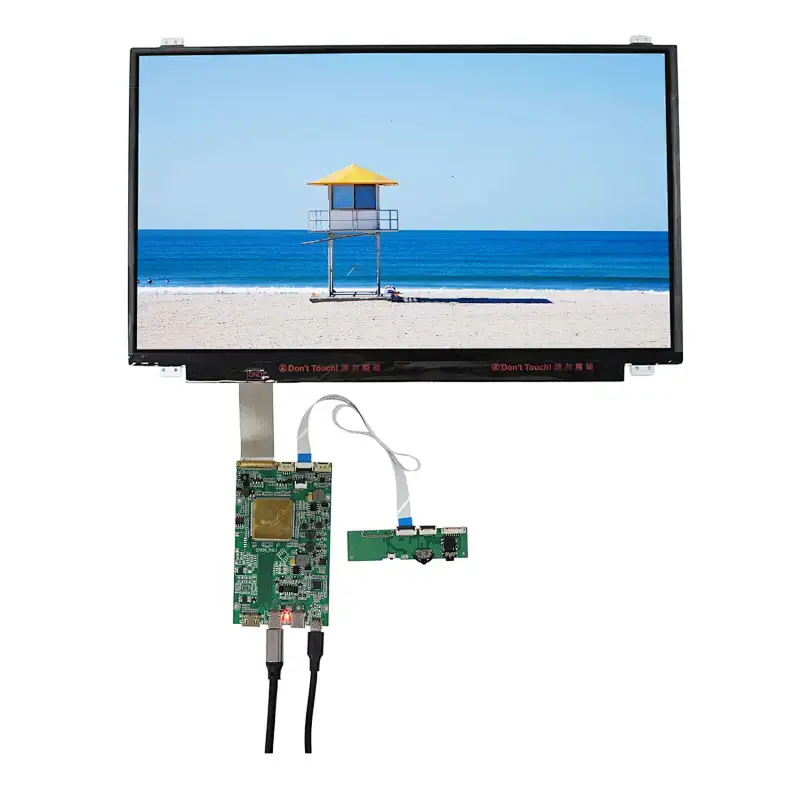

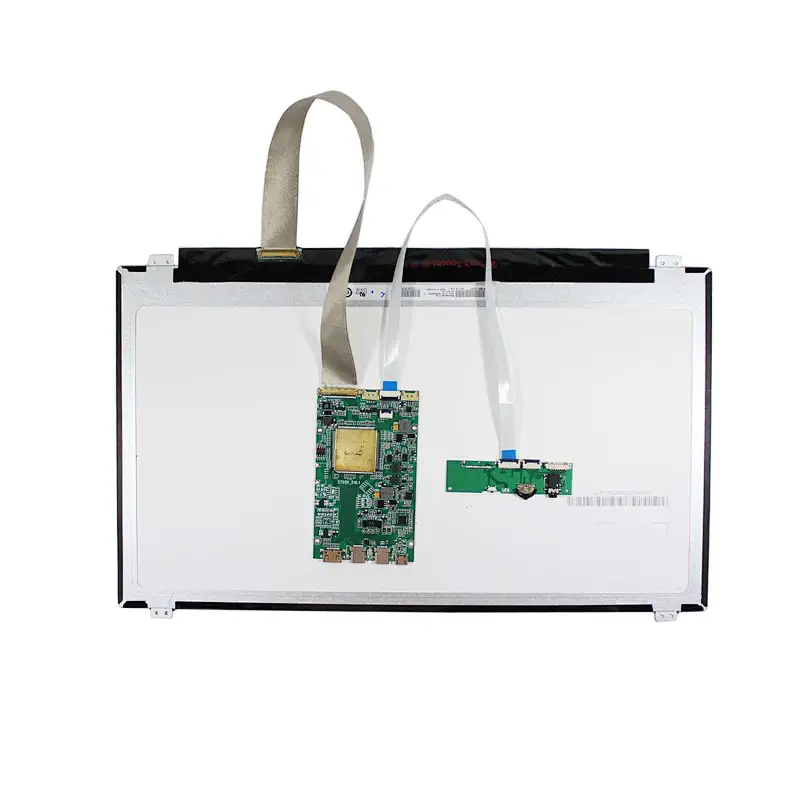

HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen
HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen

HDMI Type C LCD Controller Board with 15.6inch 4K B156ZAN02.3 3840X2160 IPS LCD Screen

Model NO.
K002525-VS-RT2795T4K-V5 Type-C+NV156QUM-N44
Quantity:

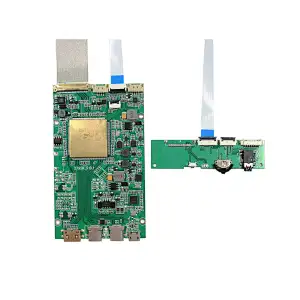

LCD Controller Board:
Type C HDMI Board For 4 Lane eDP Support Max 4096x2160 60Hz LCD Screen
Input Power Adapter: PD 5V dc Type C 18W
Come In Standby Model When Not Input Signal
Standby Model <1.2W
HDR: Support

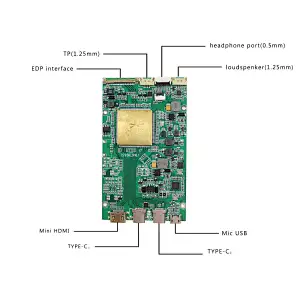

Video Input
HDMI (HDMI 2.0 max 3840x2160 60Hz Support HDCP2.2)

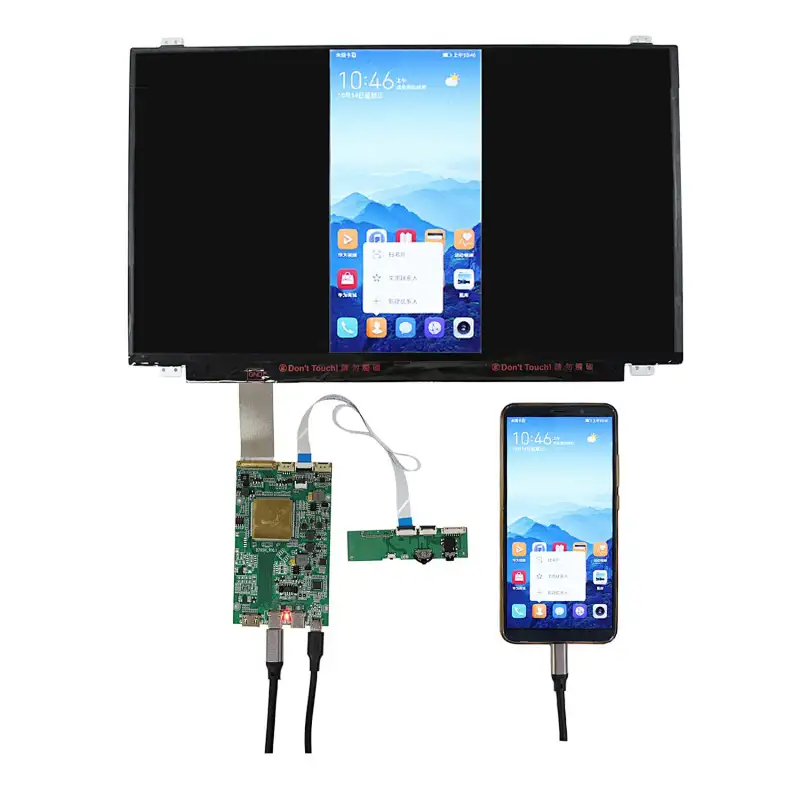

Type-C (Data Transmission Image Display 5V Max 3A output)
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size: 104.0mm x 60.2mm x 5mm
15.6"LCD Screen:
Display Mode  AAS, Normally Black, Transmissive
Resolution  3840 (RGB)×2160 (UHD)
Outline Size 351.9(W)×224.42 (H) ×3.2(D) mm
Display Area 345.6(W)×194.4(H) mm
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (4 Lanes) , Connector ,40 pins
Backlight WLED
Input Voltage  3.3V (Typ.)

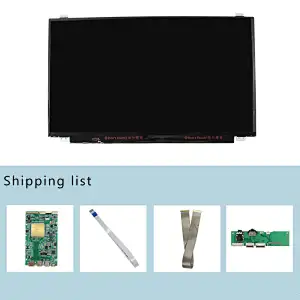

Packing list:
1× Mini HDMI Type C LCD Controller VS-RT2795T4K-V2
1× 15.6inch NV156QUM-N44 3840X2160 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
