Model NO.
K002777-VS-TY2660HU-823+for 15.4inch 17inch 1440x900
Quantity:
LCD Controller Board:
HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HD-MI: Support HD-MI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 51mm x 14mm
Compatible Work With:
15.4inch 1440x900:
CLAA154WP05 B154PW01V.1 N154C3 N154C1-L01
N154C1-L02 LP154WP1 LTN154BT05
17inch 1440x900
B170PW02 V0  B170PW04 V0  B170PW07 V0  B170PW07 V1
LP171WP3 LP171WP3-A4 LP171WP3-A4K1 LP171WP5
LP171WP5-TL01 LP171WP5-TL02 LP171WP5-TL03 LP171WP5-TL04
LP171WP5 -TL05 LP171WP7-TLA1 LP171WP7-TLA3 LP171WP7-TLA4
LP171WP7-TLB1 LM171W02-TLB2 N170C3-L01 N170C4-L01 N170C4-L02
LTN170X3-L01 LTN170X3-L02 LTN170X3-L03 LTN170X3-L06

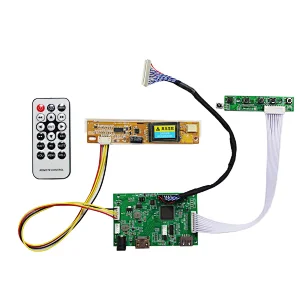

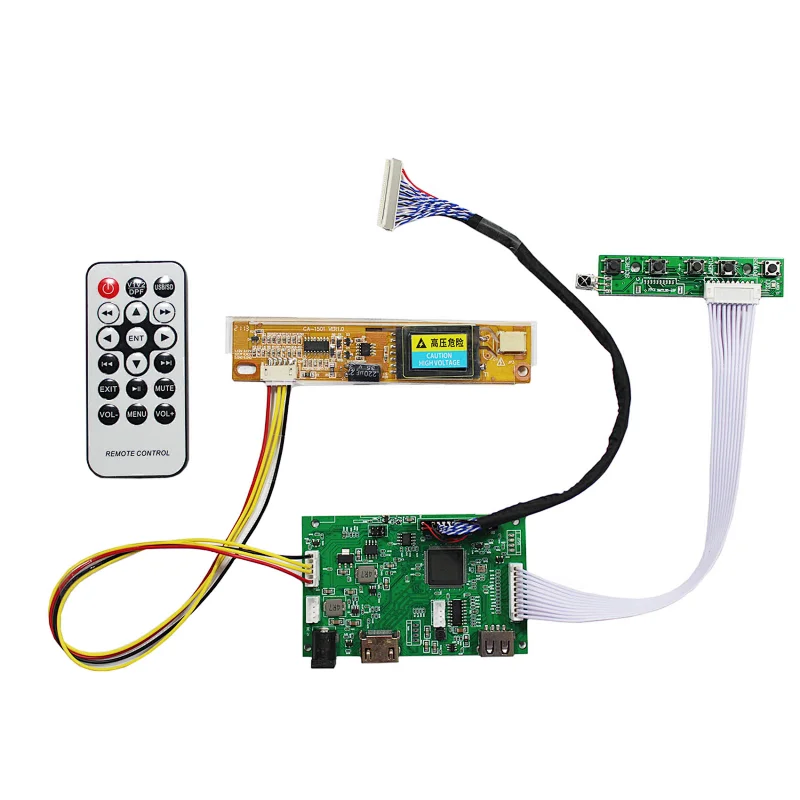

Packing list :
1× HD-MI LCD Board for 30Pin VS-TY2660HU-823
1× LVDS Cable
1× 2 CCFL Inverter Board
1× Keyboard With Cable
1× Remote Control
