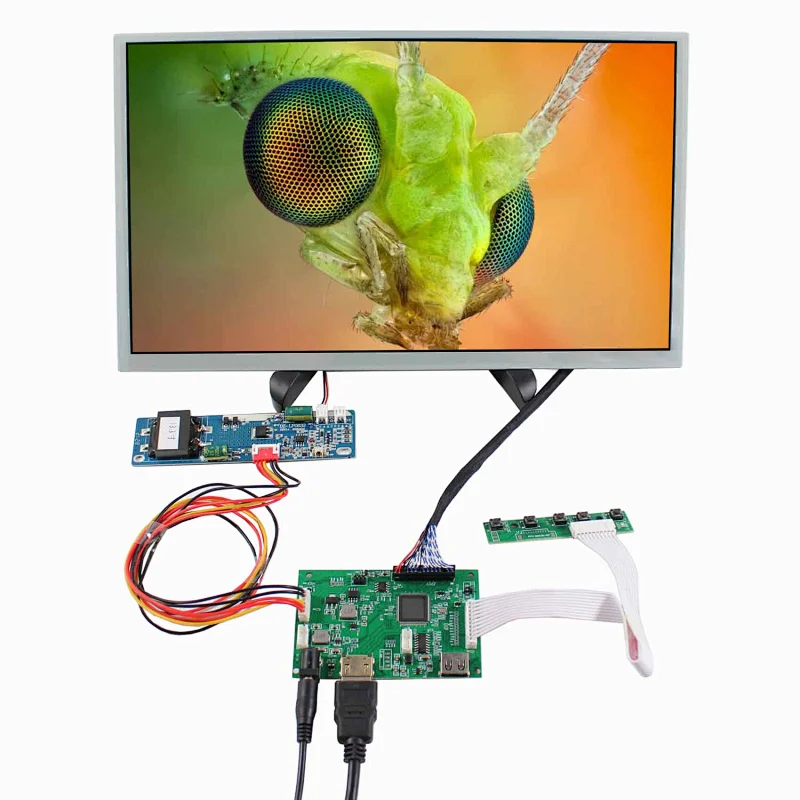

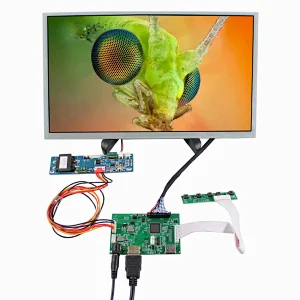

HDMI USB LCD Controller Board for 30Pin LVDS TFT LCD 13.3inch 1920x1080

 LCD Controller Board:

HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS

Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)

Photoresistors Input Support Automatic brightness adjustment

External human body induction signal template, automatic startup and shutdown of human body induction

Video Input: HD-MI USB

HD-MI: Support HD-MI 1.4

USB: Support Video Playback, Picture Playback, Text Playback

Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and

plugged into the USB of the driver board, the power can be upgraded, and it will automatically

restart after completed)

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

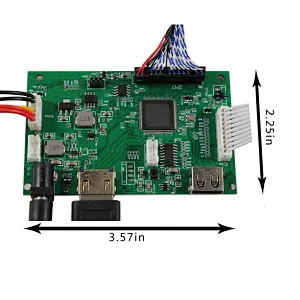

Board Size: 90mm x 51mm x 14mm

13.3"LQ133M1LW02-1000 1920X1080 LCD Screen:

Display Mode  TN, Normally White, Transmissive

Resolution 1920RGB)×1080

Outline Size 310.6(H)×182.2(V)×13.1(D) mm

Display Area 293.76(H)×165.24(V) mm

Brightness 1000 cd/m²(Typ.)

Contrast Ratio 900:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10)

Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector

Backlight  WLED

Input Voltage  5.0V (Typ.)

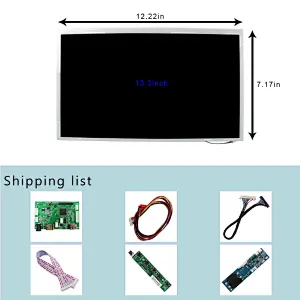

Packing list:

1× HD-MI LCD Board for 30Pin VS-TY2660HU-823

1× 13.3" LQ133M1LW02-1000 1920X1080 LCD Scree

1× LVDS Cable

1× Backlight Cable

1× Keyboard With Cable
