HDMI USB LCD Controller Board With 12.1 inch AA121TD02 1280X800 LCD Screen
HDMI USB LCD Controller Board With 12.1 inch AA121TD02 1280X800 LCD Screen
HDMI USB LCD Controller Board With 12.1 inch AA121TD02 1280X800 LCD Screen
HDMI USB LCD Controller Board With 12.1 inch AA121TD02 1280X800 LCD Screen
HDMI USB LCD Controller Board With 12.1 inch AA121TD02 1280X800 LCD Screen
HDMI USB LCD Controller Board With 12.1 inch AA121TD02 1280X800 LCD Screen
HDMI USB LCD Controller Board With 12.1 inch AA121TD02 1280X800 LCD Screen
HDMI USB LCD Controller Board With 12.1 inch AA121TD02 1280X800 LCD Screen
HDMI USB LCD Controller Board With 12.1 inch AA121TD02 1280X800 LCD Screen
HDMI USB LCD Controller Board With 12.1 inch AA121TD02 1280X800 LCD Screen
HDMI USB LCD Controller Board With 12.1 inch AA121TD02 1280X800 LCD Screen

HDMI USB LCD Controller Board With 12.1 inch AA121TD02 1280X800 LCD Screen

Model NO.
K002895 VS-M5V4.1+12.1inch AA121TD02 1280x800
Quantity:
LCD Controller Board:
3X HD-MI VGA USB Audio LCD Controller Board for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W

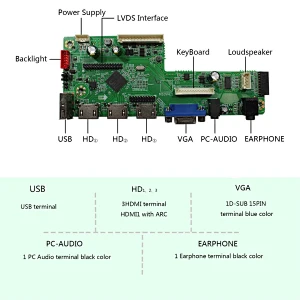

Video Input: HD-MI USB VGA
Audio Input: HD-MI
Audio Output: Speaker Earphone
OSD: Brightness Contrast Auto Language And So On
Language: English Chinese French German Spanish Italian Russian Portuguese

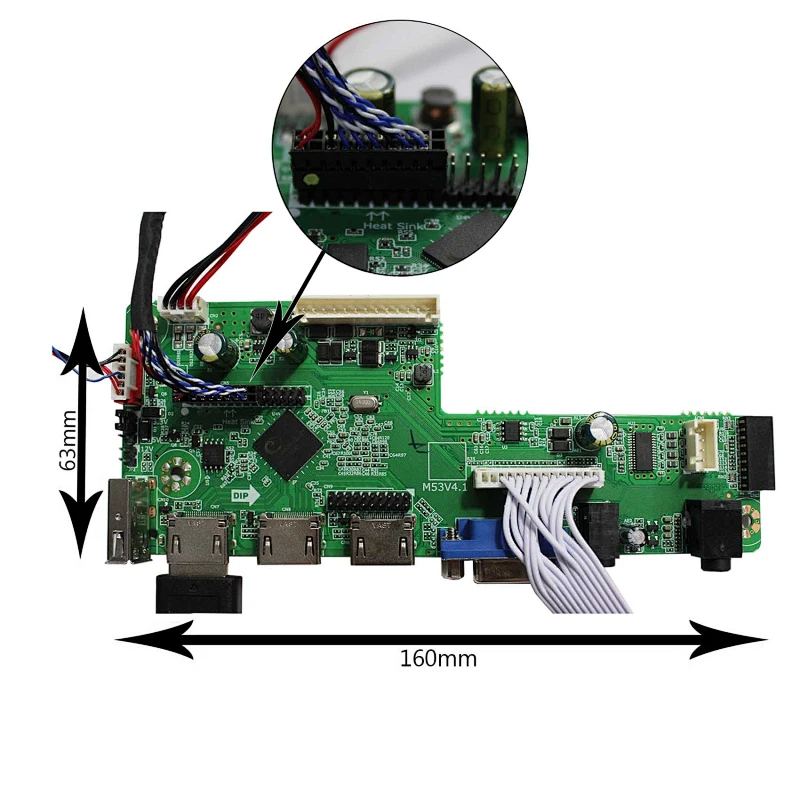

Board Size: 160mm x 63mm x 17mm
12.1" AA121TD02 1280X800 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution1280RGB)×800
Outline Size 283×185.1×10(H×V×D)
Display Area 216.12×163.2 (H×V)
Brightness450 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 80/80/80/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

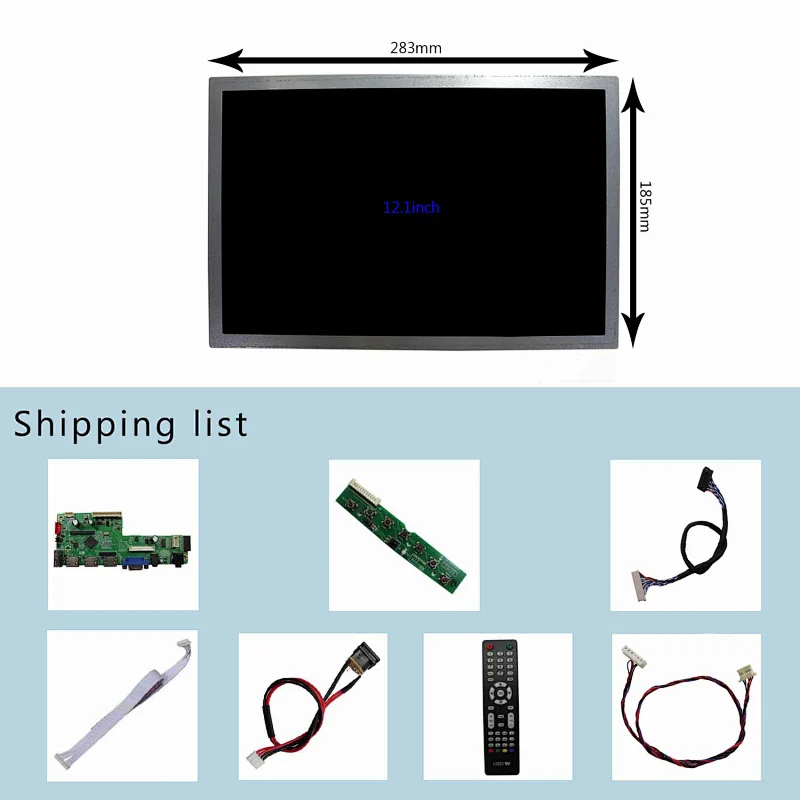

Packing list :
1× HD-MI USB VAG AUDIO LCD Board VS-M53V4.1
12.1inch AA121TD02 1280x800 LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
