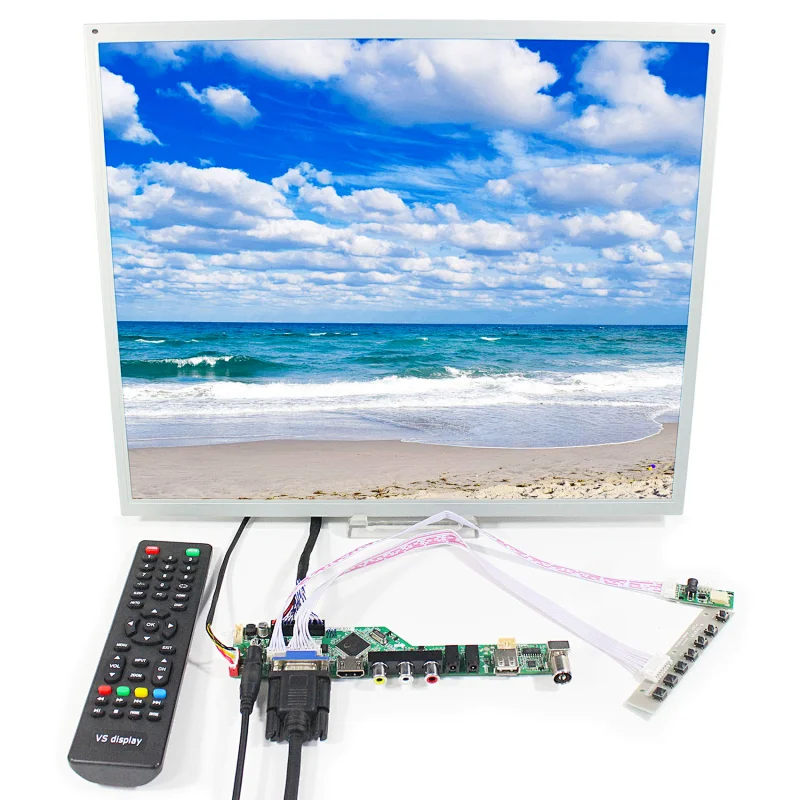

HDMI VGA AV USB LCD Controller Board with 17 inch G170EG01 V1 1280X1024 LCD Screen
HDMI VGA AV USB LCD Controller Board with 17 inch G170EG01 V1 1280X1024 LCD Screen
HDMI VGA AV USB LCD Controller Board with 17 inch G170EG01 V1 1280X1024 LCD Screen
HDMI VGA AV USB LCD Controller Board with 17 inch G170EG01 V1 1280X1024 LCD Screen
HDMI VGA AV USB LCD Controller Board with 17 inch G170EG01 V1 1280X1024 LCD Screen
HDMI VGA AV USB LCD Controller Board with 17 inch G170EG01 V1 1280X1024 LCD Screen
HDMI VGA AV USB LCD Controller Board with 17 inch G170EG01 V1 1280X1024 LCD Screen
HDMI VGA AV USB LCD Controller Board with 17 inch G170EG01 V1 1280X1024 LCD Screen
HDMI VGA AV USB LCD Controller Board with 17 inch G170EG01 V1 1280X1024 LCD Screen
HDMI VGA AV USB LCD Controller Board with 17 inch G170EG01 V1 1280X1024 LCD Screen
HDMI VGA AV USB LCD Controller Board with 17 inch G170EG01 V1 1280X1024 LCD Screen

HDMI VGA AV USB LCD Controller Board with 17 inch G170EG01 V1 1280X1024 LCD Screen

Model NO.
K002298-T.VST56.031 +G170EG01 1280X1024
Quantity:

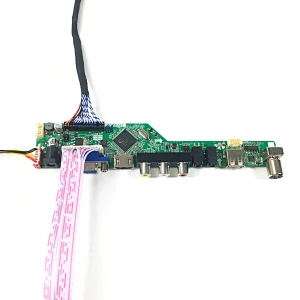

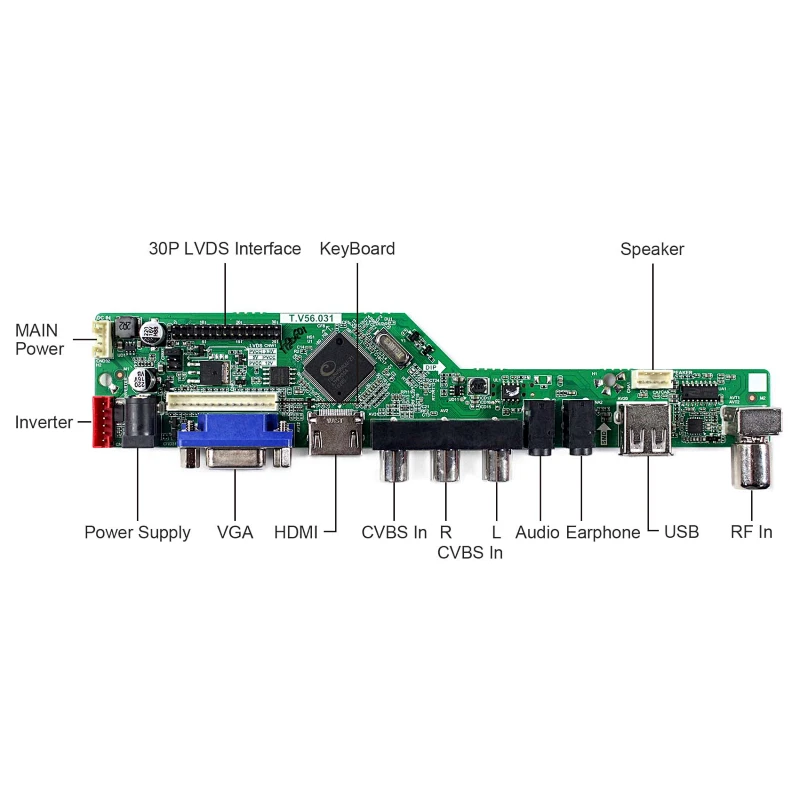

LCD Controller Board:
HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC
Video Input: HDMI VGA AV USB RF
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 188mm x 43mm x 17mm
17"G170EG01 V1 1280X1024 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1280RGB)×1024
Outline Size 358.5 ×296.5×18(H×V×D)
Display Area 337.92×270.336 (H×V)
Brightness350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  LVDS (2 ch, 8-bit) , Connector , 30 pins
Backlight  WLED
Input Voltage  5.0V (Typ.)

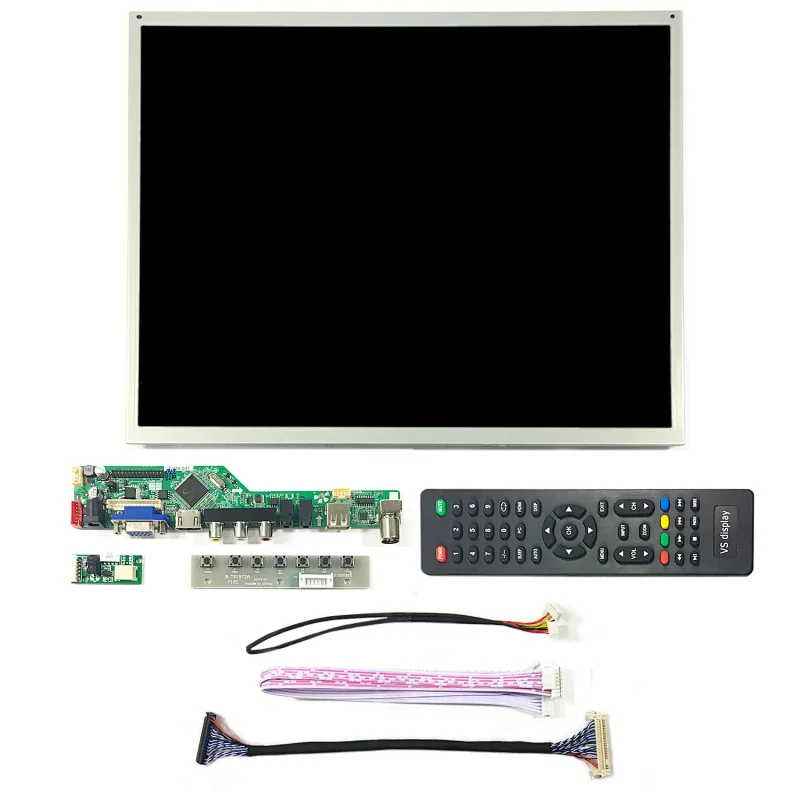

Packing list :
1× HDMI VGA AV USB RF LCD Controller Board T.V56.03
 17inchG170EG01 V1 1280X1024 LCD Screen
 Backlight Cable
 LVDS Cable
 Keyboard With Cable
