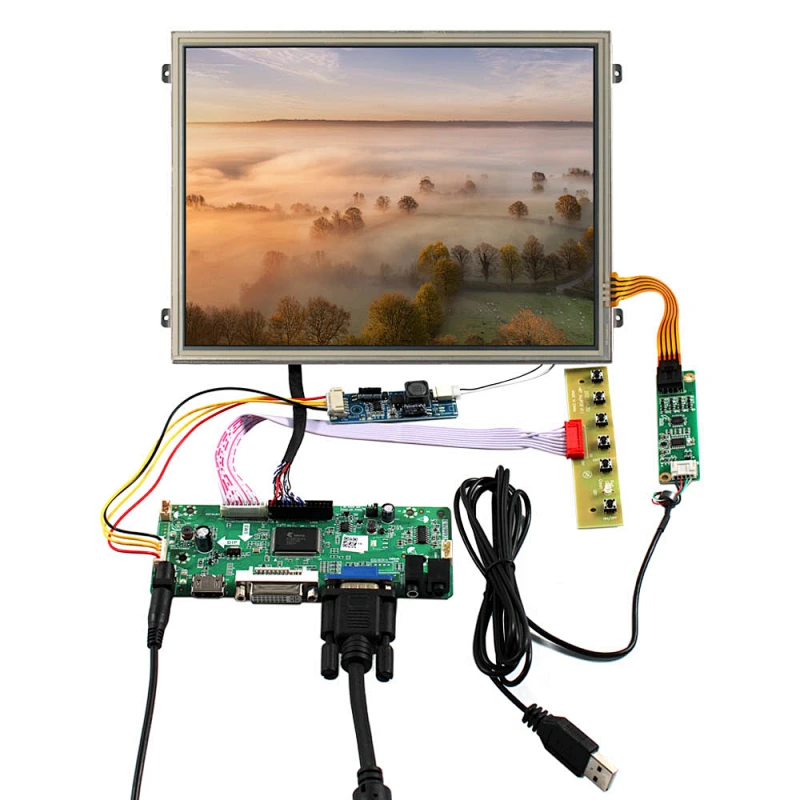

HDMI VGA DVI LCD Controller Board With 10.4" VS104T 1024X768 Resistive Touch LCD

Model NO.
K002905-M.NT68676.3+VS104T-003A +VS104TP-A1
Quantity:

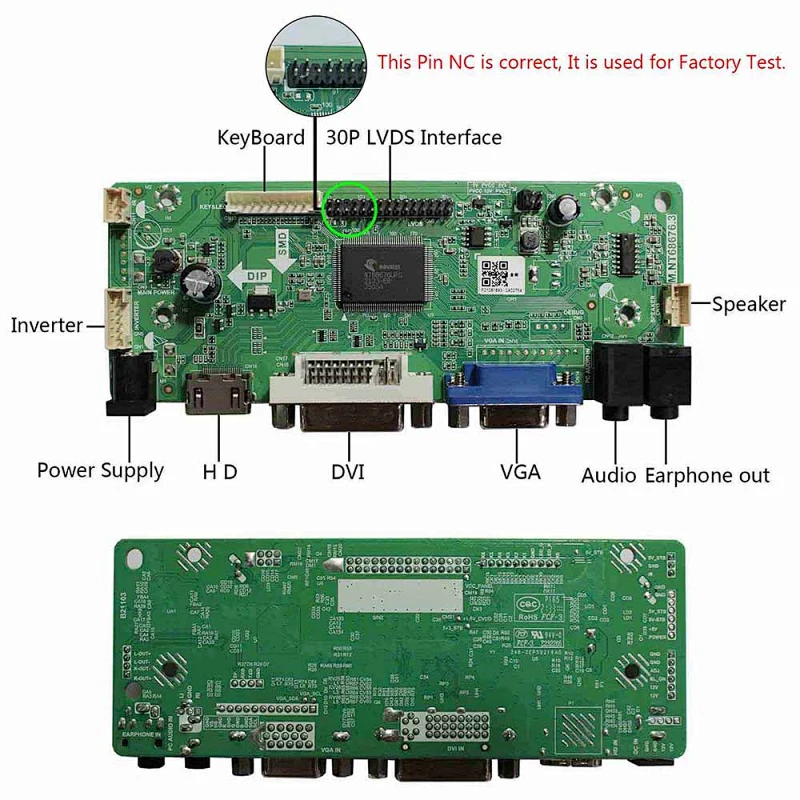

LCD Controller Board:
HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 3A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI DVI VGA
Audio Input: HD-MI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

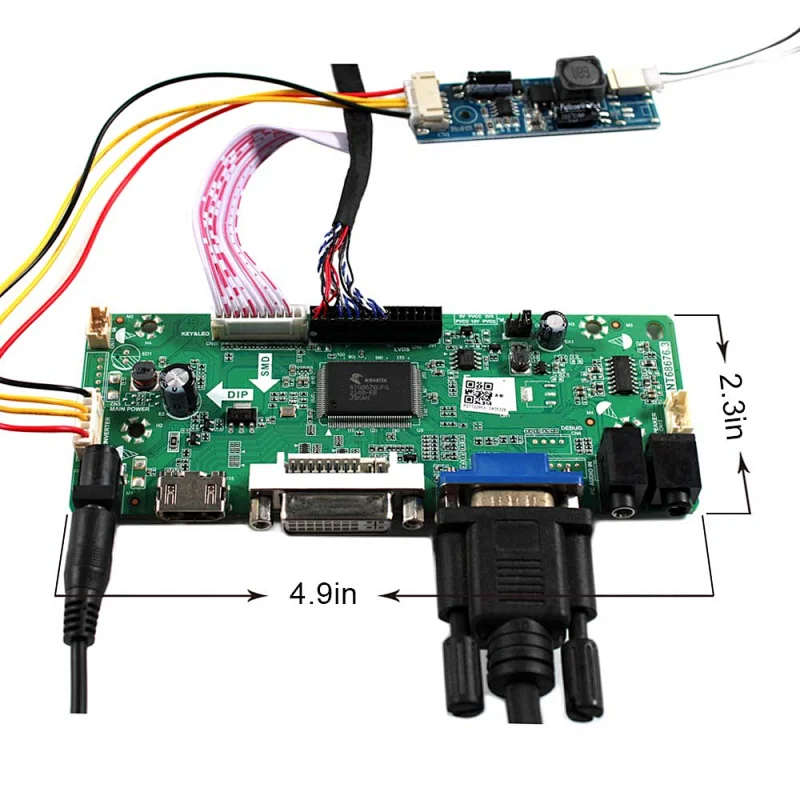

Board Size: 125mm x 58mm x 17mm
10.4"VS104T-003A 1024X768 LCD Screen:
Display Mode  IPS, Normally Black, Transmissive
Resolution 1024RGB)×768
Outline Size 225.8 × 174.3×5.6(H×V×D)
Display Area 211.2× 158.48 (H×V)
Brightness 500 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit) , Connector , 30 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

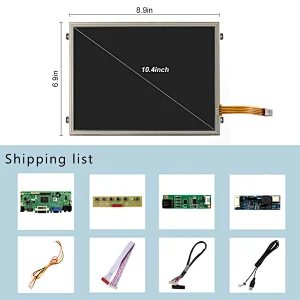

Packing list:
1× HD-MI VGA DVI LCD Controller Board M.NT68676
1× 10.4inch VS140T-003A 1024x768 IPS LCD Screen Touch VS104TP-A1
1× LVDS Cable
1× Inveter Board
1× Keyboard With Cable
