Model NO.
K002899-VS-M5V4.1三HDMI+15inch 1024*768
Quantity:

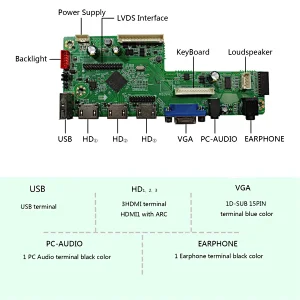

LCD Controller Board:
3X HD-MI VGA USB Audio LCD Controller Board for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI USB VGA
Audio Input: HD-MI
Audio Output: Speaker Earphone
OSD: Brightness Contrast Auto Language And So On
Language: English Chinese French German Spanish Italian Russian Portuguese

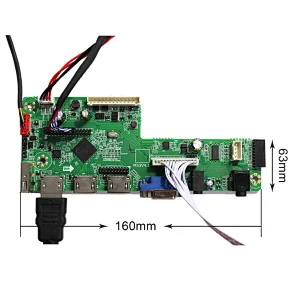

Board Size: 160mm x 63mm x 17mm
15"LQ150X1LG96 1024X768 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×768
Outline Size 326.5 × 253.5× 10.1(H×V×D)
Display Area 304.128× 228.096 (H×V)
Brightness 1050 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 20 pins
Backlight  WLED
Input Voltage 3.3V (Typ.)

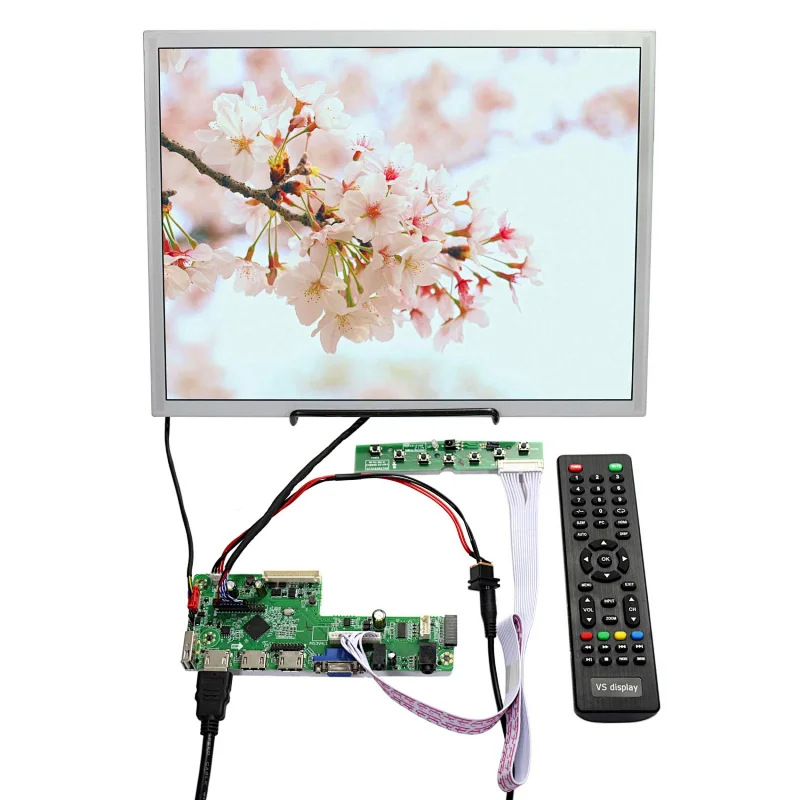

Packing list:
1× HD-MI USB VAG AUDIO LCD Board VS-M53V4.1
1× 15inchLQ150X1LG961024X768 LCD Screen
LVDS Cable
1× Power Cable
1× Backlight Cable
 Keyboard With Cable
1× Remote Control (Battery Not included)
