LVDS to TTL Tcon Board Work for AT050TN22 AT056TN52 Support with 640x480 800x480
LVDS to TTL Tcon Board Work for AT050TN22 AT056TN52 Support with 640x480 800x480
LVDS to TTL Tcon Board Work for AT050TN22 AT056TN52 Support with 640x480 800x480
LVDS to TTL Tcon Board Work for AT050TN22 AT056TN52 Support with 640x480 800x480
LVDS to TTL Tcon Board Work for AT050TN22 AT056TN52 Support with 640x480 800x480
LVDS to TTL Tcon Board Work for AT050TN22 AT056TN52 Support with 640x480 800x480
LVDS to TTL Tcon Board Work for AT050TN22 AT056TN52 Support with 640x480 800x480
LVDS to TTL Tcon Board Work for AT050TN22 AT056TN52 Support with 640x480 800x480
LVDS to TTL Tcon Board Work for AT050TN22 AT056TN52 Support with 640x480 800x480

LVDS to TTL Tcon Board Work for AT050TN22 AT056TN52 Support with 640x480 800x480

Model NO.
D000002-HCR-TCON-N1(50Pin) for AT050TN22 AT056TN52
Quantity:
LCD Controller Board:

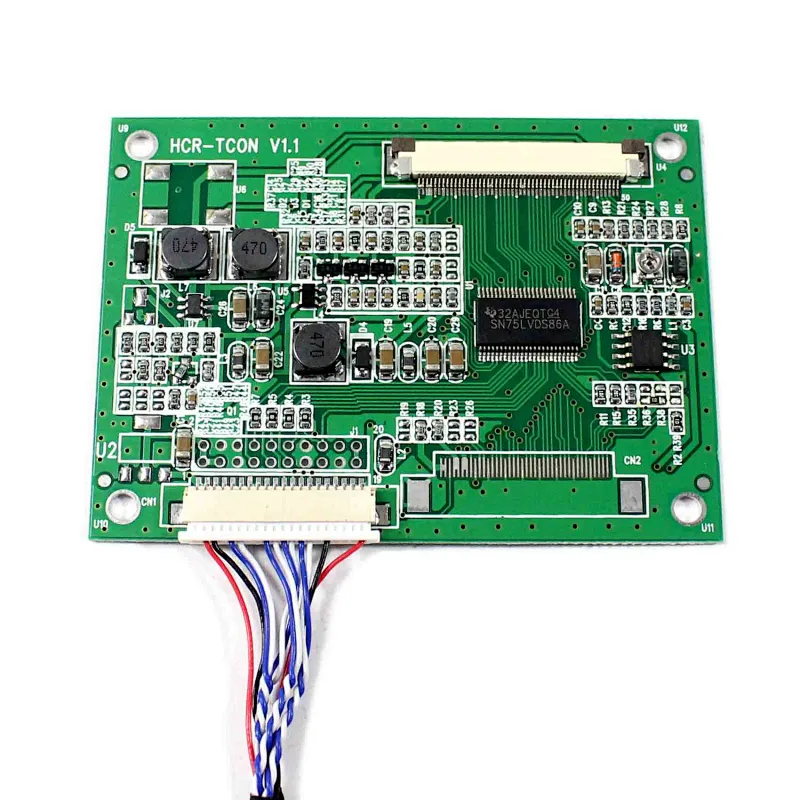

LVDS to TTL Tcon Board
Power supply: +3.3V and +5V

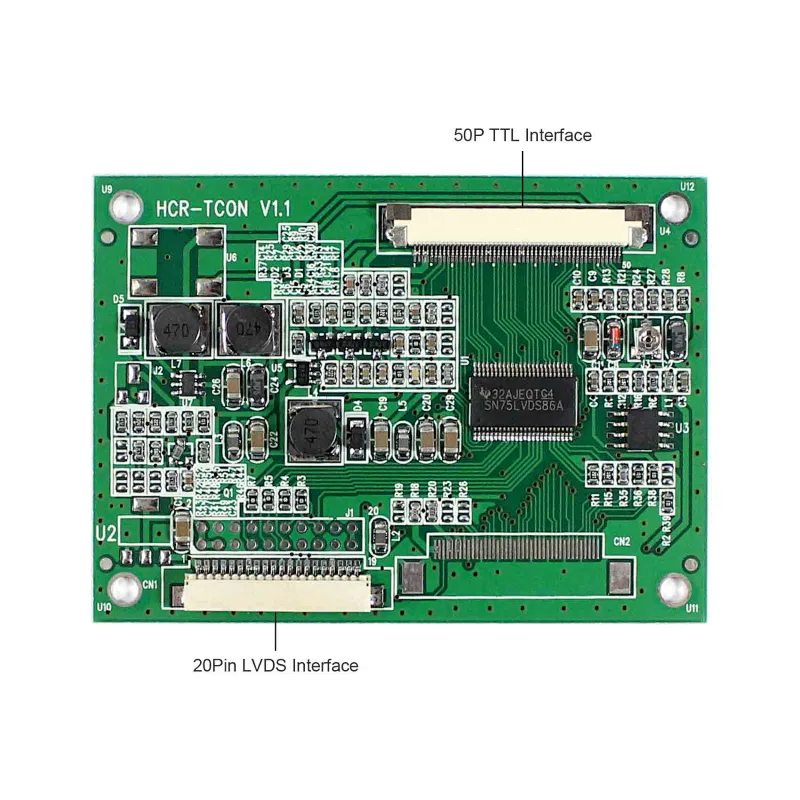

Input signal: 20Pin LVDS signal
Output signal: 50pin TTL signal
Work for AT050TN22, AT056TN52 etc
Support resolution with 640x 480, 800x480, 800x600 etc
Board Size: 70mm x 50m x 6mm
Packing list :

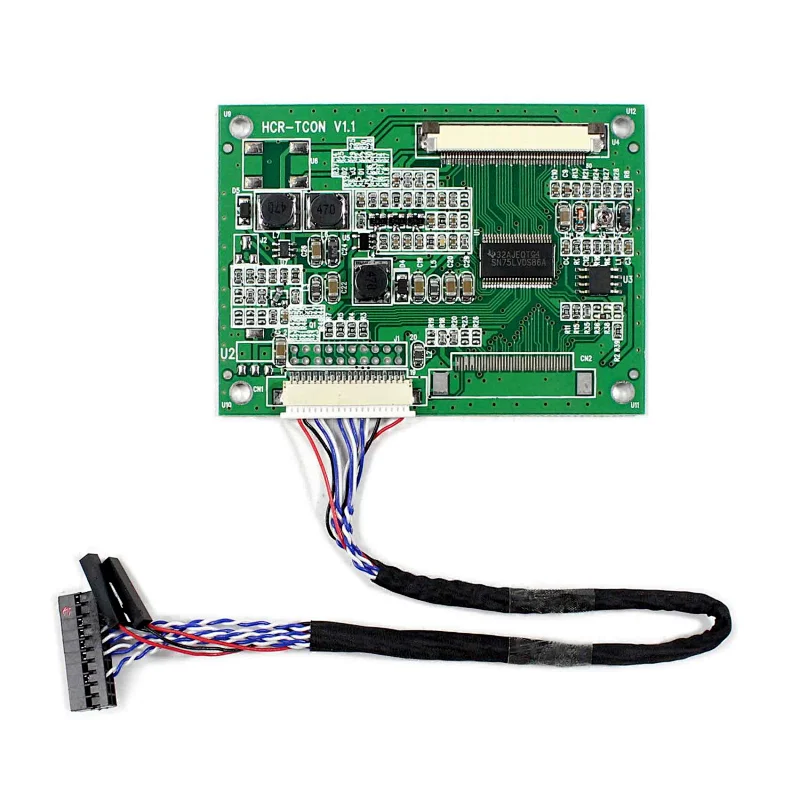

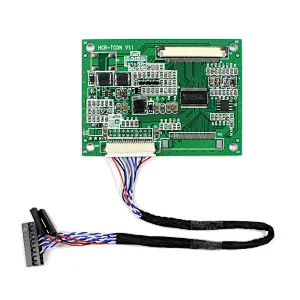

1× LVDS to TTL Converter board HCR-TCON N1
1× LVDS Cable
