AV LCD Controller Driver Board Work for LQ035NC111 320×240 54Pin TTL LCD Screen
AV LCD Controller Driver Board Work for LQ035NC111 320×240 54Pin TTL LCD Screen
AV LCD Controller Driver Board Work for LQ035NC111 320×240 54Pin TTL LCD Screen
AV LCD Controller Driver Board Work for LQ035NC111 320×240 54Pin TTL LCD Screen
AV LCD Controller Driver Board Work for LQ035NC111 320×240 54Pin TTL LCD Screen
AV LCD Controller Driver Board Work for LQ035NC111 320×240 54Pin TTL LCD Screen
AV LCD Controller Driver Board Work for LQ035NC111 320×240 54Pin TTL LCD Screen
AV LCD Controller Driver Board Work for LQ035NC111 320×240 54Pin TTL LCD Screen
AV LCD Controller Driver Board Work for LQ035NC111 320×240 54Pin TTL LCD Screen
AV LCD Controller Driver Board Work for LQ035NC111 320×240 54Pin TTL LCD Screen
AV LCD Controller Driver Board Work for LQ035NC111 320×240 54Pin TTL LCD Screen

AV LCD Controller Driver Board Work for LQ035NC111 320×240 54Pin TTL LCD Screen

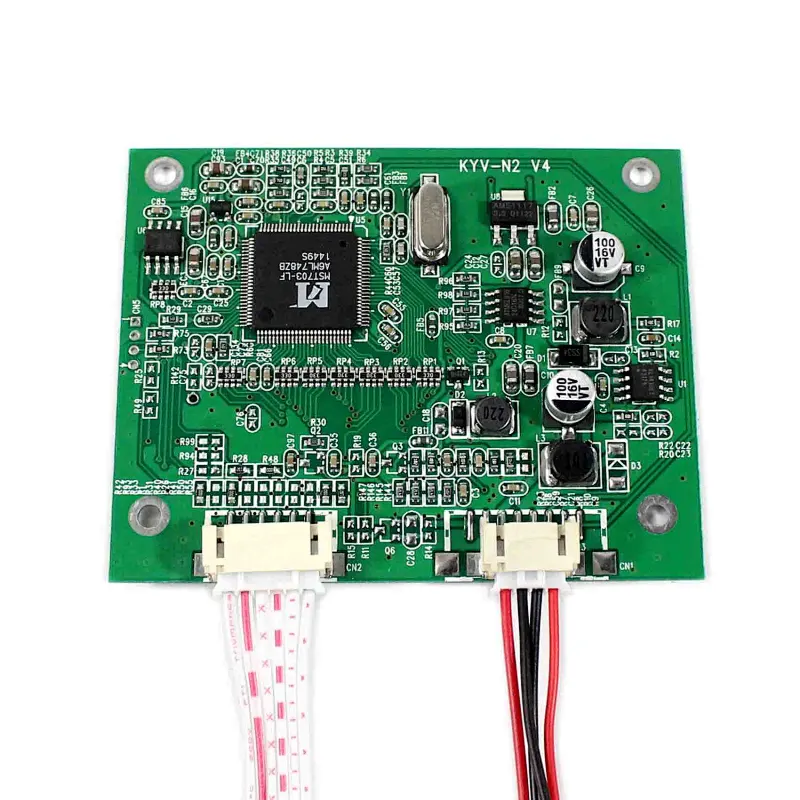

Model NO.
D000089 KYV-N2 V4 for LQ035NC111
Quantity:
LCD Controller Board:
AV LCD Board Work for 54Pin TTL LQ035NC111 LCD Screen
Input Power Adapter: 12Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Video Input: AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 77mm x 60mm x 8mm

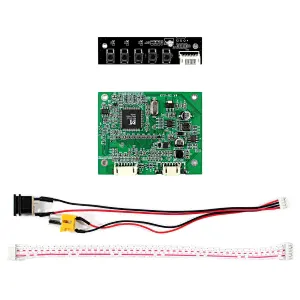

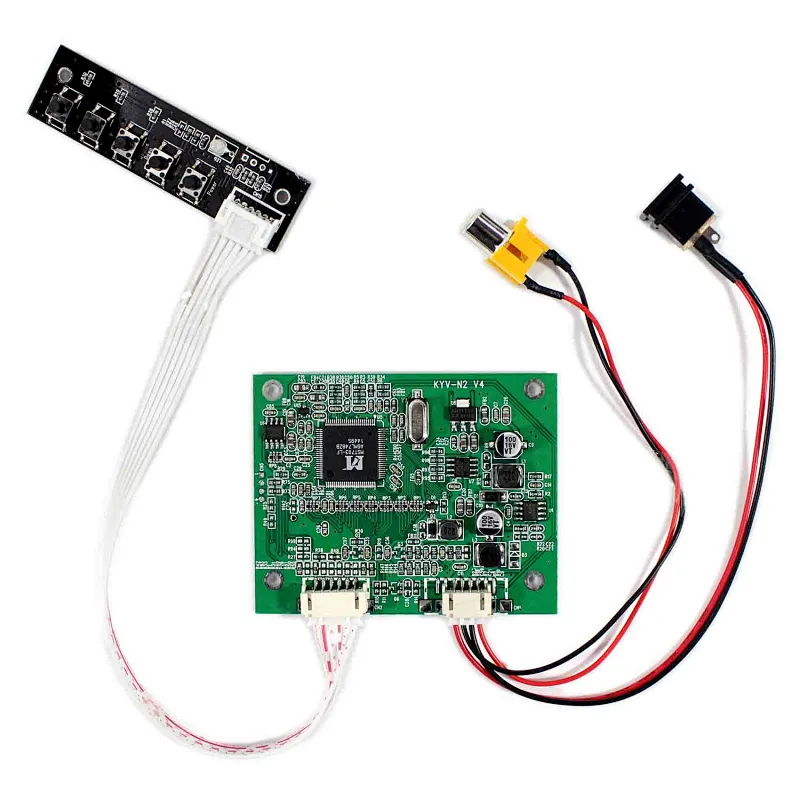

Packing list :
1× AV LCD Controller Board KYV-N2 V4
1×AV Signal Cable
1×PowerCable
1× Keyboard With Cable
