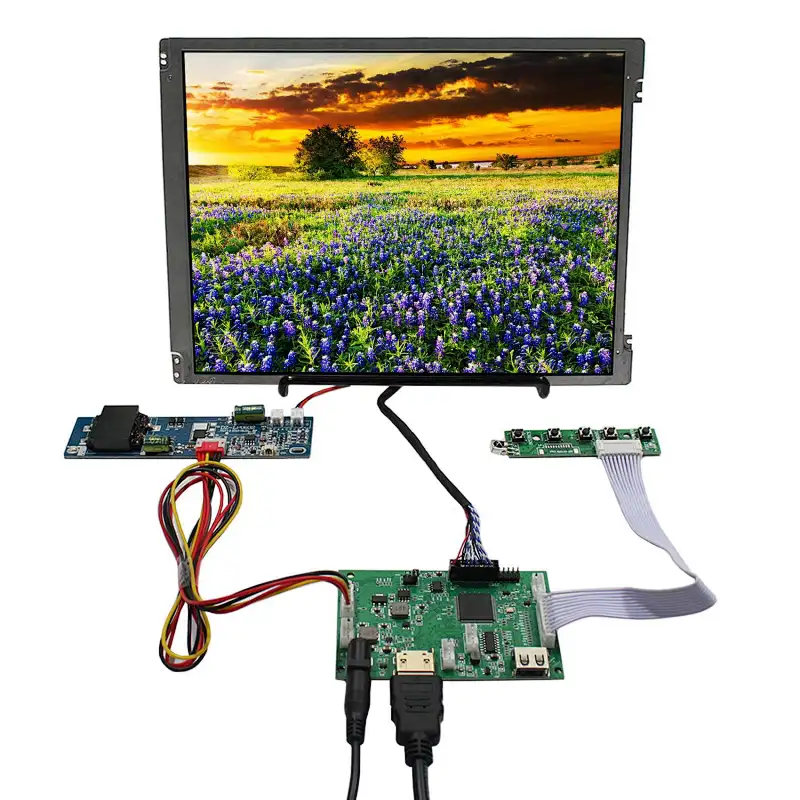

10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board
10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board
10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board
10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board
10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board
10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board
10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board
10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board
10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board
10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board
10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board
10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board
10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board

10.4 inch 1000nit 800X600 Replacements G104SN03 LCD Screen with HD-MI LCD Controller Board

Model NO.
K002807 VS-TY2660HU-823+G104SN03-1000 800X600
Quantity:

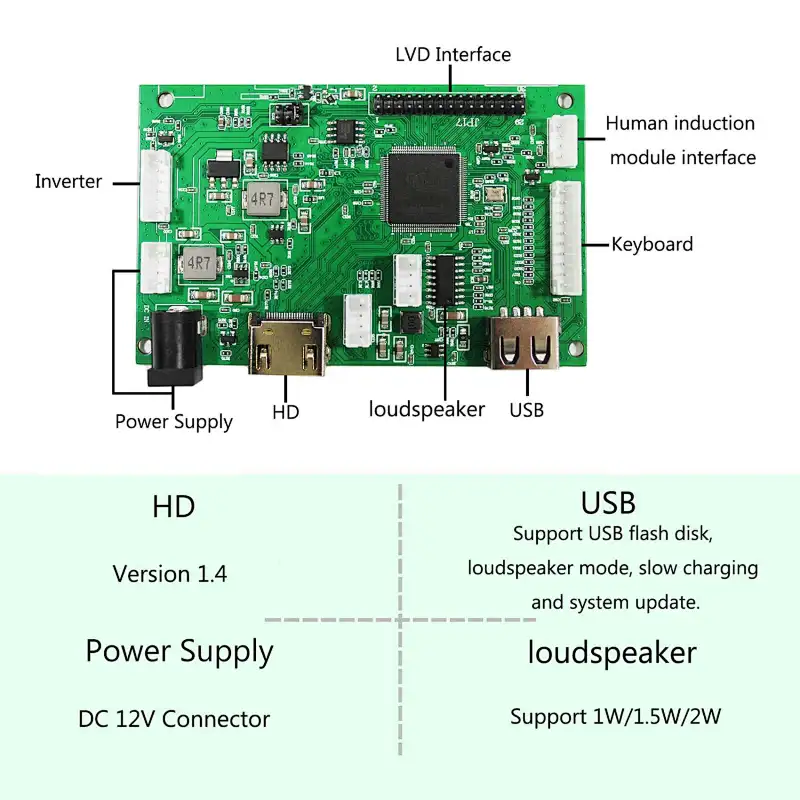

LCD Controller Board:
HD-MI.USB LCD Board Support Image flip 180degree
Automatic Brightness Adjustment
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HD-MI: Support HD-MI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

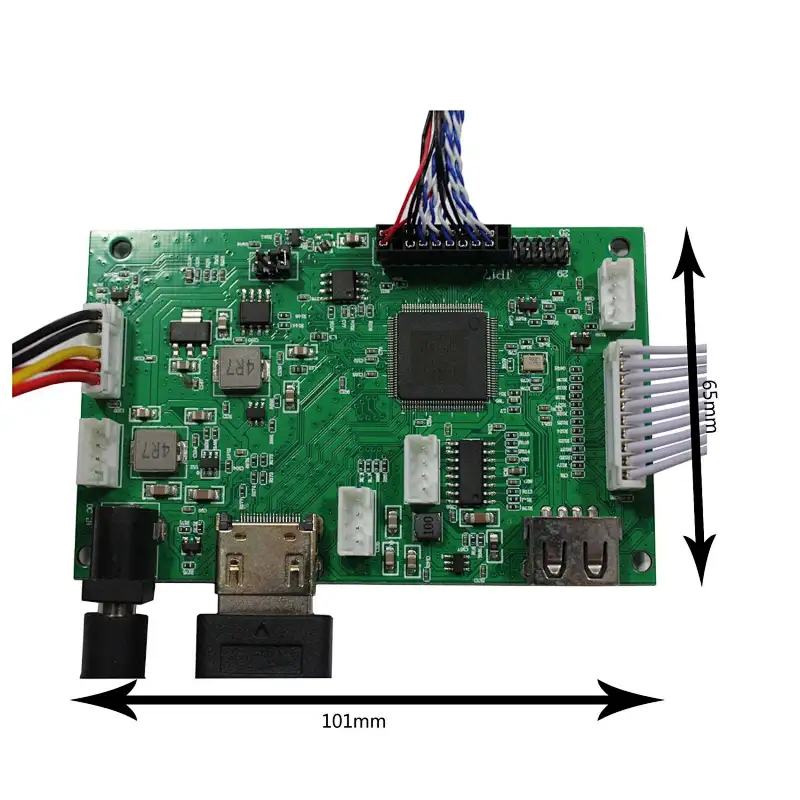

Board Size: 90mm x 51mm x 14mm

10.4" G104SN03-1000 800X600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×600

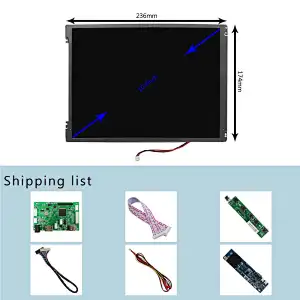

Outline Size 236 ×174.3×4.9 (H×V×D)
Display Area 211.2 ×158.4 (H×V)
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

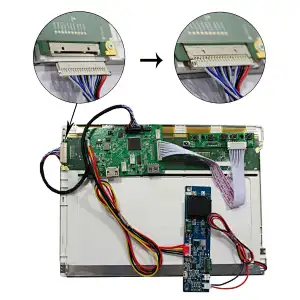

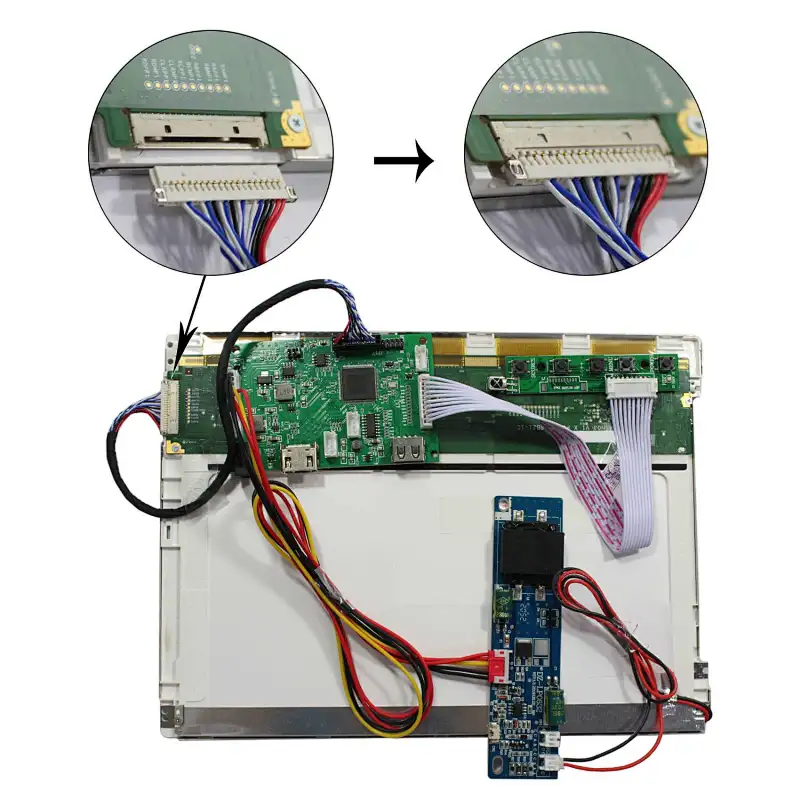

Packing list :
1× HD-MI LCD Board for 30Pin VS-TY2660HU-823
1×10.4inch G104SN03-1000 800X600 LCD Screen
1× Converter Board
1× LVDS Cable
1× Keyboard With Cable


Send Message

* clear input
*

Related Products

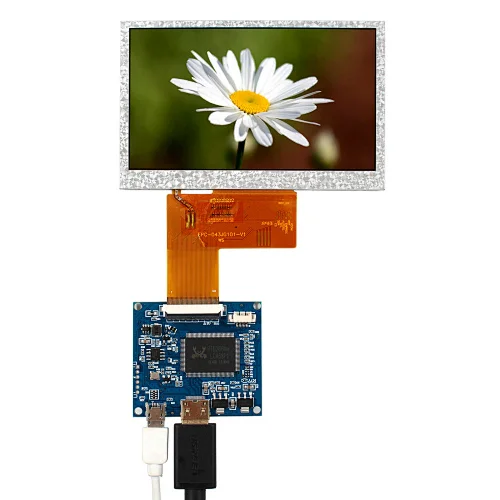

4.3 inch 800X480 VS043T-006A TFT-LCD Screen with HDMI LCD Controller Board
