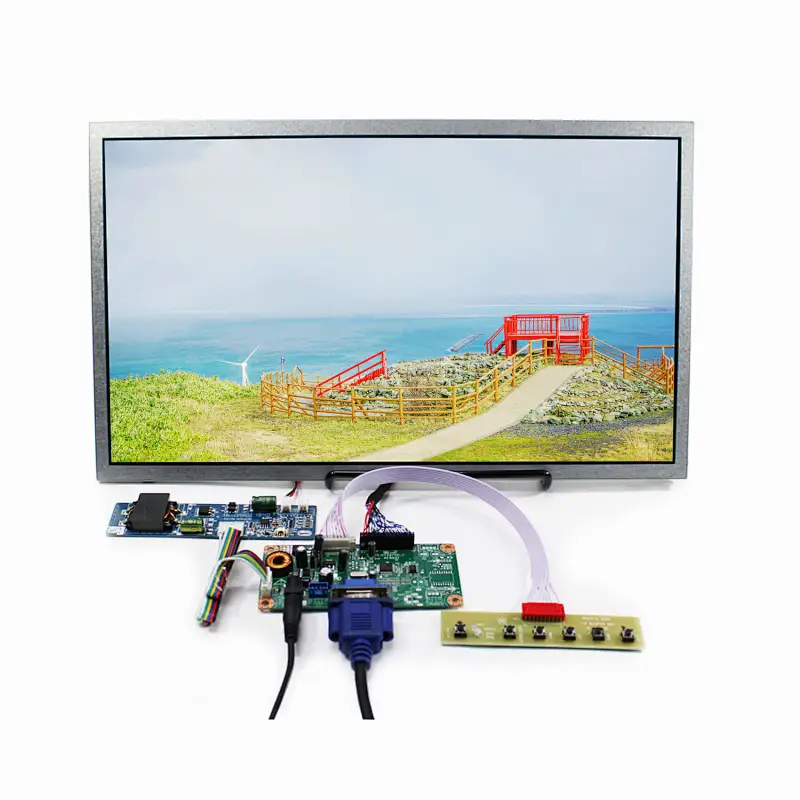

15.6inch G156HTN02.1 1920X1080 High Brightness 1000cd LCD Screen 15.6" Sunlight Readable Display With VGA LCD Controller Board

Model NO.
K002678 RT2270C-A+G156HTN02.1 1920X1080
Quantity:

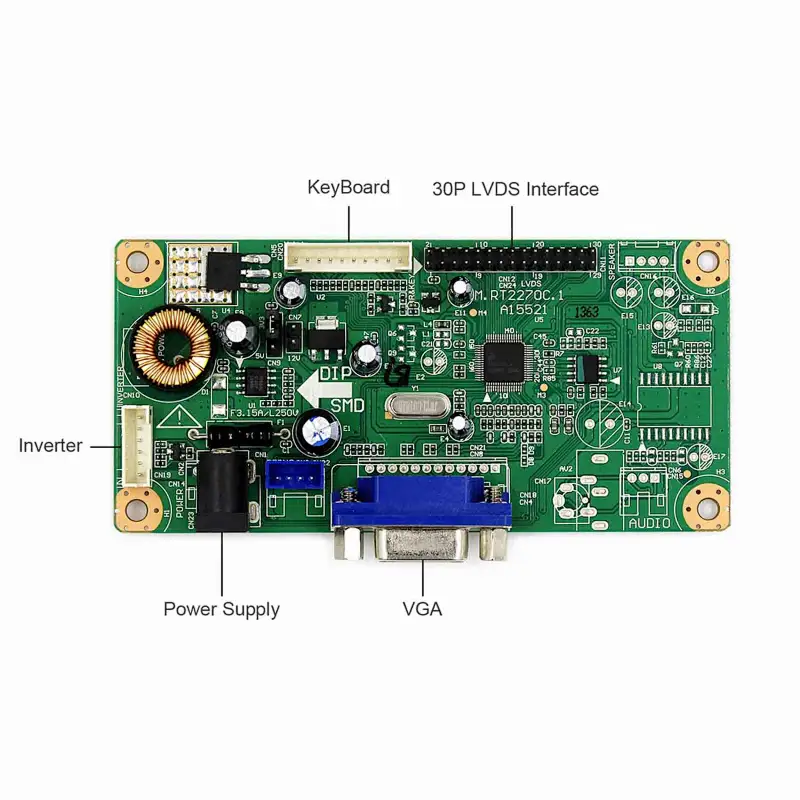

LCD Controller Board:
VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

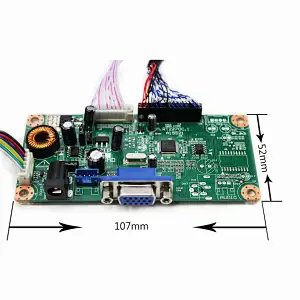

Board Size:107mm x 52mm x 18mm

15.6" G156HTN02.1 1920X1080 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1920(RGB)×1080, FHD, 141PPI
Outline Size 363.8(W)×215.9(H)×12.5(D) mm
Display Area 344.16(W)×193.59(H) mm
Brightness1000 cd/m²(Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage  3.3V (Typ.)

Packing list :
 VGA LCD Controller Board RT2270C-A
15.6" G156HTN02.1 1920X1080 LCD Screen

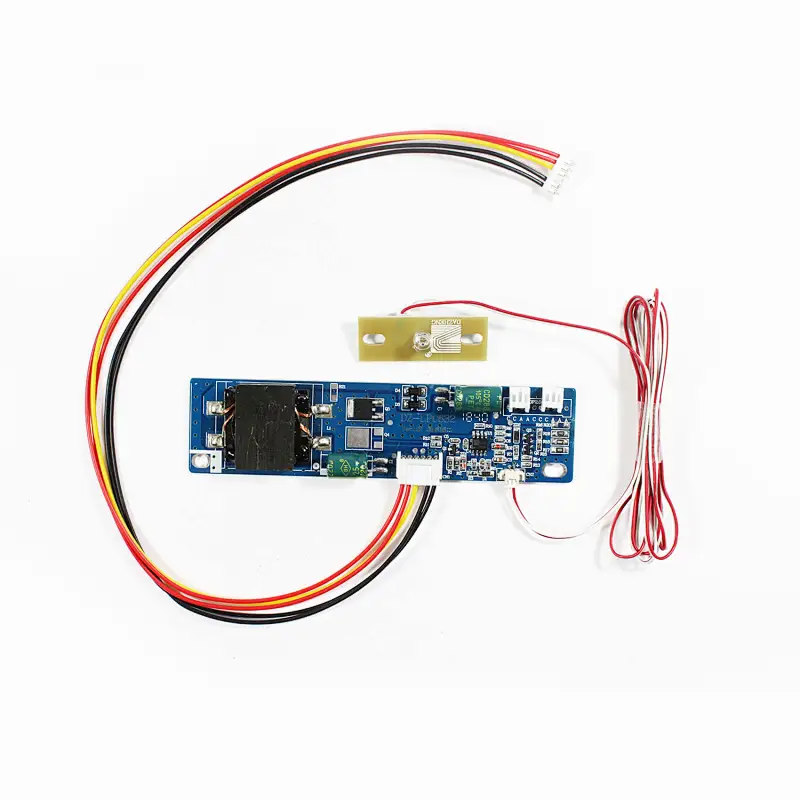

 Inverter Board
 LVDS Cable
 Keyboard With Cable
