15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board
15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board
15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board
15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board
15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board
15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board
15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board
15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board
15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board
15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board
15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board
15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board
15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board

15.6inch 1920X1080 1000nit Sunlight Readable Outdoor LCD Screen with HD-MI USB LCD Board

Model NO.
K003040-VS-TY2660HU-823+G156HTN02.1 1920X1080
Quantity:

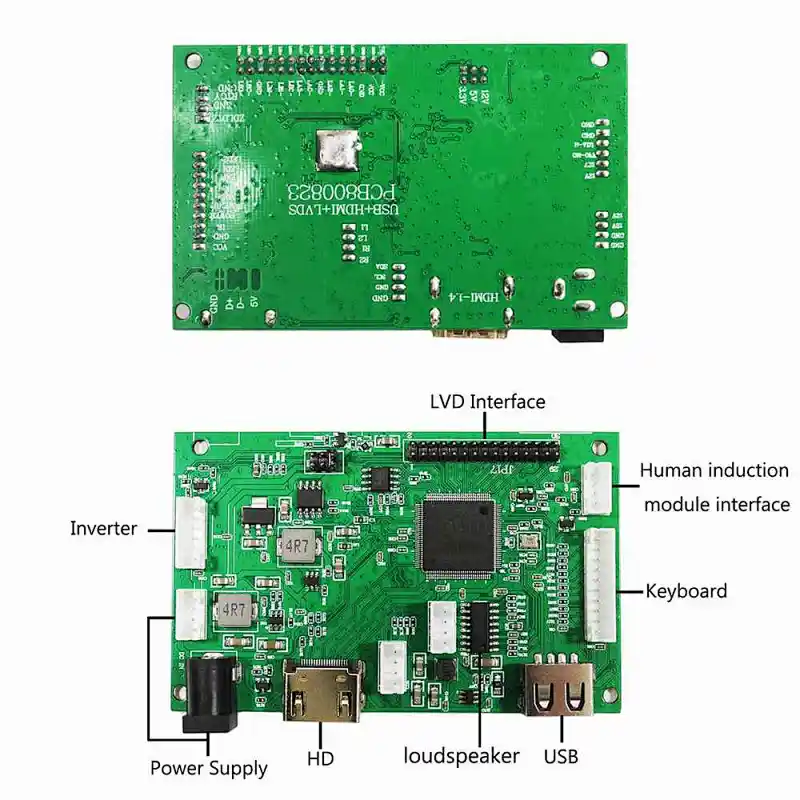

LCD Controller Board:
HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HD-MI: Support HD-MI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 56mm x 14mm

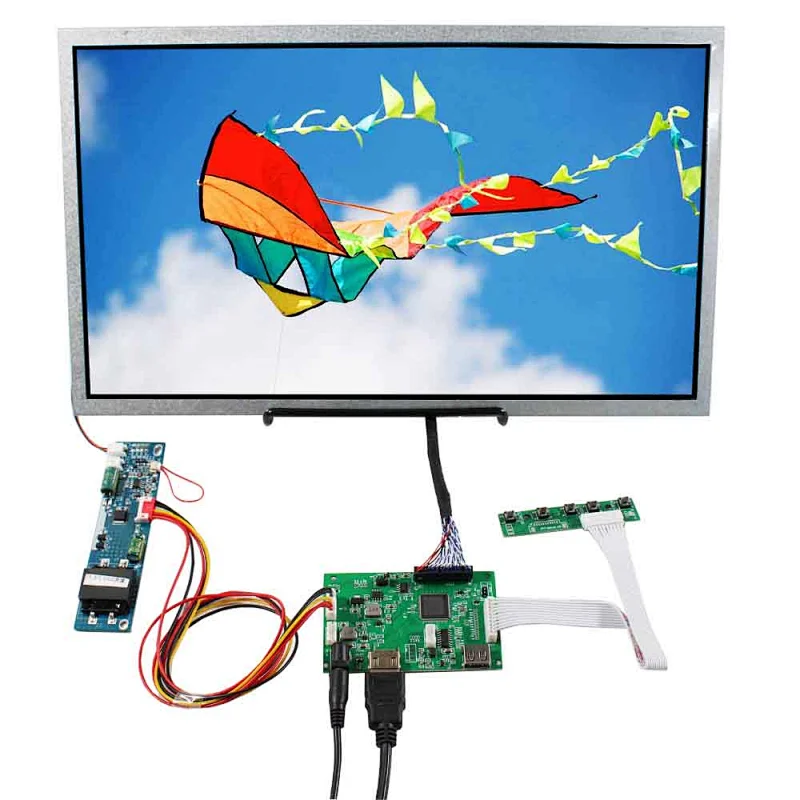

15.6"1920X1080 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1920(RGB)×1080, FHD, 141PPI
Outline Size 363.8(W)×215.9(H) ×12.5(D) mm
Display Area 344.16(W)×193.59(H) mm
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 3.3V (Typ.)

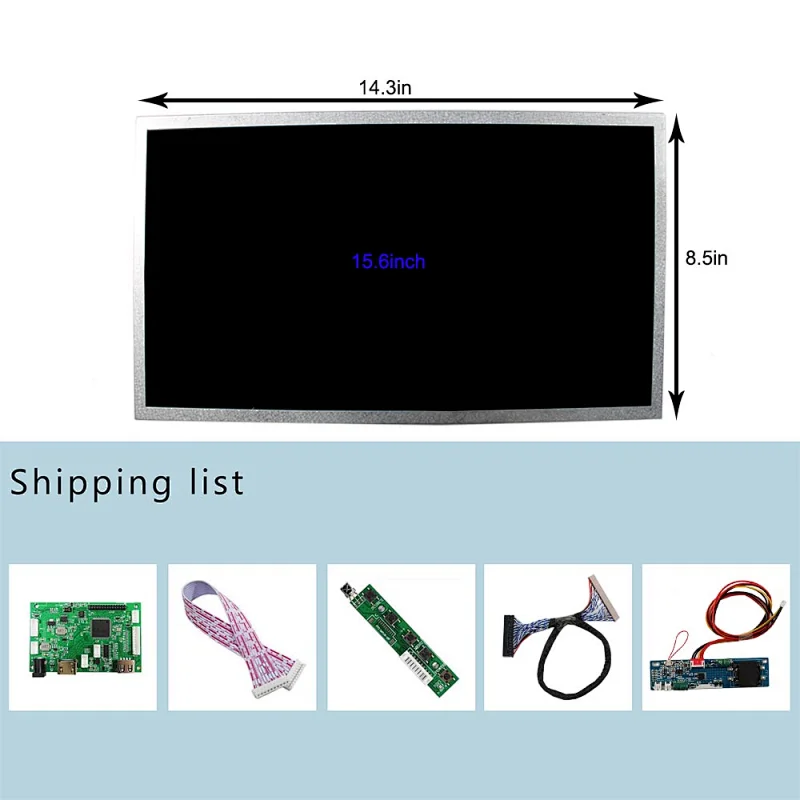

Packing list:
1× HD-MI USB LCD Board for 30Pin VS-TY2660HU-823
1×15.6"1920X1080 1000nit out door LCD Screen

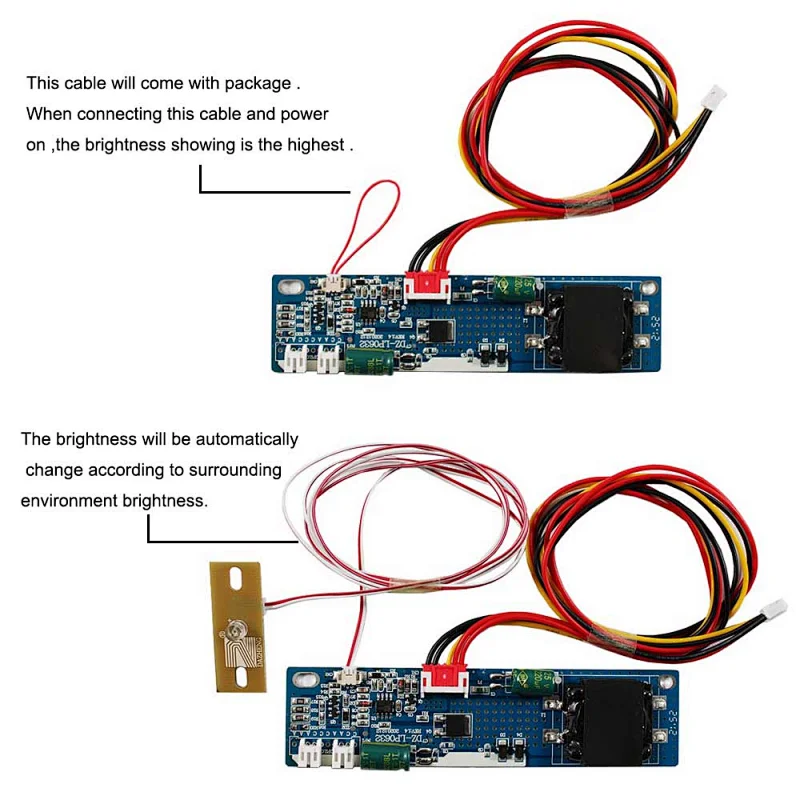

1× Inverter Board
Backlight Cable
1× Keyboard With Cable
