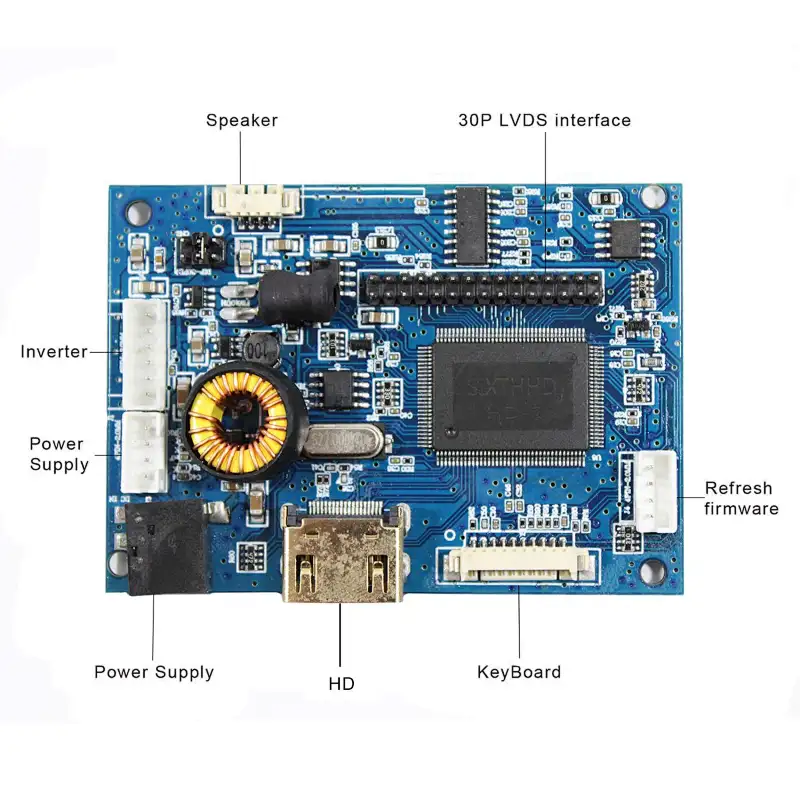

LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker (4Pin PH1.0 connector)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

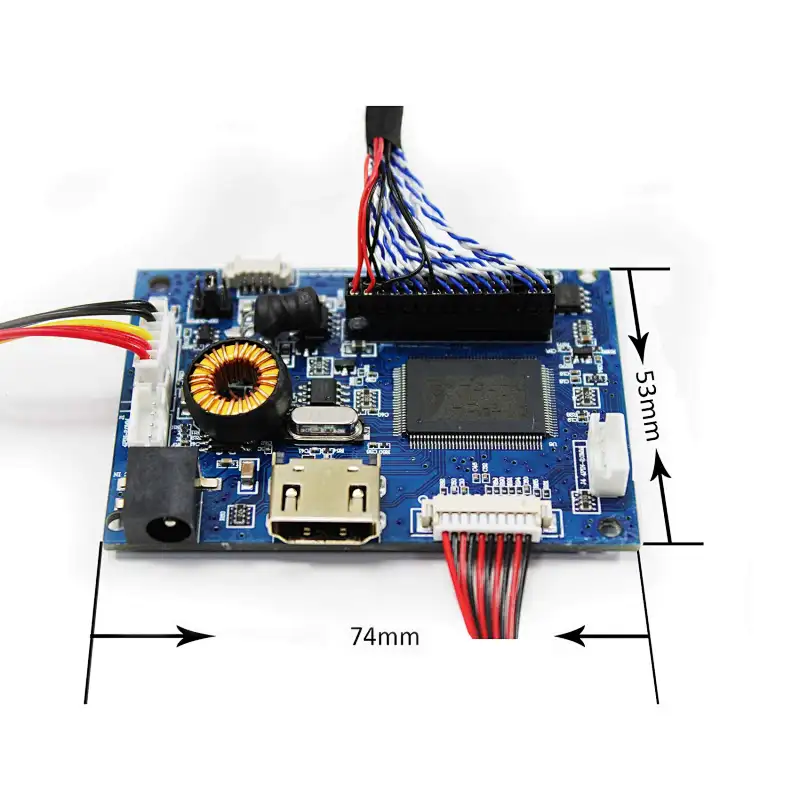

Board Size: 74mm x 53mm x 12mm

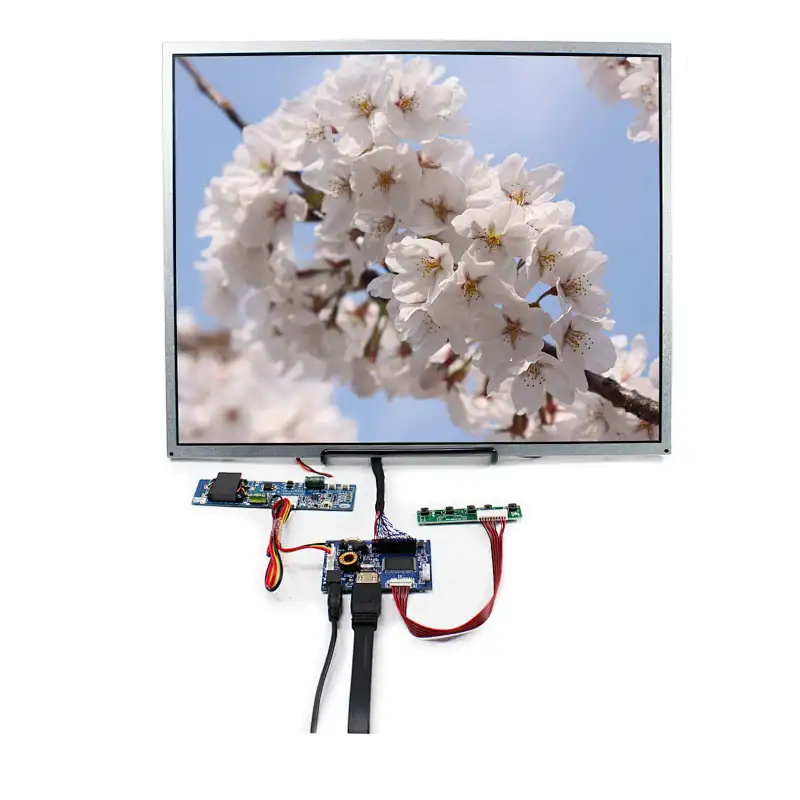

17.0" M170ETN01.1 1280X1024 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1280(RGB)×1024, SXGA, 96PPI
Outline Size 358.5(W)×296.5(H)×10.8(D) mm
Display Area 337.92(W)×270.336(H) mm
Brightness1000 cd/m²(Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Backlight WLED
Input Voltage 5.0V (Typ.)

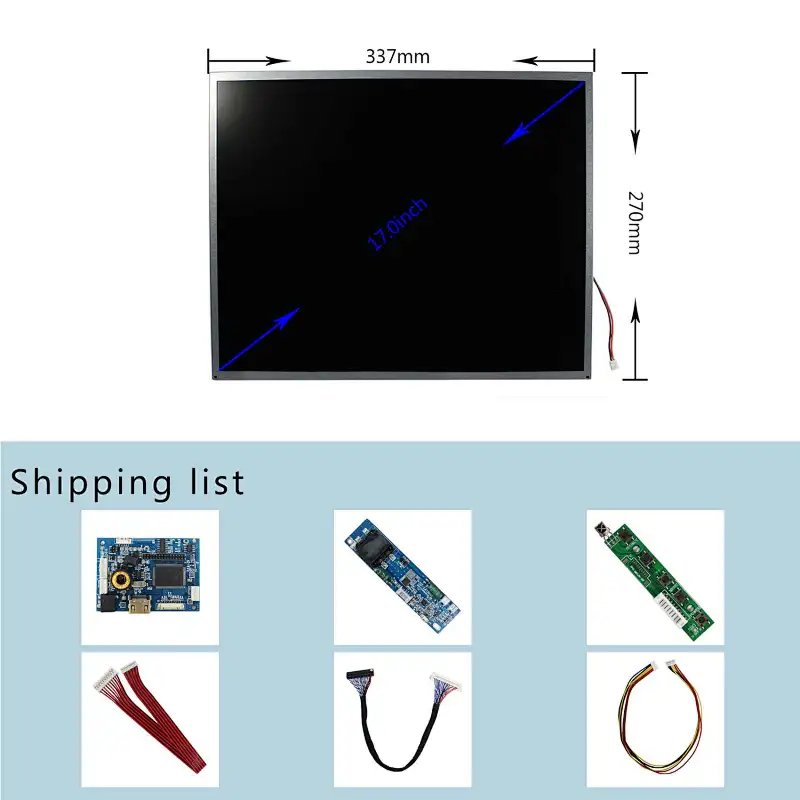

Packing list:
1× HDMI Audio LCD Controller Board VS-TY2660H-V661
1×17.0" M170ETN01.1 1280X1024 LCD Screen
1× LVDS Cable

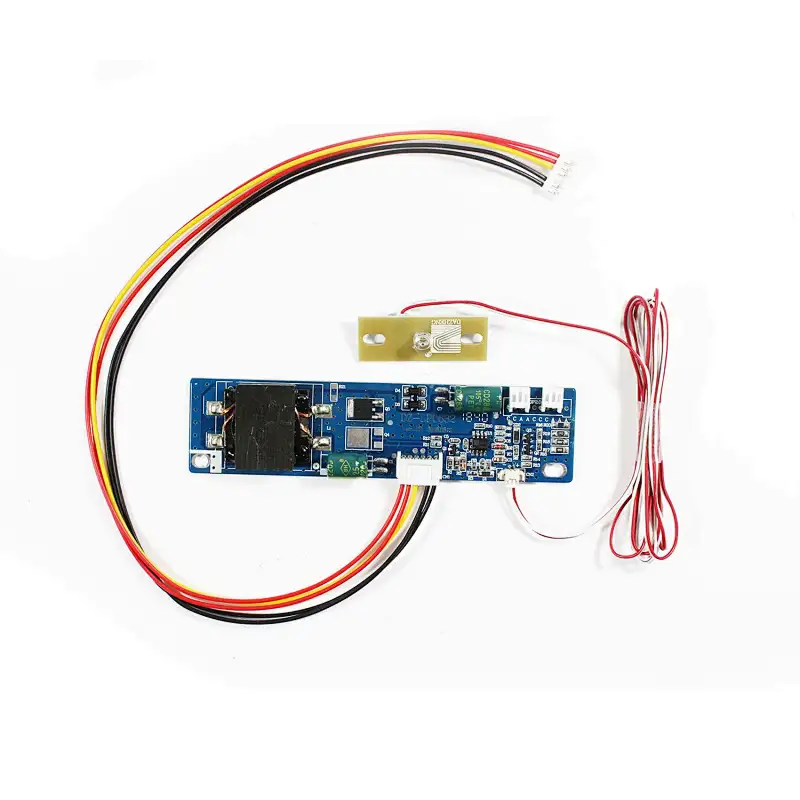

1× Backlight Cable
1× Keyboard With Cable
