21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board
21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board
21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board
21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board
21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board
21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board
21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board
21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board
21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board
21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board
21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board
21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board
21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board

21.5inch M215HJJ-P02 1920x1080 1000nit High Brightness Industrial LCD Screen With HD-MI Audio LCD Controller board

Model NO.
K002691-VS-TY2660H-V661+M215HJJ-P02 1920x1080
Quantity:

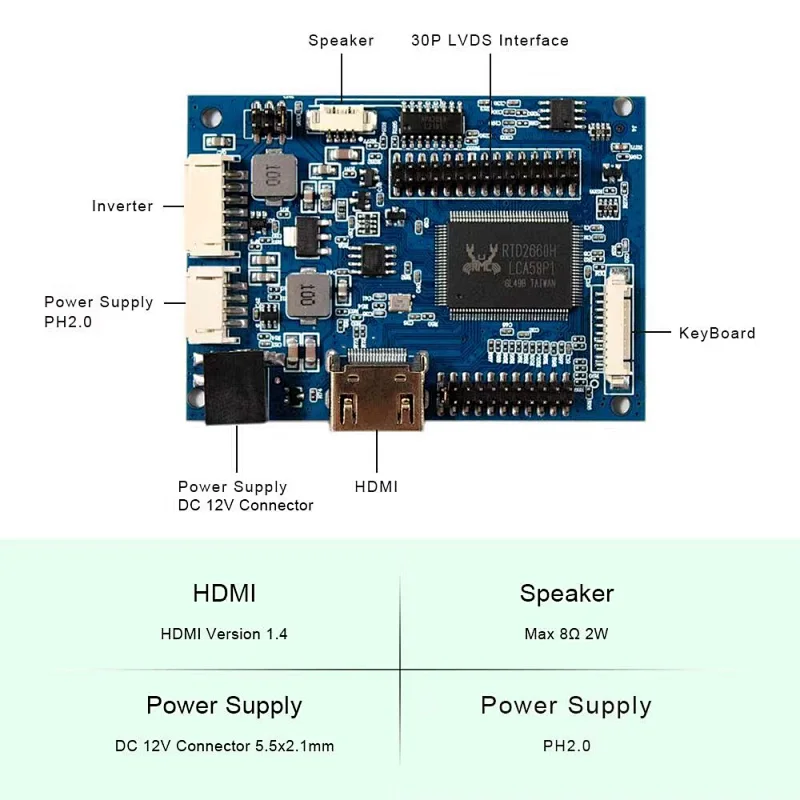

LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker (4Pin PH1.0 connector)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

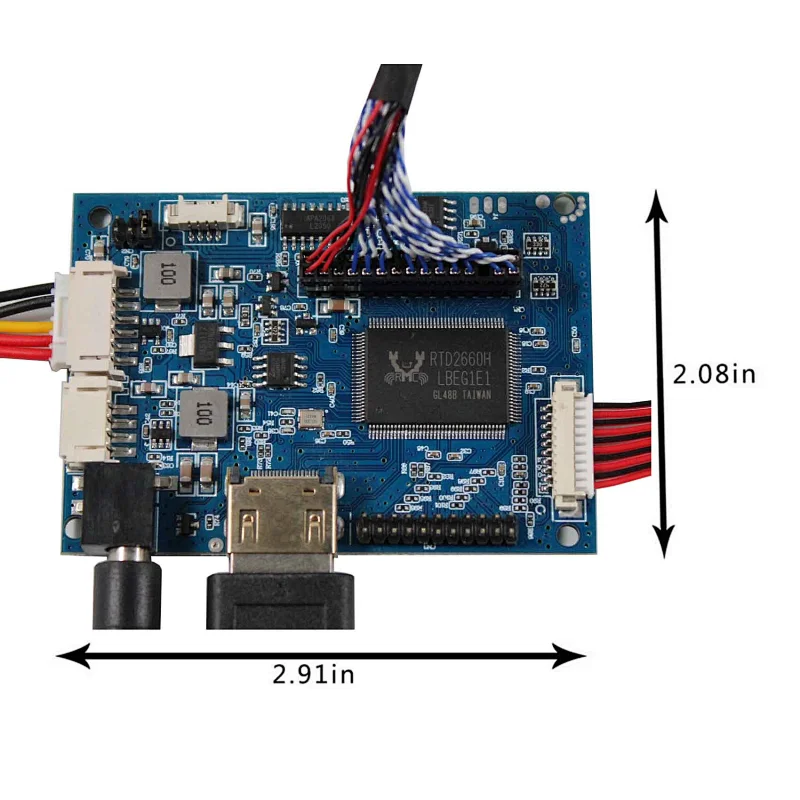

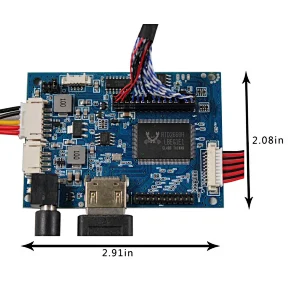

Board Size: 74mm x 53mm x 12mm

21.5"M215HJJ-P02 1920x1080 LCD Screen:
Display Mode  MVA, Normally Black, Transmissive
Resolution 1920(RGB)×1080, FHD, 102PPI
Outline Size 487.664(W)×279.286(H) ×1.29(D) mm
Display Area 476.064(W)×267.786(H) mm
Brightness 1000 cd/m²
Contrast Ratio 3000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥20)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

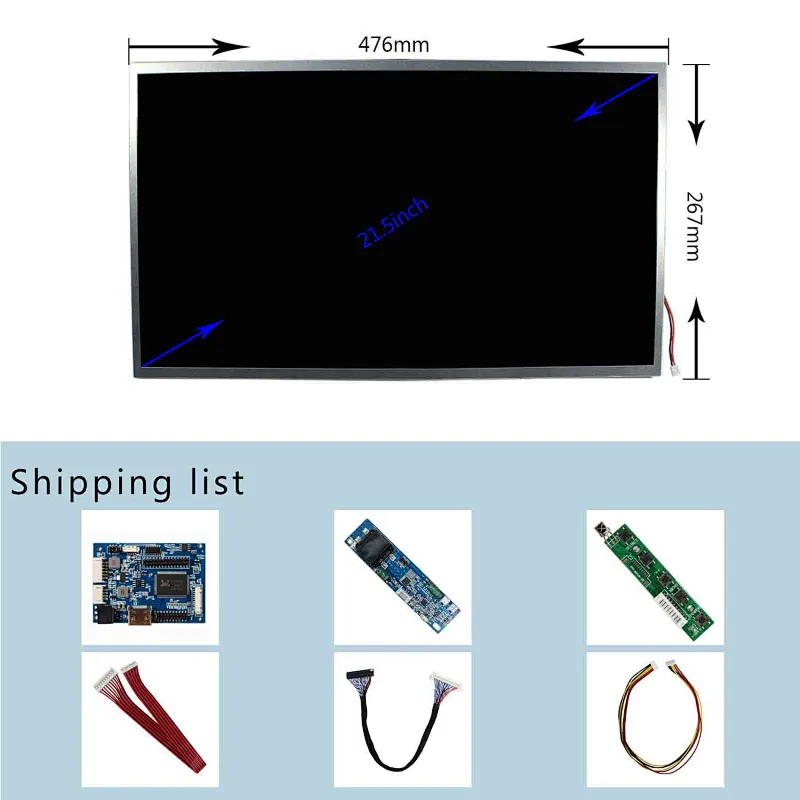

Packing list:
1× HD-MI Audio LCD Controller Board VS-TY2660H-V661
1×21.5" M215HJJ-P02 1920x1080 LCD Screen
1× LVDS Cable

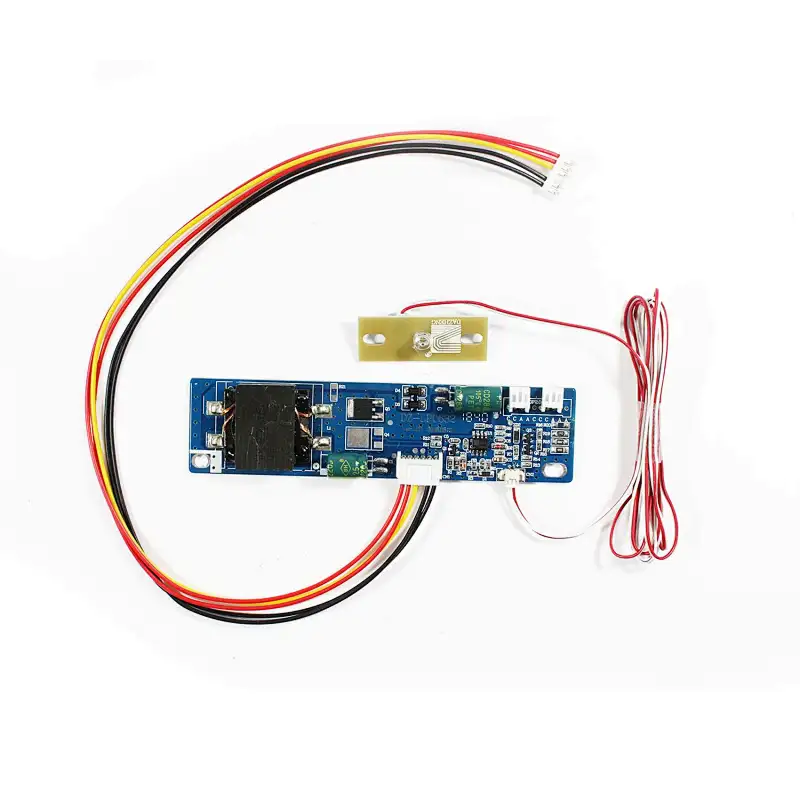

1× Backlight Cable
1× Keyboard With Cable
