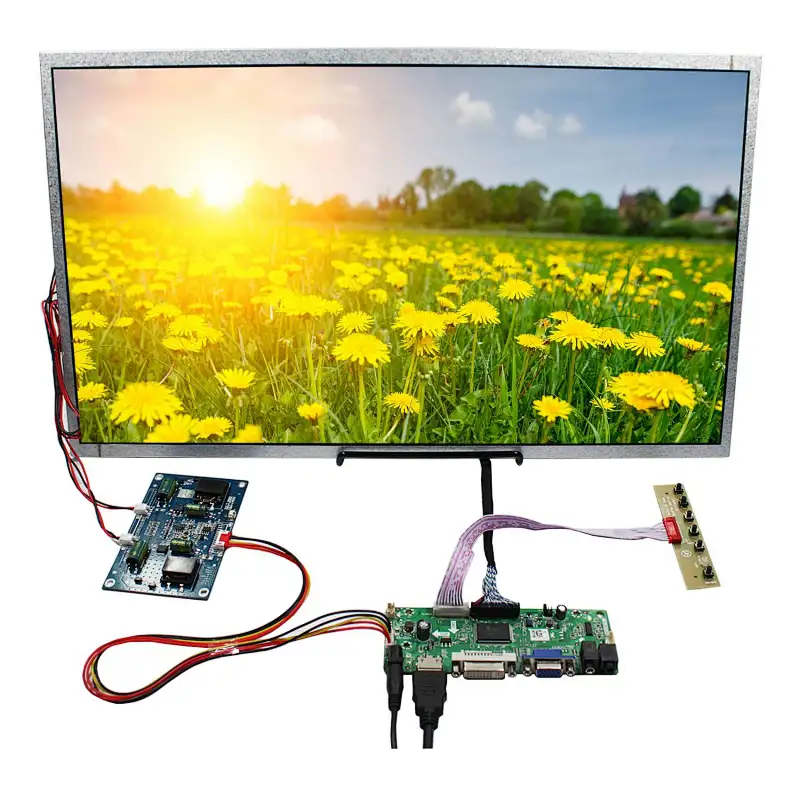

21.5inch 1920x1080 M215HJJ-P02 Sunlight Readable 2000nit LCD Screen With HD-MI VGA DVI LCD Controller Board
21.5inch 1920x1080 M215HJJ-P02 Sunlight Readable 2000nit LCD Screen With HD-MI VGA DVI LCD Controller Board
21.5inch 1920x1080 M215HJJ-P02 Sunlight Readable 2000nit LCD Screen With HD-MI VGA DVI LCD Controller Board
21.5inch 1920x1080 M215HJJ-P02 Sunlight Readable 2000nit LCD Screen With HD-MI VGA DVI LCD Controller Board
21.5inch 1920x1080 M215HJJ-P02 Sunlight Readable 2000nit LCD Screen With HD-MI VGA DVI LCD Controller Board
21.5inch 1920x1080 M215HJJ-P02 Sunlight Readable 2000nit LCD Screen With HD-MI VGA DVI LCD Controller Board
21.5inch 1920x1080 M215HJJ-P02 Sunlight Readable 2000nit LCD Screen With HD-MI VGA DVI LCD Controller Board
21.5inch 1920x1080 M215HJJ-P02 Sunlight Readable 2000nit LCD Screen With HD-MI VGA DVI LCD Controller Board
21.5inch 1920x1080 M215HJJ-P02 Sunlight Readable 2000nit LCD Screen With HD-MI VGA DVI LCD Controller Board
21.5inch 1920x1080 M215HJJ-P02 Sunlight Readable 2000nit LCD Screen With HD-MI VGA DVI LCD Controller Board
21.5inch 1920x1080 M215HJJ-P02 Sunlight Readable 2000nit LCD Screen With HD-MI VGA DVI LCD Controller Board

21.5inch 1920x1080 M215HJJ-P02 Sunlight Readable 2000nit LCD Screen With HD-MI VGA DVI LCD Controller Board

Model NO.
K002832-M.NT68676.3+21.5inch 1920x1080
Quantity:
LCD Controller Board:
HD-MIDVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI DVI VGA
Audio Input: HD-MI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

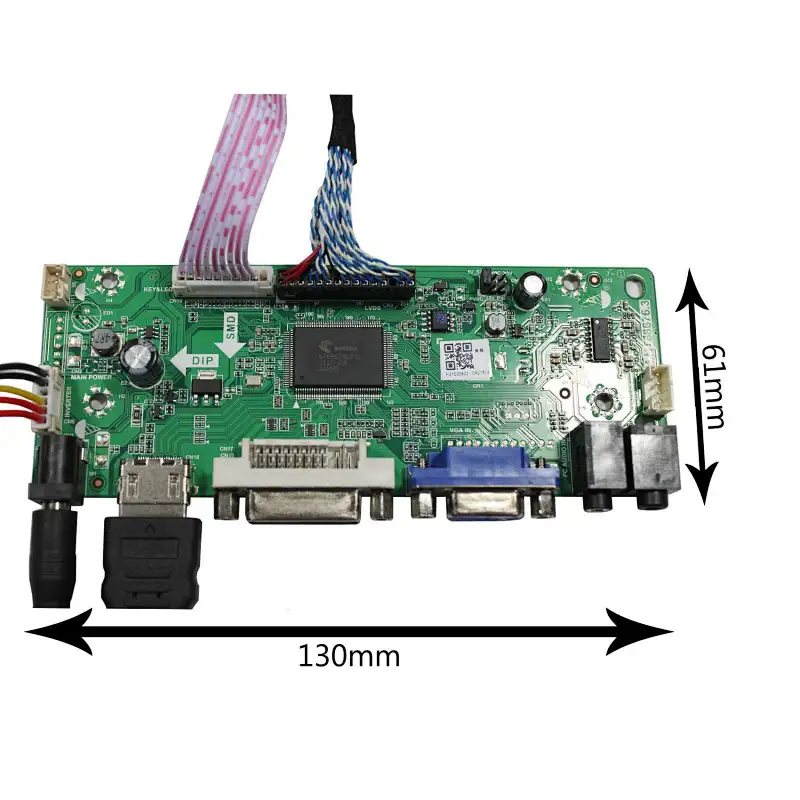

Board Size: 125mm x 58mm x 17mm

21.5"M215HJJ-P02-2000 1920x1080 LCD Screen:
Display Mode AHVA, Normally Black, Transmissive
Resolution1920(RGB)×1080   (FHD)  102PPI

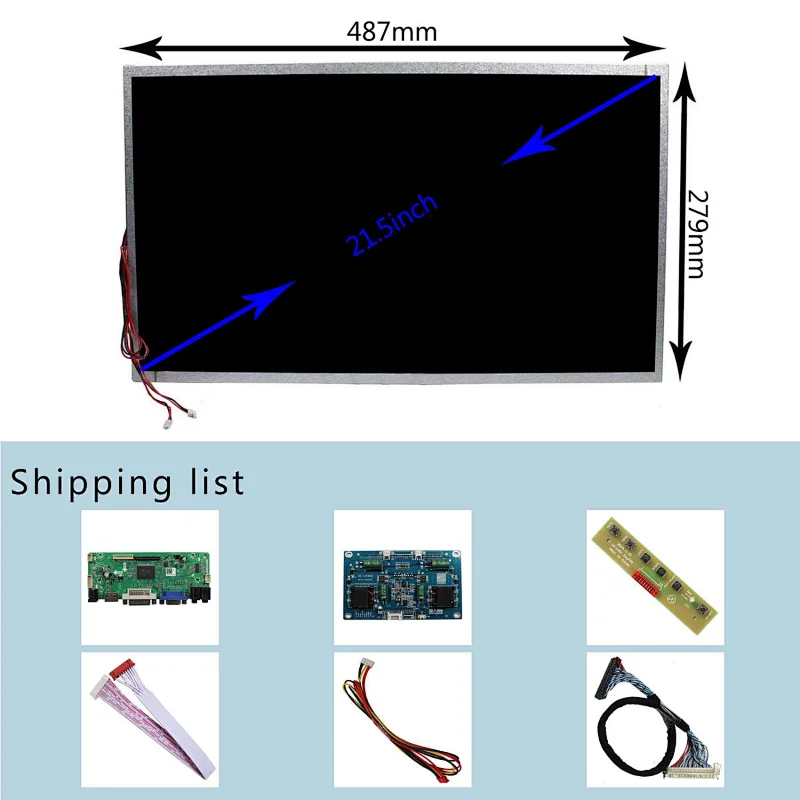

Outline Size 487.664×279.286×1.29 (H×V×D)
Display Area 476.064×267.786 (H×V)
Brightness 2000 cd/m²
Contrast Ratio 3000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥20)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Backlight WLED
Input Voltage 5.0V (Typ.)

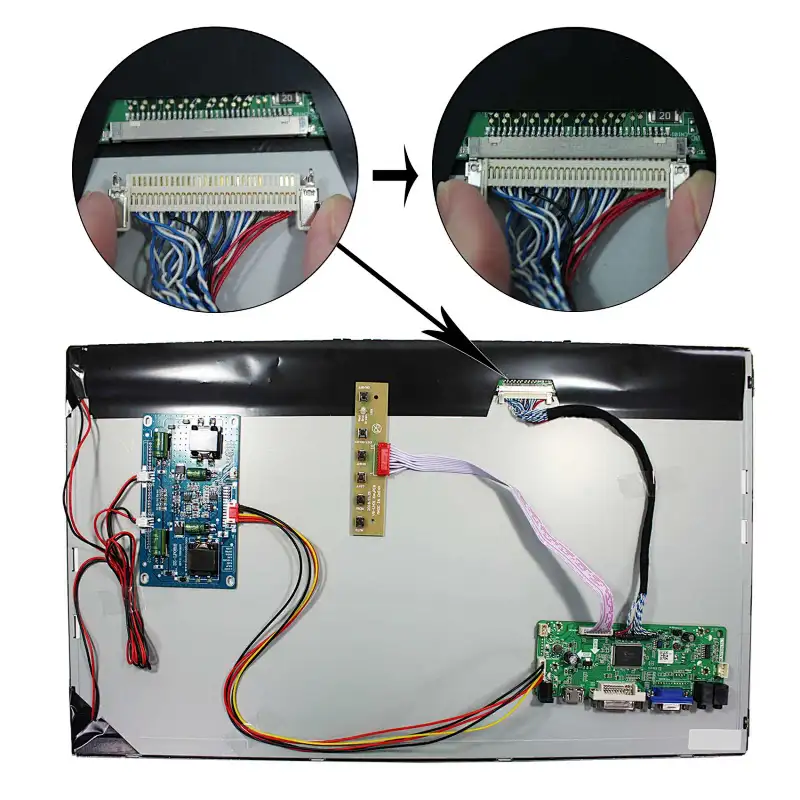

Packing list :
1× HD-MI VGA DVI LCD Controller Board M.NT68676
1×21.5"M215HJJ-P02-2000 1920x1080 LCD Screen

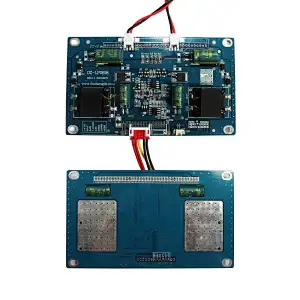

1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
1× Remote Controller (Battery not included)
