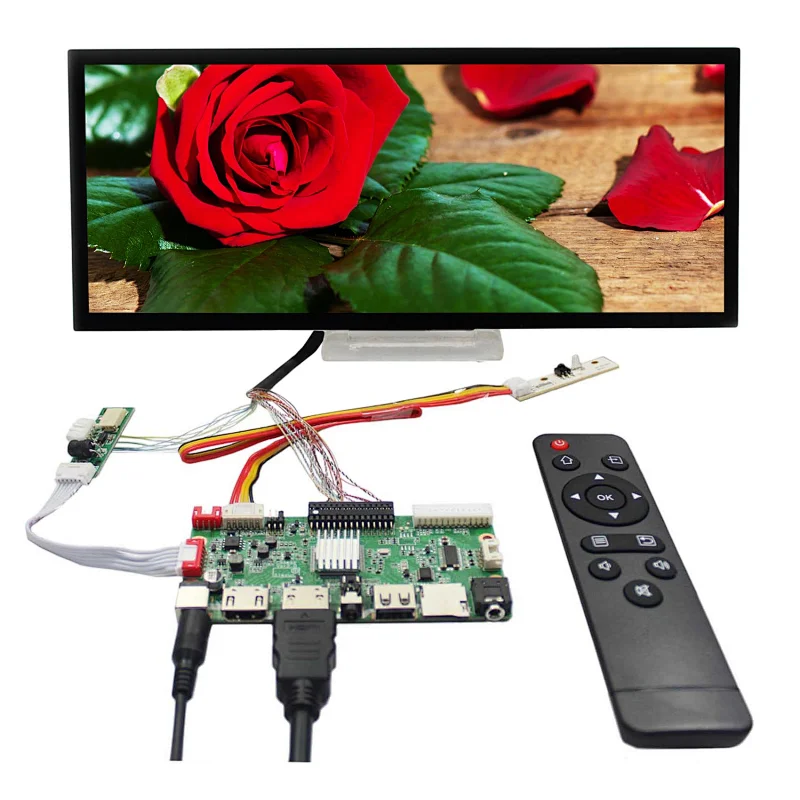

12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board

12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 IPS 850nit LCD Screen with HDMI VGA DVI LCD Controller Board

Model NO.
K002705- M.NT68676+HSD123KPW1-A30 1920X720
Quantity:

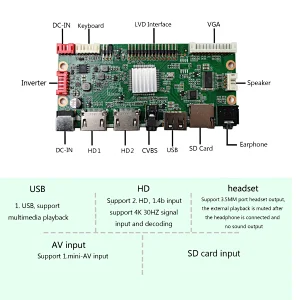

LCD Controller Board:

HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI DVI VGA

Audio Input: HDMI

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

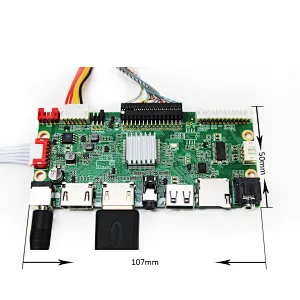

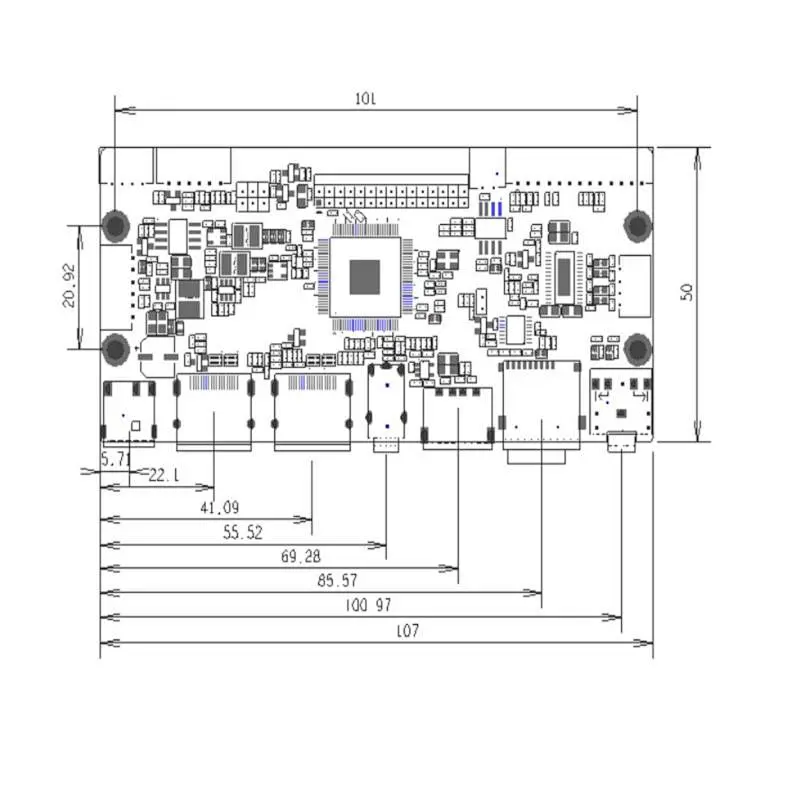

Board Size: 125mm x 58mm x 17mm

12.3" HSD123KPW1-A30/HSD123KPW2-D10  1920X720 LCD Screen:

Display Mode  IPS Pro, Normally Black, Transmissive

Resolution 1920RGB)×720

Outline Size 308.1 × 130×15.6 (H×V×D)

Display Area 292.032 × 109.512 (H×V)

Brightness 850 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (2 ch, 8-bit) , Connector , 50 pins

Backlight  WLED

Input Voltage  3.3V (Typ.)



Packing list:

1× HDMI VGA DVI LCD Controller Board M.NT68676

1×12.3inch HSD123KPW1-A30/HSD123KPW2-D10 1920X720 LCD Screen

1× Converter Board

1× Signal Cable

1× Keyboard With Cable
