Model NO.
K002359-VS-56S1+12.3inch HSD123IPW1-A00 1920X720
Quantity:
LCD ConLCD Controller Board:
Android 4.4 LCD Controller Board For LCD Screen
Input Power Adapter: 12Vdc
Support 4K2K@30fps 1080P@60fps
USB 3G/4G InternetModule RJ45 WIFI Module
Come In Standby Model When Not Input Signal Bit
CPU HI3751V320 ARM Dual-Core Cortex-A53 64-bit 4 Mali450 GPU
RAM DDR3512MB
Flash Memory 8GB
OS: Android 4.4
Board Size: 138mm x 53mm x 10mm

28.6" VSFHD286IIE01 1920X540 LCD Screen:
Display Mode  ADS, Normally Black, Transmissive
Resolution1920RGB)×540
Outline Size 736.4 ×235.4×18.6 (H×V×D)
Display Area 698.4×196.4(H×V)
Brightness500 cd/m² (Typ.)
Contrast Ratio 3000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

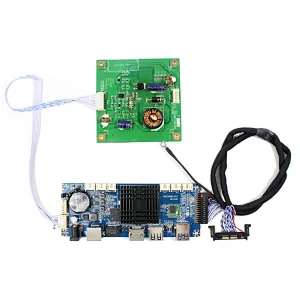

Packing list :

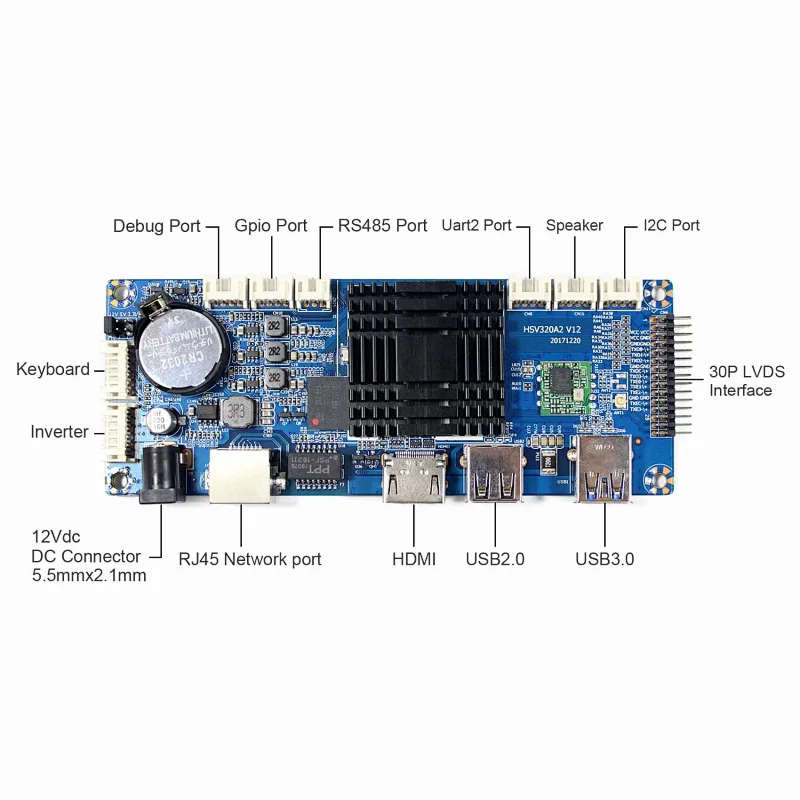

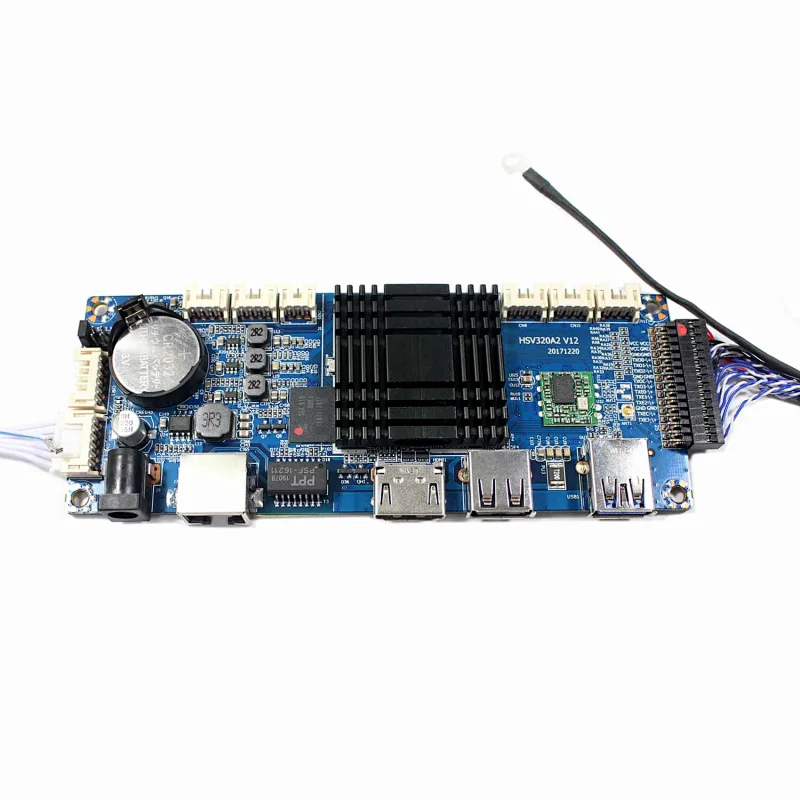

Android 4.4 LCD Controller Board HSV320A2 V10
PS: The Battery on Board not Included.Connector Mouse and keyboard Controller The Board.

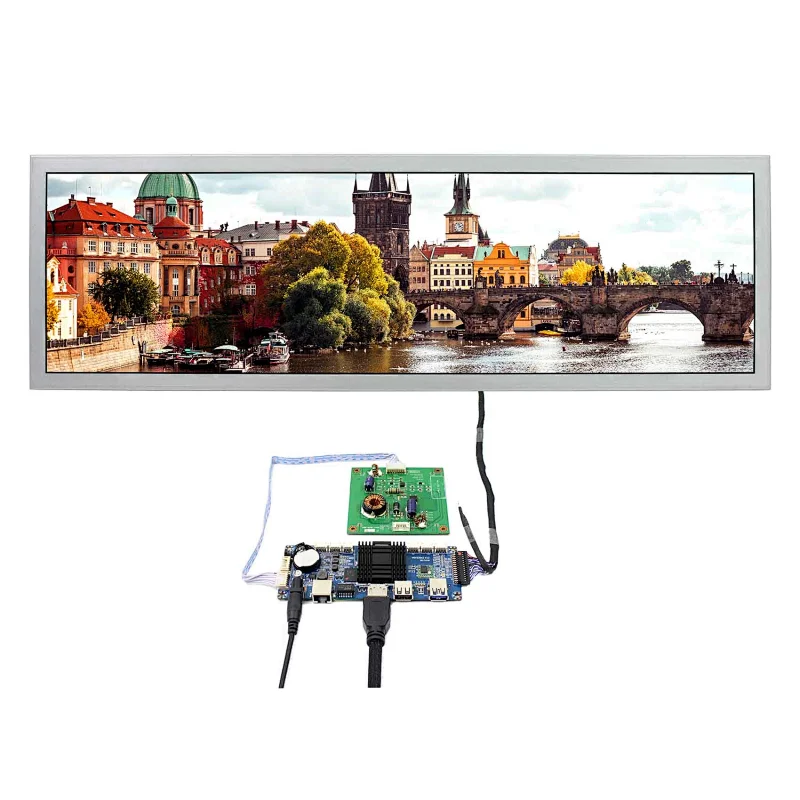

 28.6inchVSFHD286IIE01 1920X540 IPSLCD Screen
1× Signal Cable
Backlight Board
