Model NO.
K001849- RT2270C-A+DF14-20P+VS-TCON50-V1+VS035SD1
Quantity:
LCD Controller Board:
VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 107mm x 52mm x 18mm

3.5"VS035SD1 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution800RGB)×600
Outline Size 84.03 × 65.24×3 (H×V×D)
Display Area 71.28 × 53.46 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 50/65/65/65 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6-bit) , FPC , 50 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

Packing list :

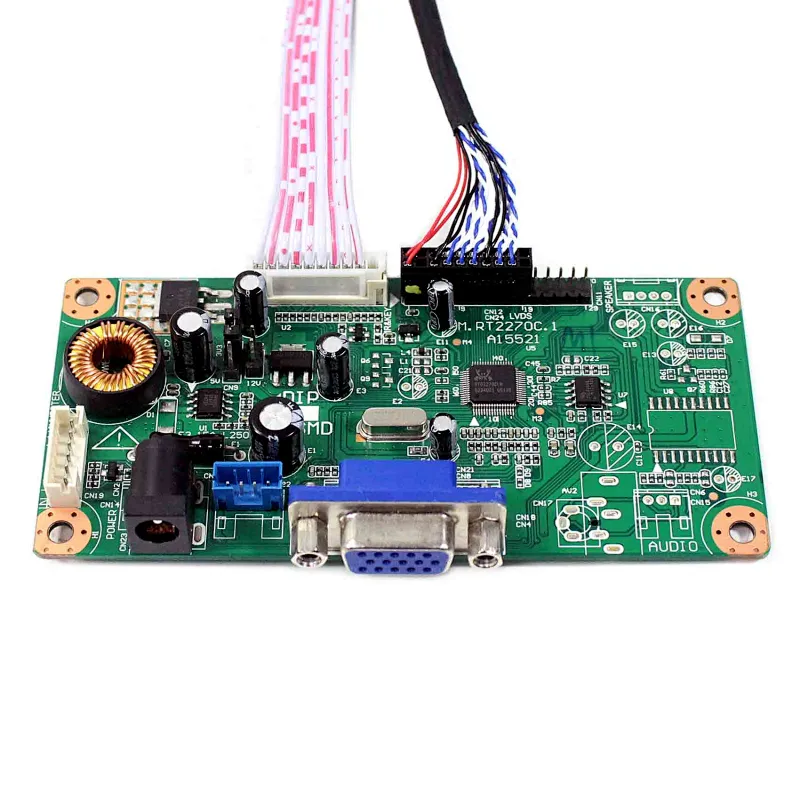

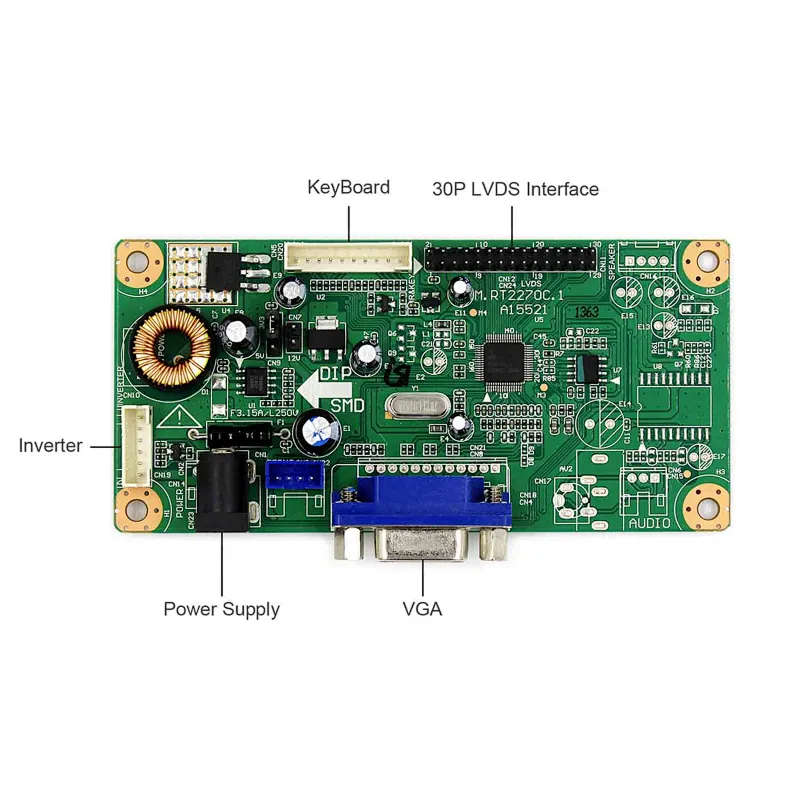

 VGA LCD Controller Board RT2270C-A
 3.5inchVS035SD1 800X600 LCD Screen

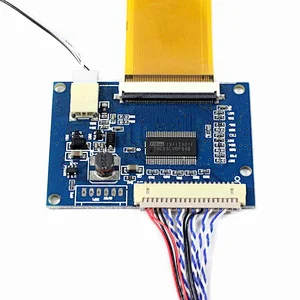

 Converter Board VS-TCON50-V1
