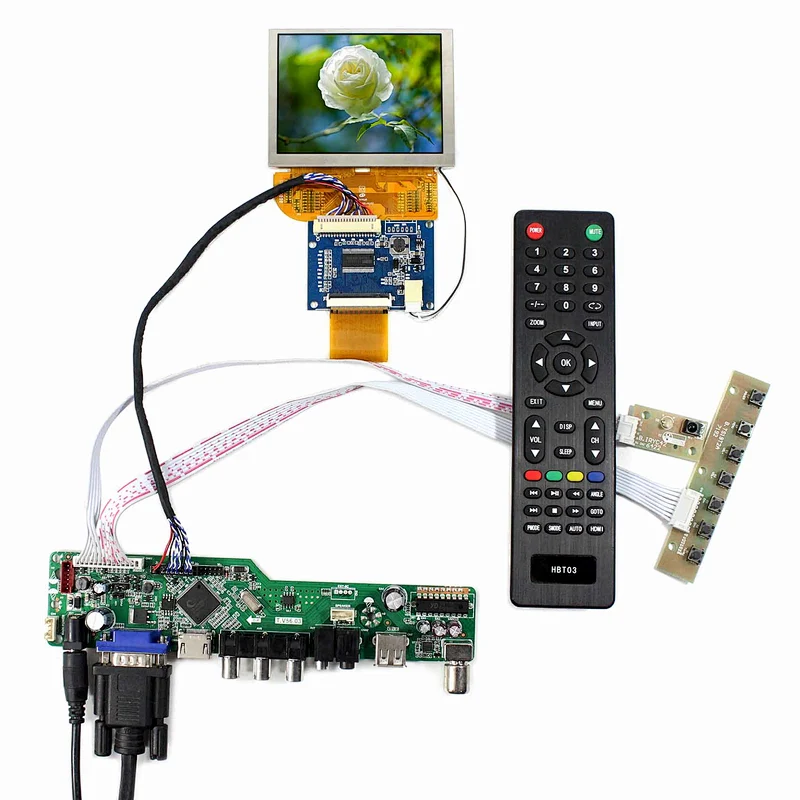

3.5inch 800X600 VS035SD1 TFT-LCD Screen With HDMI VGA AV USB RF LCD Controller Board
3.5inch 800X600 VS035SD1 TFT-LCD Screen With HDMI VGA AV USB RF LCD Controller Board
3.5inch 800X600 VS035SD1 TFT-LCD Screen With HDMI VGA AV USB RF LCD Controller Board
3.5inch 800X600 VS035SD1 TFT-LCD Screen With HDMI VGA AV USB RF LCD Controller Board
3.5inch 800X600 VS035SD1 TFT-LCD Screen With HDMI VGA AV USB RF LCD Controller Board
3.5inch 800X600 VS035SD1 TFT-LCD Screen With HDMI VGA AV USB RF LCD Controller Board
3.5inch 800X600 VS035SD1 TFT-LCD Screen With HDMI VGA AV USB RF LCD Controller Board
3.5inch 800X600 VS035SD1 TFT-LCD Screen With HDMI VGA AV USB RF LCD Controller Board
3.5inch 800X600 VS035SD1 TFT-LCD Screen With HDMI VGA AV USB RF LCD Controller Board
3.5inch 800X600 VS035SD1 TFT-LCD Screen With HDMI VGA AV USB RF LCD Controller Board
3.5inch 800X600 VS035SD1 TFT-LCD Screen With HDMI VGA AV USB RF LCD Controller Board

3.5inch 800X600 VS035SD1 TFT-LCD Screen With HDMI VGA AV USB RF LCD Controller Board

Model NO.
K001850-VST56+DF14-20P+VS-TCON50-V1+VS035SD1
Quantity:
LCD Controller Board:
HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC
Video Input: HDMI VGA AV USB RF
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 188mm x 43mm x 17mm

3.5"VS035SD1 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution800RGB)×600
Outline Size 84.03 × 65.24×3 (H×V×D)
Display Area 71.28 × 53.46 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 50/65/65/65 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6-bit) , FPC , 50 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

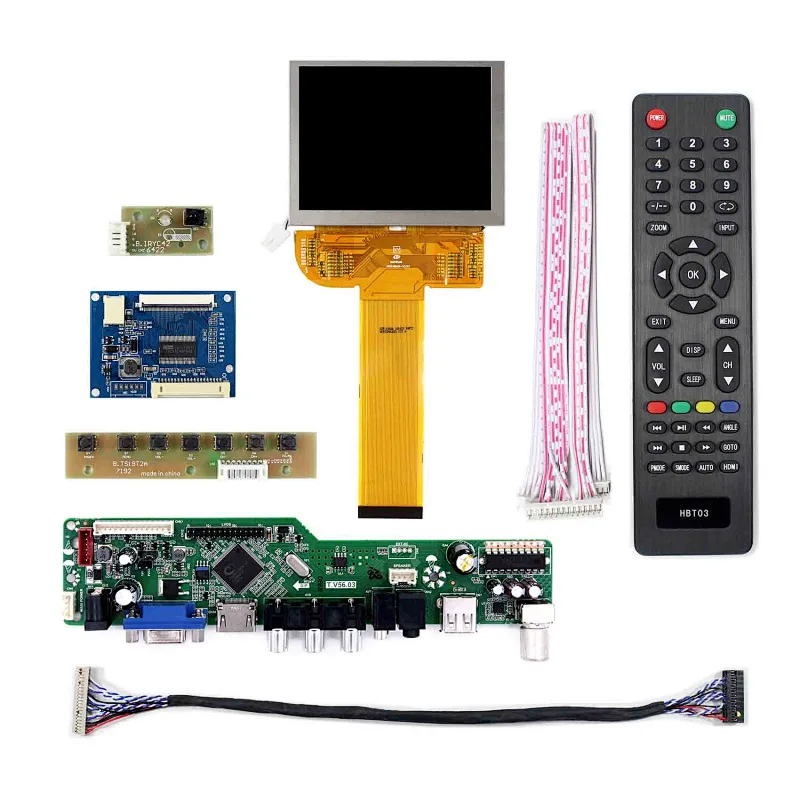

Packing list :
1× HDMI VGA AV USB RF LCD Controller Board T.V56.03
 3.5inchVS035SD1 800X600 LCD Screen

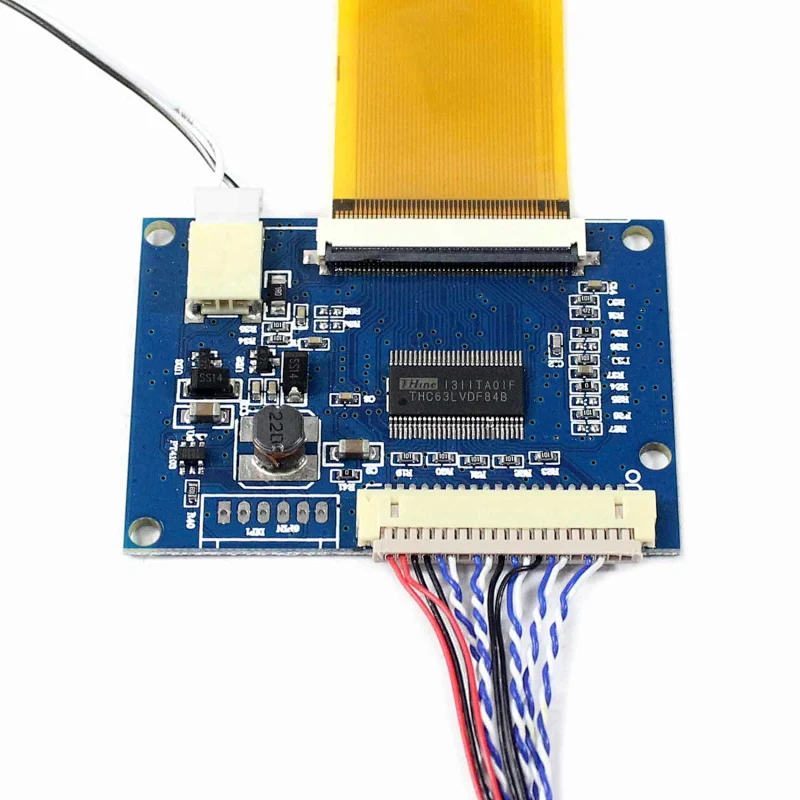

 Converter Board VS-TCON50-V1
 LVDS Cable
 Keyboard With Cable
1× Remote Control (Battery Not included)
